SUS 304 / 316 Tomato Ketchup Sauce Production Line Machinery Mechanized Production
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Type: | Turnkey Processing Line | Dimension(l*w*h): | Adjustable |
|---|---|---|---|
| Weight: | Based On Specific Machines | Capacity: | Customized |
| Application: | Tomato | Power: | 10kw |
| Voltage: | 220V/380V | Function: | Multifunctional,tomato Paste Processing |
| Feature: | High Efficiency | Usage: | Industrial Usage |
| High Light: | Tomato Ketchup Sauce Production Line,SUS 316 Sauce Production Line,SUS 304 Sauce Production Line |
||
Product Description
SUS 304/316 Mechanized Production Tomato Ketchup Production Mechinery

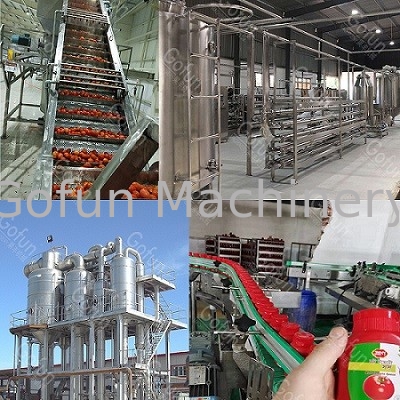

Product description of tomato processing plant
Tomato processing lines are capable of producing a wide range of products, starting from fresh tomatoes and ending with various finished goods. One of the popular products from these lines is tomato paste, which is made through a series of processing steps. Another commonly produced item is tomato juice. The Tomato Juice Processing Line takes fresh tomatoes and transforms them into a final product that can be packaged in barrels or aseptic bags.
The processing line consists of several key components, including a fresh tomato receiving system, a washing system, a sorting system, a crushing system, a pulping and refining system, a filtration system, a concentration system, a sterilization system, and an aseptic filling system. These components work together to ensure the tomatoes are processed efficiently and converted into the desired form, such as paste or juice. The aseptic filling system is responsible for packaging the final product in sterile bags or barrels.
Moreover, the ketchup in barrel sterilization bags can be further processed into various other products, such as sauces and juices. These products can be packaged in sachets, stand-up pouches, metal cans, PP containers, bottles, gable tops, and other suitable packaging options. This allows for versatility in the final presentation of the tomato-based goods, catering to different market demands and consumer preferences.
Gofun not only provides tomato processing equipment for your factory, but also can provide his one-stop solution from A to Z, including:
- Technical consultation
- customized proposal design
- Equipment manufacturing
- On-site installation commissioning and training
- 1 year after-sales service warranty
- Lifetime service
- package design and purchase
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
The raw material can be fresh tomato, tomato paste, etc. And the final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomato, etc.
For the final package, it can be an aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.
Project Case
Ghana
Our tomato processing production lines have been produced in many African countries. For example, Ghana's 5 tons/hour tomato paste processing line, the entire equipment production line from tomatoes to tomato paste packaging has won satisfaction and praise from consumers.
Ethiopia
The tomato blending and canning line in Ethiopia is one of the company's many success stories.The tomato blending and canning line is an automated production line specially used for the production of tomato products. It is used to blend, fill and seal fresh or processed tomato products in canning containers. From the design of the factory plan to the implementation of the project, and the final installation and commissioning, our customers are very satisfied.
Our Services for tomato processing plant
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technical support
