Tomato Paste Industrial Pasteurizer / Fruit Jam Processing Sterilizer Machine
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | CE, ISO |
| Model Number: | GFM-SS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per year |
|
Detail Information |
|||
| Material: | 304/316 Stainless Steel | Application: | Juice, Jam |
|---|---|---|---|
| Warranty: | 12 Months | Voltage: | 380V, Customized |
| Type: | Turnkey Processing Line | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Capacity: | 60 T/d, 150 T/d, 250 T/d, 1500 T/d, Customized | Function: | Juice, Jam, Puree, Pulps Packaging Processing Line |
| Usage: | Industrial Usage | Product Name: | Aseptic Packaging Processing Line |
| High Light: | SUS316 Industrial UHT Sterilizer Machine,Tomato Paste Sterilizer Machine,Fruit Jam Processing Industrial Pasteurizer |
||
Product Description

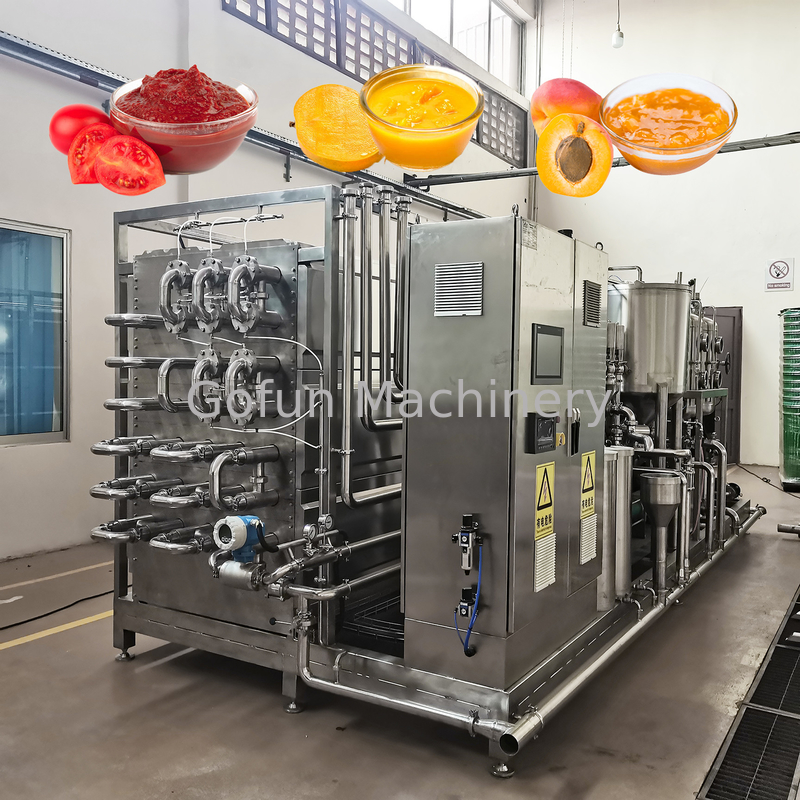

Tomato Paste Industrial Pasteurizer / Fruit Jam Processing Sterilizer Machinery
Specification
| Model | GFM10D1000 | GFM10D3000 | GFM10D5000 | GFM10D8000 |
| capacity(L/H) | 1000 | 3000 | 5000 | 8000 |
| power(KW) | 15 | 25 | 40 | 72 |
| System design pressure(MPa) | 4 | 5 | 10 | 16 |
| Steam consumption(kg/h) | 250 | 750 | 1300 | 2000 |
| Compressed air consumption(m³/h) | 12 | 12 | 12 | 12 |
| Cooling water consumption(t/h) | 15 | 25 | 45 | 70 |
| Material sterilization temperature(℃) | 90-125 | 90-125 | 90-125 | 90-125 |
| Sterilization time(s) | 120-180 | 120-180 | 120-180 | 120-180 |
| Feed temperature(℃) | 60-68 | 60-68 | 60-68 | 60-68 |
| Discharge temperature(℃) | ≤40 | ≤40 | ≤40 | ≤40 |
| Exterior dimension(mm) | 9500X2100 *3000 |
1100X2100 *3000 |
1200X2400 *3000 |
1300X2500 *3000 |
Principle
Components
The equipment for this process includes a material tank, a pump, a tubular heat exchanger, a retainer, a superheated water system, and a control system. The design of the equipment incorporates regenerative heat exchange technology, which enhances heat transfer efficiency and reduces energy consumption. This innovative approach allows for more effective utilization of heat, resulting in improved overall performance and energy savings.
The operating system adopts an image man-machine interactive operation interface, which is convenient for you to intuitively grasp the running status of each component of the device at any time. control system on the device.
| Main configuration of the system | ||
| No. | Item | Brand |
| 1 | PLC | Siemens |
| 2 | Human Machine Interface | Siemens |
| 3 | Steam Reducing Valve | Spirax Sarco |
| 4 | Steam Regulating Valve | Spirax Sarco |
| 5 | Steam Trap Valve | Spirax Sarco |
| 6 | Electric Elements | Schneider |
| 7 | Transducer | Japan Fujifilm |
| 8 | Temperature paperless recorder | YOKOGAWA |
| 9 | Breaker | Schneider |
| 10 | Central relay | Omron |
Features
Combines Italian technology and conforms to Euro standards.
Large heat exchange area, low energy consumption, and easy maintenance.
We adopt mirror surface welding technique and keep smooth pipe joint.
Automatically returns if sterilization is insufficient.
All junctions and joints are steam protected.
Liquid level and temperature controlled in real time.
Independent control panel. PLC and human machine interface.
CIP and Auto-SIP available with sterile bag fillers.
Our Service
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
5. Oversea technical support
6. Oversea equipment maintenance
7. English speaking engineers available to provide technique support.
