Stable Performance Jam Production Line Fruit Juice Processing Machines 50-60 Hz

Stable Performance Jam Production Line Fruit Juice Processing Machines 50-60 Hz

Product Details:

Place of Origin: Shanghai
Brand Name: Gofun
Certification: CE, ISO
Model Number: GFM-MP-001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 60 days
Payment Terms: T/T, Western Union, Visa
Supply Ability: 30 sets per year
Get Best Price Contact Now

Detail Information

Material: 304/316 Stainless Steel Application: Juice, Jam
Warranty: 12 Months Voltage: 380V, Customized
Condition: New Type: Turnkey Processing Line
After-sales Service: Engineers Available To Service Machinery Overseas Capacity: 60 T/d, 150 T/d, 250 T/d, 1500 T/d, Customized
Function: Juice, Jam, Puree, Pulps Packaging Processing Line Feature: High Efficiency
Usage: Industrial Usage Product Name: Aseptic Packaging Processing Line
High Light:

tomato sauce plant machinery


fruit jam processing machinery

Product Description

SS304 Complete Paste/ Jam/ Sauce/ Puree Mixing and Packaging Line Easy Operation




The Paste/ Jam/ Sauce/ Puree mixing and packaging production line is mainly composed of high-speed sugar-dissolving equipment, filtering equipment, mixing equipment, weighing equipment, homogenization, degassing, sterilization and other equipment. The entire line is designed for beverage jam blending according to international quality standards.

Stable Performance Jam Production Line Fruit Juice Processing Machines 50-60 Hz 0



Model GFM-MP-001
Volume of Mixer 500L

Inside Material



Electrical heating(6mm)

Steam heating(8mm)

Jacket Material


Electrical heating(6mm)

Steam heating(8mm)

Outside Material



Electrical heating(3mm)

Steam heating(4mm)

Paddle Material SUS316L
Homogenizer Speed(SIEMENS) 0-3400 r/min
Homogenizer Power 5.5kw
Speed of Scraping Plate Blender(frequency converter) 0-63 r/min
Blender Power(SIEMENS) 2.2kw
Temperature of Mixer ≤100 °C
Pressure of Jacket normal pressures





Main Equipment


  1. Mixing and Preparation Tank- The mixing and preparation tanks are widely used in the food and beverage industries which is mainly used for the mixing and preparation of the different kinds of products, such as the fruit juice, paste, sauce and etc.
  2. Sugar-Melting Tank- is mainly used for high-speed solution to dissolve sugar, coconut milk also applies to the fine, the quantitative starch and other additives, such as powdered or granular materials dissolved. While playing dissolution, heating and so on. Dissolution speed, high efficiency, is one of the necessary equipment for the food and beverage production. Easy to operate, corrosion resistance, strong production capacity, easy to clean and so on.
  3. Homogenizer- widely used in the production of fruit juice drinks, dairy products, cosmetic products and medicine products. It is used for making the liquid products to be high pressed and refined to produce the more mixed and well-proportioned products.
  4. Vacuum Deaerator is also called degassing pot, mainly used in degassing the fruit juice in vacuum to prevent the oxidization and turning brown, at the same time, removing the gas attaching to the suspended particulates, stopping the particles upping, improving the looking, reducing bubbles in high temperature sterilizing and filling, and reducing the corrosion. Degasser can also be used in producing liquid milk, and beverage contenting milk.
  5. Bottle rising, filling and capping monoblock- The washing, filling and capping machine is mainly used in hot filling of tea and fruit juice drink. The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. The machine adopts block bottle-neck hanging work state design, and filling valve rise-drop design. It's adopt man-machine interface touch-screen, PLC, transducer etc. The drink material parts adopt the SUS304 stainless steel. The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element and etc. are imported from famous international manufacturer.
  6. Water immersion type pasteurizing and cooling tunnel- a pasteurization equipment specially designed for filling or packaging products such as dairy products, juices, beverages, beer, foods, condiments, and so on. The equipment is an ideal equipment for the purpose of prolonging the shelf life of the materials through sterilization, heat preservation and cooling, and is also a necessary secondary sterilization equipment for the automated production line. The corresponding high-precision automatic control system can be configured according to the requirements of customers.


Our Advantages


1. Professional technical design, flow chart, factory layout, equipment drawing design, guide and other support

2. Manufacture of the complete production line equipment;

3. Deliver equipment, arrange engineers to install and debug in the customer's workshop;

4. Train your workers to run each device until the final product comes out.


Company Information


Gofun Company provides the turn-key solution for not only the tomato paste production line but also the processing and packaging lines for apple, pear, peach, mango, and apricot and other fruits & vegetables, and has received wide spread praises from customers in both the domestic and overseas markets. The machines have already been exported to all over the world including the Asian countries, African countries, South American countries and even European and American countries. Gofun Company aim to create the outstanding food machinery and contribute to the world's agricultural industry. We sincerely committed ourselves to a brilliant prospect and mutual benefit relationship with all of the people and friends from Worldwide!


Business Type Manufacturer Country China
Main Products Turn Key Solution for Fruit & Vegetable Processing and Packaging Complete Line Capacity 30 sets per year (whole line)
Established Year 2009 Main Market Africa, South Ameria, Asia, Europe

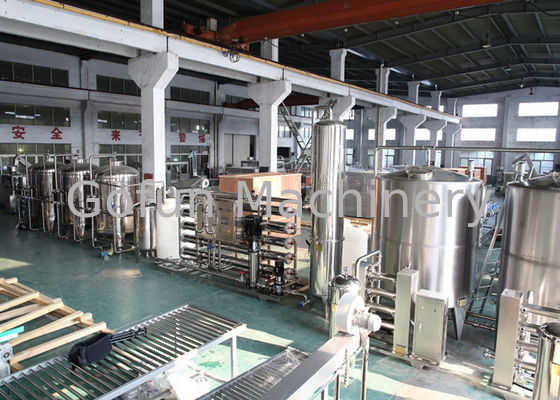

Workshop Show
