SS304 Automatic Concentrated Pineapple Juice Production Line 15T/Day
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Gofun Machinery |
| Certification: | ISO9001, CE |
| Model Number: | GFM-FPL-GPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard packaging for shipping |
| Delivery Time: | About 120 days after advanced payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets per year |
|
Detail Information |
|||
| Product Name: | Pineapple Processing Line / Production Equipment | Application: | Fresh Pineapple |
|---|---|---|---|
| End Products: | Pineapple Juice, Concentrated Juice, Beverage Dried Fruit, Etc | Packaging: | Aseptic Bag, Metal Can, Glass Bottle, PET Bottle, Etc. |
| Warranty: | One Year | Material: | SS 304, 316 Food Standard |
| Capacity: | 1 ~ 20T/h, 15T/day ~ 1500T/day, According To Customers | After-sales Service: | Engineers Available To Service Overseas, Commissioning And Training |
| High Light: | 15T/Day Pineapple Juice Processing Line,SS304 Concentrated Pineapple Juice Production Line,Automatic Concentrated Pineapple Juice Production Line |
||
Product Description
Complete Automatic Pineapple Juice Production Line SS304 Food Standard Material
Description
Pineapple products are popular all over the world. The pineapple processing production line provided by Gofun Machinery can produce various final products from fresh pineapples. The final products can be juice, concentrated juice, beverages, jam, dried pineapple, etc. Packaging can be aseptic bags, sachets, stand-up pouches, metal cans, PP containers, PET bottles, glass bottles, roofed bottles, etc. The most popular industrial pineapple processing production lines are:
1. Pineapple Juice Concentration Processing Line
2. Pineapple Juice Processing Line
3. Pineapple Beverage Processing Line
4. Dried Pineapple Processing Line
| Raw material | Fresh pineapple |
| End product | Concentrated juice or clear juice, beverage, jam, dried fruit, etc |
| Capacity | 3 tons / day -1500 tons / day, according to customer |
| Juice yield | 40~50% |
| Initial sugar content | About 14% Brix |
| Terminal sugar content | 58-60 Brix |
| Product packaging | Aseptic bag, glass bottle, PET bottle, Metal can and etc |
Advantages
The pineapple processing line from Shanghai Gofun machinery company is running with high effective, water saving, high extracting rate, stable quality control for final product, safety control for operators, etc.

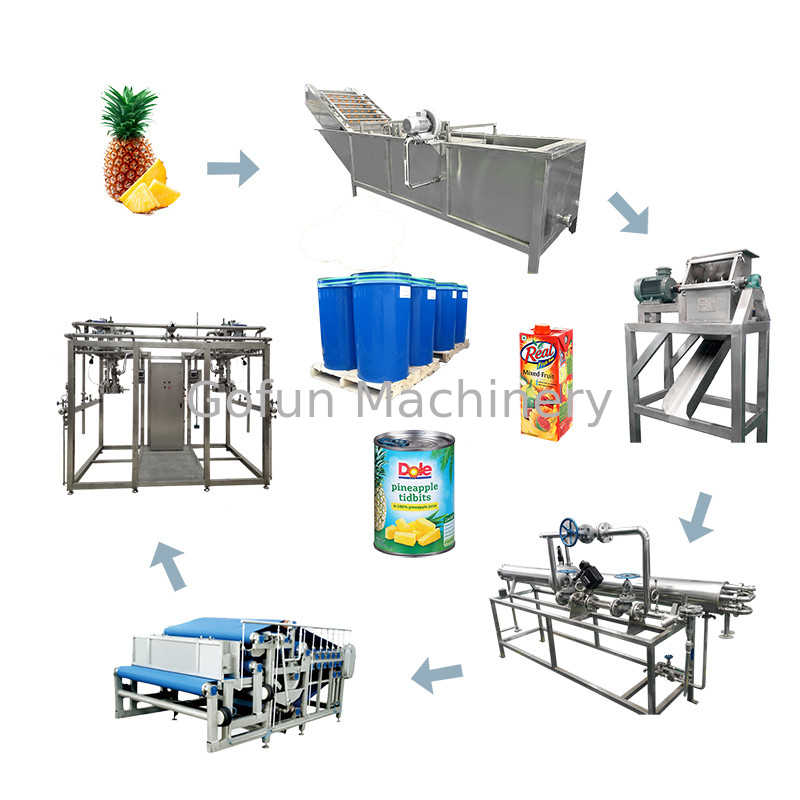

A pineapple processing production line includes cleaning, sorting, crushing, belt juice extraction, enzymatic hydrolysis, filtration, evaporation, sterilization, and filling. The entire production line is designed for pineapple products according to international quality standards.
Features
1. High processing capacity: varied from 20 T/day to 1500 T/day.
2. Multiple use: the processing line can deal with similar characteristics of fruits.
3. Automatic disinfection liquid concentration control system: effectively guarantee the sterilization effect and control the disinfection residue.
4. High output: Tubular type pasteurizer is used to improve the high output percentage of pineapple.
5. High efficiency: The high-efficient belt juice extractor is adopted, which improves the juice extraction efficiency and yield.
6. Energy-saving: Automatic PLC controlled production process to reduce the labor intensity and improve production efficiency.
7. Low-temperature vacuum evaporation: reduce the flavor substances and nutrient losses.
8. Energy recovering: Various energy recovery measures are adopted, which improves the energy utilization efficiency and greatly reduces the production cost.
9. Healthy and safety: UHT sterilizer and aseptic filling machine, isolated from the pollution of bacteria, ensure the safety of the food and extend the shelf life of the product.
10. Label-saving: The complete production line is equipped with a self-contained CIP (clean-in-place) system, which reduces labor intensity and guarantees a high level of hygiene.
Flowchart
Pineapple Juice Concentration Processing Line
FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ BELT TYPE JUICE EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Pineapple Juice Processing Line
FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ BELT TYPE JUICE EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Pineapple Beverage Line
PINEAPPLE CONCENTRATION⇒ BLENDING SYSTEM ⇒ STERILIZING ⇒ FILLING ⇒ PASTEURIZING TUNNEL ⇒ PACKAGING
Dried Pineapple Processing Line
FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CUTTING ⇒ BLANCHING ⇒ DRYING ⇒ PACKING
Our Services
Pre-Sales Service: Our engineers design and produce an equipment list for customers according to their requirements, capacity, local voltage, and workshop. We design the production process for customers, including details such as water supply, power supply, steam, and other aspects. All materials are made of SUS304, ensuring the highest quality. Before shipment, the final customer can come to test the equipment.
On-purchase Service: All machines are manufactured according to the contract and drawings. After receiving full payment, we will arrange for shipment in the shortest possible time. All exported machines are packaged in wooden crates. We will send installation instructions together with the machines.
After-sales service: After machines reach buyer’s workshop, we will arrange our engineers to install. The quality guarantee is one year. We will supply whole-life service.
