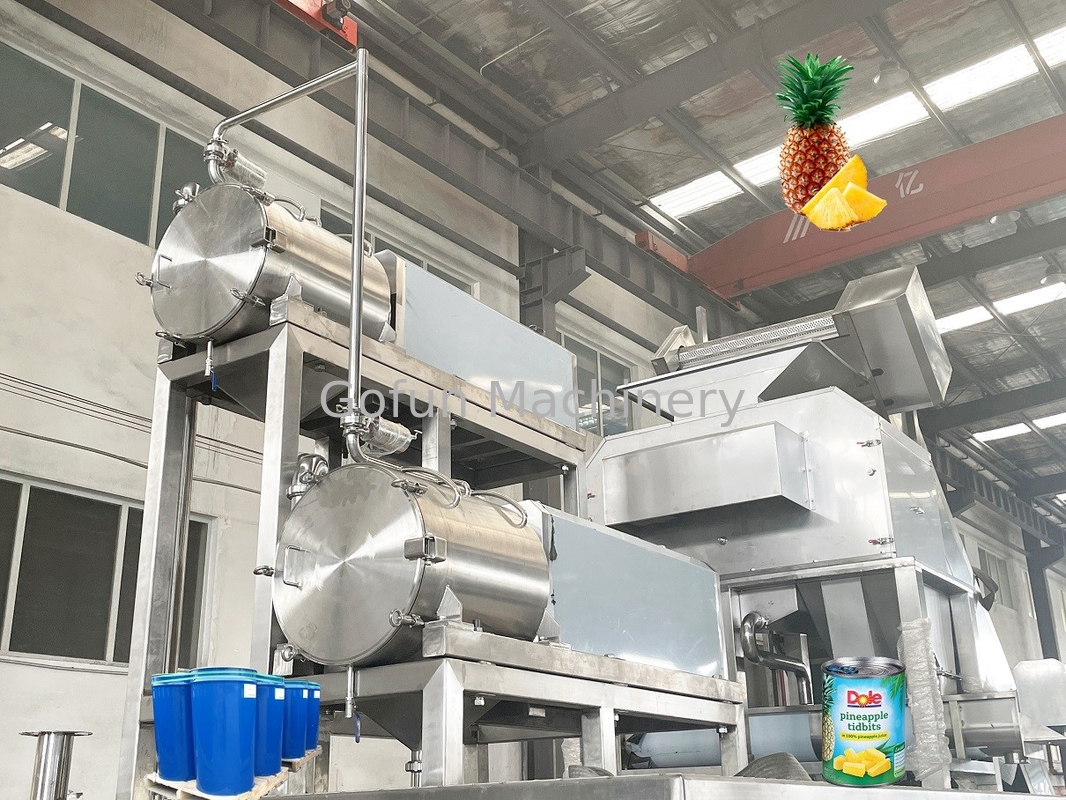

5T/H High Performance Pineapple Juice Processing Line SUS 304

Automatic 25~600 T/D Pineapple Fruit Juice Processing Line from A to z

Automatic 25~600 T/D Pineapple Fruit Juice Processing Line From A To Z

Description

Revolutionizing Pineapple Processing: Innovative Machinery for Diverse Pineapple Product Range
The pineapple processing line is meticulously crafted to convert fresh pineapples into an array of final products, including pineapple slices, pineapple juice, pineapple pulp, and pineapple jam. This comprehensive processing line comprises crucial components, such as a pineapple receiving system, a washing system, a peeling and coring system, a slicing system, a juicing system, a pulp extraction system, a refining system, a filtration system, a concentrating system, a sterilizing system, and a packaging system.
By adhering to this systematic approach, superior-quality pineapple products are derived and can be packaged in various formats tailored to customer preferences and market trends. These products are expertly packaged in cans, bottles, tetra packs, pouches, or other suitable packaging options, ensuring the preservation of their freshness and flavor for consumers to savor.

Application

Shanghai Gofun machinery company could provide pineapple processing lines to produce different pineapple products, such as pineapple juice, dried pineapple and etc. In pineapple processing, instead of traditional membrane pressing juice extractor, Gofun invited the belt type juice pressing system which could get grape juice with higher and stable quality. The package can be aseptic bags, sachet, stand-up pouch, metal can, PP container, PET bottle, glass bottle, gable top, etc.

Flowchart

Pineapple Juice Concentration Processing Line

FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ BELT TYPE JUICE EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Pineapple Juice Processing Line

FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ BELT TYPE JUICE EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Pineapple Beverage Line

PINEAPPLE CONCENTRATION⇒ BLENDING SYSTEM ⇒ STERILIZING ⇒ FILLING ⇒ PASTEURIZING TUNNEL ⇒ PACKAGING

Dried Pineapple Processing Line

FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CUTTING ⇒ BLANCHING ⇒ DRYING ⇒ PACKING

Our Advantages

1. Large Processing Capacity: Ranging from 20 tons/day to 1500 tons/day, catering to diverse production needs.
2. Versatile Functionality: Capable of processing fruits with similar characteristics, ensuring adaptability.
3. Automated Disinfection Control: Features an automatic disinfection liquid concentration control system for optimal sterilization and residue control.
4. Enhanced Output: Utilizes a tubular type pasteurizer to boost pineapple output percentages.
5. Optimized Efficiency: Incorporates an efficient belt type juice extractor to enhance juice efficiency and output percentages.
6. Energy-Efficient: Implements an automatic PLC-controlled production process to reduce labor intensity and enhance production efficiency.
7. Low-Temperature Evaporation: Utilizes low-temperature vacuum evaporation to minimize flavor and nutrient losses.
8. Energy Recovery: Various energy recovery methods are employed to increase energy utilization and significantly reduce production costs.
9. Health and Safety Focus: Utilizes UHT sterilization and aseptic filling machines to safeguard against bacterial contamination, ensuring product safety and prolonged shelf life.
10. Cost-Effective and Hygienic: Incorporates a self CIP system within the production line to streamline operations, reduce labor intensity, and maintain high sanitation standards.

Question & Answer

Q: Any guarantee of the machines?

A: Yes, 1-year free maintenance and life time paid service.

Q: What is the package of the machines?

A: Suitable for international shipment, for example: wrapped with plastic film and put in wooden cases.

Q: Shipping port?

A: Shanghai, other ports available if required.

Q: Transportation

A: Shipping by sea. Air available if required by customer.
