Place of Origin | Shanghai |
Brand Name | Gofun |
Certification | CE, ISO |
Model Number | GFM-PM |
.

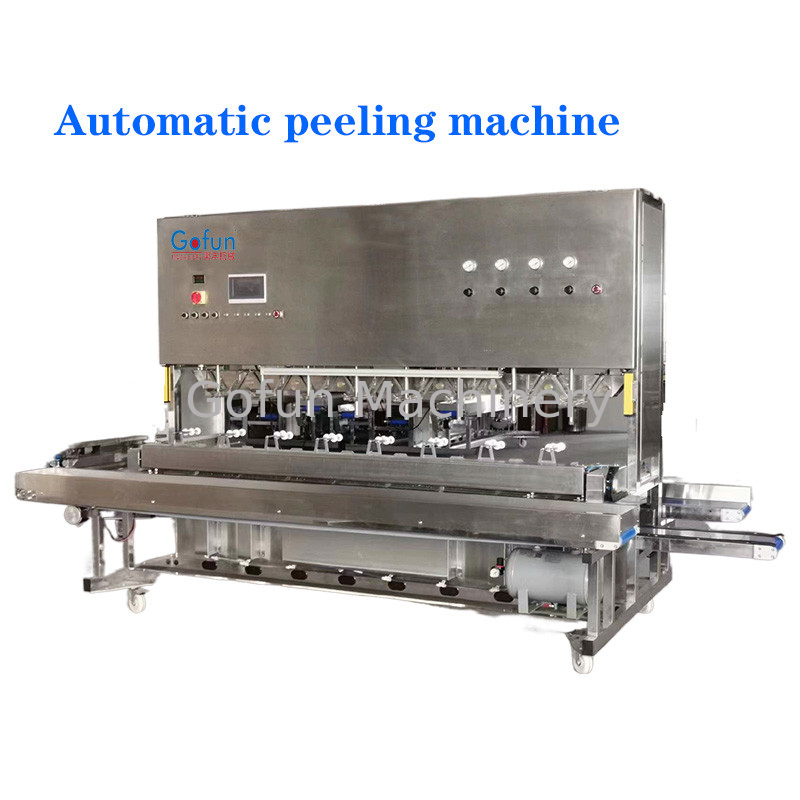

Specializing in a wide range of products, the company offers fruit and vegetable pre-processing machinery, extractors, pulping equipment, evaporation and sterilization systems, aseptic filling systems, blending and packaging machinery, as well as CIP cleaning systems. Their comprehensive fruit and vegetable blending production line equipment is capable of handling capacities ranging from 10 to 1500 tons per day, accommodating various fruits and vegetables such as tomatoes, mangoes, apples, pears, citrus fruits, medlars, peaches, apricots, strawberries, pineapples, coconuts, pumpkins, celery, and more.
This versatile machinery enables the production of NFC fruit juice, jams, fruit juice beverages, milk beverages, carbonated drinks, tea-based beverages, milk tea ingredients, fruit wines, fruit vinegars, fruit powders, and a variety of related products.
Indicator items | Technical parameters/standard design requirements | Notes |
Effective production capacity | >1000Kg/h | |
Fruit shape and size | Length 70-260mm; Diameter 25-110mm | |
Board material | SUS304 stainless steel | Complete machine more than 90% |
Loss rate | 15%~20% | Finished product rate 80-85% |
Peeling thickness | 1.5mm ~2.7mm | |
Blade specifications | Stainless steel 100mm*20mm*0.8mm | Length, width, thickness |
Production | Applicable to mango 400g/piece, peeling output is about 1000KG per hour. | |
Equipment cleaning | Manual cleaning | |
Rated power | ≤2.8kw; single-phase three-wire AC220V/50Hz | Mitsubishi PLC |
Water consumption | Tap water L/min | |
Compressed air | Air pressure 0.5Mpa; Exhaust volume>0.1/m3/min | |
Dimensions | 3020mm*1460mm*1980mm | |
Net weight | 400 KG | |
Application range | Mango Potato Radish Papaya |
