ISO Certified Passion Fruit Processing Machine with CIP Cleaning

‌

The Industrial Passion Fruit Processing Line: A Flexible Process Flow

Raw Material Management:

Cleaning & Sorting: Fresh passion fruits are cleaned using wave-type and brush washers to remove impurities, then sorted based on size, ripeness, and quality.

Preprocessing:

Peeling & Seed Removal: Fruits are peeled and deseeded.
Cutting & Pulp Extraction: Fruit slicing is followed by pulp extraction and storage in cold conditions.

Versatile Processing:

Juice Production: Extracted juice is filtered, sterilized, and bottled.
Jam Making: Pulp is combined with sugar and acidulants, cooked, and concentrated into jam.
Dried Fruit Production: Sliced fruits are dried using PLC-controlled drying equipment.
Wine Crafting: Juice fermentation process results in wine, with temperature and duration carefully controlled.
Preserved Fruit Production: Pulp is soaked in sugar and dried to create preserves.

Packaging & Storage:

Grading & Packaging: Automated packaging machines grade and seal products.
Metal Detection & Coding: Packaged items undergo metal detection and are labeled with production details.

Additional Features:

Chip Production: The line is capable of making fruit/vegetable chips and crispy slices.
Automation & Sanitation: Modular design with 304 stainless steel components ensures high levels of automation and adherence to food safety standards.

This adaptable line efficiently manufactures a variety of passion fruit products to meet diverse market requirements.

Company Information

Shanghai Gofun Machinery Co., Ltd. is dedicated to providing comprehensive turnkey solutions for production lines in the food, fruit and vegetable, dairy, and beverage industries. Gofun is widely recognized in the sector, particularly for its research and development efforts, technological innovations, and energy-efficient optimization practices and expertise. The production equipment designed for processing tomato sauce, apples, pears, peaches, melon seeds, mangoes, and more are top sellers in China and have been exported to Southeast Asia, Africa, the Middle East, Eastern Europe, and other global regions. Gofun consistently receives high praise from the domestic market, as well as from Europe, the Americas, Africa, Southeast Asia, and beyond.

Description

Gofun Machinery is committed to build a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the passion fruit processing production line are basically imported world famous brands or domestic first-line brands, so the quality and equipment stability is relatively high, and the mechanical after-sales service has always been better in the industry.

Features

Shanghai Gofun machinery company offers all kinds of passion fruit processing line.In passion processing, the destoning machine is used for separating the pulp and shell, and pulper & refiner machine is used for separating the seed and pulp if customer does not want to keep the seed inside pulp. The package can be aseptic bags, sachet, stand-up pouch, metal can, PP container, PET bottle, glass bottle, gable top, etc.

Passion fruit is a popular fruit in many regions around the world. Gofun can supply complete passion fruit processing line for the production of cloudy (with seed) and clear juice (without seed), as well as puree. In these last decades we've installed peach juice production lines in many countries.

Main Equipment

Washing and Sorting Machine
Various types of washing machines are available, including bubble washers, spray washers, brush washers, and more. The type and model can be tailored to meet specific customer requirements.

Destoning Machine
The GFM-FD series fruit destoning machine is primarily utilized for separating pulp from the shells of passion fruits.

Pulper & Refiner
This equipment is suitable for processing a variety of fruits such as tomatoes, peaches, apricots, mangoes, apples, and more. It functions to separate fruit pulp from waste by pulping and seed removal.

Evaporator/Concentration
There are two main types of evaporators: forced circulation evaporators and falling film evaporators. The forced circulation evaporator is used for concentrating high-viscosity products like fruit pastes (e.g., tomato paste, peach paste). Conversely, falling film evaporators are ideal for concentrating low-viscosity products like fruit juices and milk.

Sterilizer
The sterilization temperature and duration are adjustable with this machine. It can heat fruit or vegetable juice/paste/pulp to high temperatures (approximately 115°C), maintain it for 30 seconds, and swiftly cool it to ambient temperature. The UHT sterilizer helps preserve the taste and nutritional content of fruits or vegetables effectively.

Aseptic Filler
The automatic aseptic filling machine is specifically designed for liquid aseptic filling, offering a compact footprint, high operational stability, and user-friendly operation. Aseptic filling machines are commonly used for packaging fluid foods like juices, pulps, and jams aseptically. These products can be stored at room temperature for over a year, eliminating the need and risks associated with cryogenic refrigerated transportation.

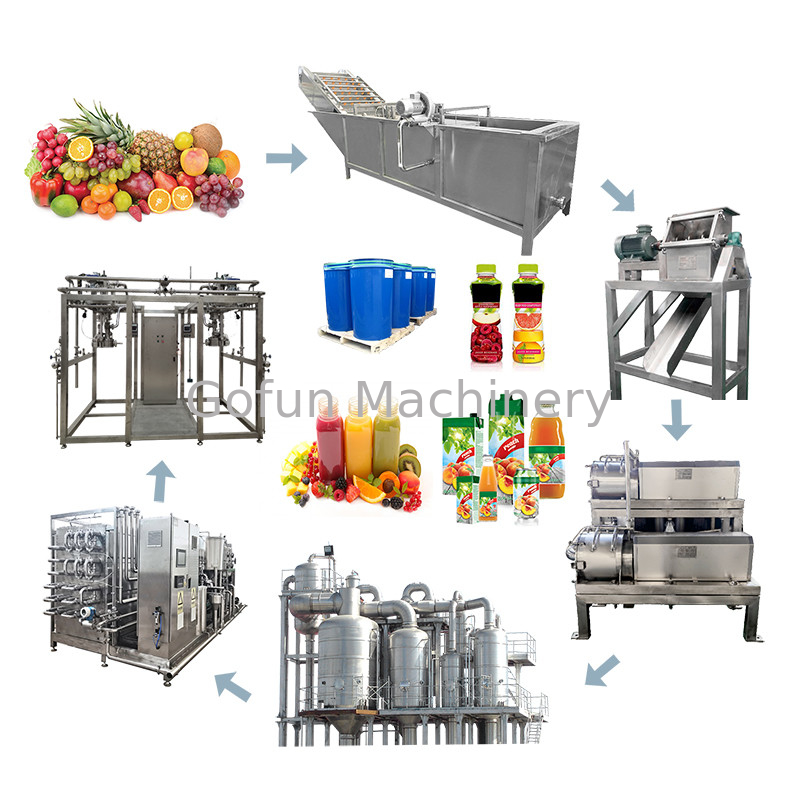

Flowchart

Passion Fruit Juice (Concentration) Processing Line (without seed)

• Juice

FRESH PASSION FRUIT ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING ⇒ PREHEATING (OPTIONAL) ⇒ PULPER & REFINER ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

• ​Juice concentrate

FRESH PASSION FRUIT ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING ⇒ PREHEATING (OPTIONAL) ⇒ PULPER & REFINER ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
