440V Passion Fruit Processing Machine / Fruit And Vegetable Processing Equipment
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Gofun Machinery |
| Certification: | CE, ISO9001 |
| Model Number: | GFM-PFPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets per year |
|
Detail Information |
|||
| Condition: | New, Customized Product | Warranty: | One Year |
|---|---|---|---|
| Voltage: | 220/380/440V, According To Customers | Certificate: | CE Certificate, ISO9001 |
| Type: | Fruit Processing Line, Industrial Use | Material: | Food Standard Stainless Steel 304, 316, Accourding To Customer |
| Capacity: | 1 ~ 20T/h, 20T/day ~ 1500T/day, According To Customers | Application: | Passion Fruits, Fruit With Similar Characteric |
| Product Name: | Passion Fruit Processing Line / Procduction Machine | End Products: | Puree, Pulp, Juice, Syrup, Jam, Beverage, Etc |
| Advantage: | Good Performance, Energy Saving, High Quality And Better After-sales Service | Feature: | High Efficiency, Easy Operation, Stable And Reliable Equipment, High Capacity |
| High Light: | passion fruit pulping machine,passion fruit processing machine |
||
Product Description
Passion fruit puree syrup processing juice / pulp industrial production line
Description
Shanghai Gofun machinery company, a professional passion fruit processing line manufacturer and exporter in China, which can provide turnkey solution and technical support for passion fruit processing line with all kinds of package. Passion fruit processing line can produce from fresh passion fruit to different kinds of final product. The final product can be fruit pulp, puree, clear juice, cloud juice, juice concentrate, beverage, syrup, jam, dried fruit and etc. For the package, it can be aseptic bags, sachet, stand-up pouch, metal can, PP container, PET bottle, glass bottle, gable top, etc. All kinds of passion fruit product are very popular all over the world.
Passion fruits are round or oval. They can be yellow, red, purple, and green. The fruits have a juicy edible center composed of a large number of seeds. The fruit is a source of carbohydrates, carotene, vitamin C, iron, magnesium, phosphorus, potassium, copper, fiber, and protein. The part of the fruit that is used (eaten) is the pulpy juicy seeds. Passion fruits can also be squeezed to make juice. The amount of juice in passion fruits is 25–40%.
Passion fruit processing line can produce from fresh fruit to different kinds of final product. The final product can be puree, paste, pulper, juice, beverage, juice concentrate, syrup and etc. For the package, it can be aseptic bags, sachet, stand-up pouch, metal can, PP container, PET bottle, glass bottle, gable top, etc. All kinds of products are very popular all over the world. The most popular industrial processing lines are:
1. Passion Fruit Juice (Concentration) Processing Line (without seed)
2. Passion Fruit Pulp Processing Line (with seed)
3. Passion Fruit Pulp Processing Line (without seed)
4. Passion Fruit Beverage Line
| Raw material | Passion fruit |
| End product | Pulp, puree, jam, juice, beverage, etc. |
| Processing capacity | From 3 T/day to 1500 T/day (raw material) |
| Juice yield | 40% raw fruit (60% as waste, peels and seeds) |
| Fruit consistence | 15-20 Brix |
| Product consistence | 35-70 Brix for concentrated juice |
| End package | Aseptic bag, metal can, glass bottle, PET bottle, etc. |
Advantages
Passion fruit processing line including washing, sorting, destoning, preheating, pulping & refining, evaporating, sterilizing and filling. The entire line is designed for passion fruit products according to international quality standards.

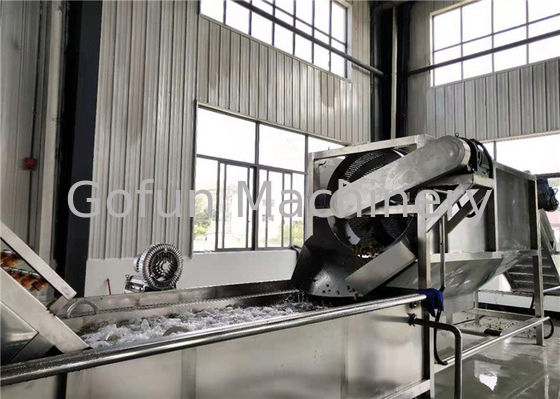

Washing and sorting: Different types of washing machine can be offered: bubble washing machine, spray washing machine, brushing washing machine, and etc., types and models are customized according to the customer requirements and layout.
Destoning: The GFM-FD series fruit destoning machine is mainly used for separating the passion fruits' pulp and shell. Clean and sanitary, easy to operate.
Pulping and refining: High capacity and stable performance; Easy to be operated; Suitable for many different kinds of fruits that are including the passion fruit, tomato, peach, apricot, mango, apple and etc.;
Sterilization: The whole system adopts programmable control. The operating system adopts the image man-machine interface, which is convenient for intuitively grasping the operating status of each component of the device.
Aseptic filling: Preserved in aseptic packages to improve the shelf life.
Aapplication
Shanghai Gofun machinery company offers all kinds of passion fruit processing line.
In passion processing, the destoning machine is used for separating the pulp and shell, and pulper & refiner machine is used for separating the seed and pulp if customer does not want to keep the seed inside pulp. The package can be aseptic bags, sachet, stand-up pouch, metal can, PP container, PET bottle, glass bottle, gable top, etc.
Shanghai Gofun machinery company can help you produce all kinds of passion fruit products.
Flowchart
Passion Fruit Juice (Concentration) Processing Line (without seed)
FRESH PASSION FRUIT ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING ⇒ PREHEATING (OPTIONAL) ⇒ PULPER & REFINER ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM (⇒ EVAPORATING ⇒) STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Passion Fruit Pulp Processing Line (with seed)
FRESH PASSION FRUIT ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Passion Fruit Pulp Processing Line (without seed)
FRESH PASSION FRUIT ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING ⇒ PREHEATING (OPTIONAL) ⇒ PULPER & REFINER ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Passion Fruit Beverage Line
PASSION FRUIT PULP/CONCENTRATION ⇒ BLENDING SYSTEM ⇒ STERILIZING ⇒ FILLING ⇒ PASTEURIZING TUNNEL ⇒ PACKAGING
Company Information
Gofun Company provides the turn-key solution for not only the tomato paste production line but also the processing and packaging lines for apple, pear, peach, mango, and apricot and other fruits & vegetables, and has received wide spread praises from customers in both the domestic and overseas markets. The machines have already been exported to all over the world including the Asian countries, African countries, South American countries and even European and American countries. Gofun Company aim to create the outstanding food machinery and contribute to the world's agricultural industry. We sincerely committed ourselves to a brilliant prospect and mutual benefit relationship with all of the people and friends from Worldwide!
| Business Type | Manufacturer | Country | China |
| Main Products | Turn Key Solution for Fruit & Vegetable Processing and Packaging Complete Line | Capacity | 30 sets per year (whole line) |
| Established Year | 2009 | Main Market | Africa, South Ameria, Asia, Europe |
Question & Answer
1. Q: Any guarantee of the machines?
A: Yes, 1-year free maintenance and life time paid service.
2. Q: What is the package of the machines?
A: Suitable for international shipment, for example: wrapped with plastic film and put in wooden cases.
3. Q: Shipping port?
A: Shanghai, other ports available if required.
4. Q: Transportation
A: Shipping by sea. Air available if required by customer.
Our Services
Customer service helps to keep your lines and machinery tuned for optimizing the production
SPARE PARTS
For providing the high level of efficiency to the Customer, we take care with particular attention that our stores are always best furnished, in order to perform the deliveries in the shorter time which is possible for reducing the incidental stops of the plants at the minimum level.
ON SITE ASSISTANCE
Further important investments have been allocated for improving the assistance methods on site, guaranteeing well-timed interventions on the markets in which the installed machinery and the service volume require presence and availability. You can consider your machines' maintenance and performance in good hands.
TRAINING
New resources have been dedicated to improve the theoretical education of the Customer’s employees, concerning the training about production line, supervision and production assistance.
