PLC Control Food Processing Machine Tomato Processing Line Water Cycling

Place of Origin Shanghai
Brand Name Gofun
Certification ISO, CE certification
Model Number GFM-TPL
Minimum Order Quantity 1 SET
Price Negotiable
Delivery Time 90 days
Payment Terms T/T, L/C, Western Union
Supply Ability 20 sets per year
Product Details
Type Turnkey Solution After-sales Service Provided Oversea Technical Support
Material SS 304/316 Stainless Steel Capacity 250 T/d, Customized
Function Tomato Paste Processing Feature PLC Control
High Light

fruit and vegetable processing equipment

,

tomato paste processing line

Leave a Message
Product Description

PLC Control High Efficiency Tomato Processing Line Water Cycling Use



Company Information



Shanghai Gofun machinery company, a professional tomato processing line manufacturer and exporter in China. Which can offer the turn-key solution for different fruits juice, pulp & paste processing complete line with high quality and competitive production lines with daily capacity from 60 tons to 1500 tons and customizations including plant construction, equipment manufacturing, installation, commissioning and production; provide the most optimized implementation plan.Gofun Company provides the turn-key solution for not only the tomato paste production line but also the processing lines for many kinds of fruits & vegetables, like apples, pears, plums, coconuts, mulberries, ect., and has received widespread praises from customers from both the domestic and overseas. Our machines have already been exported to all over the world including the Asian countries, African countries, South American countries and even European countries.



Description



The most popular is tomato paste processing line, which include a complete line of machines which could make fresh tomato to tomato paste with aseptic bag in drum. Tomato paste processing line mainly includes fresh tomato receiving system, washing system, sorting system, extracting system, concentrating system, sterilizing system, and aseptic filling system. Then can get the tomato paste with aseptic bag in drum. And the tomato paste in aseptic bag in drum can be further produced to tomato ketchup, sauces, juice and filled in sachet, stand-up pouch, metal can, PP container, bottle, gable top, etc.



Processing Capacity

(fresh fruit)

60 150 250 500 750 1000 1250 1500

Water Consumption

(t/h)

7 13 22 44 66 88 110 132

Power

(kw)

84 152 412 636 955 1292 1411 1558

Steam Consumption

(t/h)

1.7 3.9 5.2 9.1 15.1 20.2 24.6 29.2
Compressed Air Consumption (t/h) 66.2 66.2 66.2 72.2 72.2 72.2 72.2 72.2
Cooling Water Consumption (t/h) 125 317 407 585 825 1075 1410 1630



Advantages



1. Beautiful appearance, reasonable design of a full set of system stable operation, high efficiency and energy saving, low steam consumption.

2. Material storage pool and product savepoint is not required in the processing.

3. Uninterrupted cycle process.

4. According to customer's technical requirements, choose cold or hot breaking.

5. Forced circulation evaporator, the viscosity of tomato sauce to flow easily evaporated, concentrated short time.

6. Evaporator evaporation temperature is low, Heat is fully utilized, mild tomato sauce is heated, the tube is heated evenly and heat transfer coefficient is high, can prevent the phenomenon of "dry wall”.

7. Using the special structure of the condenser, and in normal operation in the case of the cooling water

temperature 30 ° C even higher.

8. Continuous access to materials, level with the desired concentration can achieve self-control.

9. Tube sterilization and aseptic filling combination synchronized CIP system (self-cleaning)) and SIP (self- disinfection system);

10.No product legacy into the cooling tower.

11.With advanced technology to maximize the energy savings.

12.Integrated water cycle system, the lowest consumption.

13.Complete supervision system, equipped with a control room to monitor each stage of the process.



Related Machine



Tomato Paste/Puree Processing Line

FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING



PRE-TREATMENT

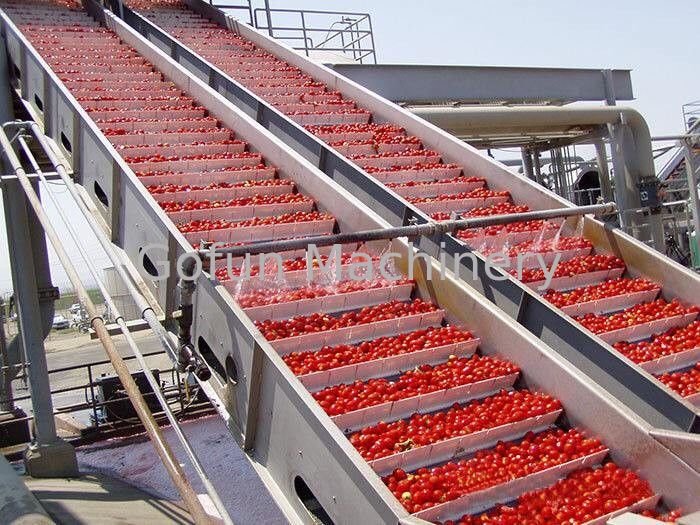

PLC Control Food Processing Machine Tomato Processing Line Water Cycling 0

PASTE EXTRACTION SYSTEM

PLC Control Food Processing Machine Tomato Processing Line Water Cycling 1

EVAPORATING/ STERILIZING / ASEPTIC FILLING SYSTEM

PLC Control Food Processing Machine Tomato Processing Line Water Cycling 2

Our Services



1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design

5. Oversea technical support

6. Oversea equipment maintenance

7. English speaking engineers available to provide technique support
