2000T/D Tomato Concentrated Vegetable Processing Line SS304

2000T/D Tomato Concentrated Vegetable Processing Line SS304

Product Details:

Place of Origin: Shanghai
Brand Name: Gofun
Certification: ISO, CE certification
Model Number: GFM-TPL

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: International standard package for shipping
Delivery Time: 90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Voltage: 380V, 415V, Customized Condition: New, Complete
Warranty: 1 Year After Comissioning Type: One-stop Solution
After-sales Service Provided: Engineers Available To Serve The Machine Overseas Material: 304 Stainless Steel
Capacity: 60 ~ 2000 T/D, Customized Function: Tomato Paste Processing
Feature: High Efficiency Usage: Industrial Usage
High Light:

2000T/D Vegetable Processing Line

,

SS304 Vegetable Processing Line

,

ISO Tomato Vegetable Processing Line

Product Description

Turnkey solution for 2000 T/D Tomato Concentrated Paste Processing Plant High Effiency



Description



Tomato processing line can produce from fresh tomato to different kinds of final product. The most popular is tomato paste processing line, produce from fresh tomato to tomato paste with aseptic bag in drum. That includes: fresh tomato receiving system, washing system, sorting system, extracting system, concentrating system, sterilizing system, and aseptic filling system. Then can get the tomato paste with aseptic bag in drum. And the tomato paste in aseptic bag in drum can be further produced to tomato ketchup, sauces, juice and filled in sachet, stand-up pouch, metal can, PP container, bottle, gable top, etc.



The tomato processing line from Shanghai Gofun machinery company is running with high effective, water saving, high extracting rate, safety quality control for final product, safety control for operators, etc.



2000T/D Tomato Concentrated Vegetable Processing Line SS304 0



· Capacity of fresh tomato can be customized from 60 Ton/D to 1500Ton/D.

· Tomato can be hot crushed or cold crushed.

· Birx of final tomato paste can be designed as customer’s requirement, normally it would be 28-30% or 36-38%.

· Final tomato paste will be filled into aseptic bags in drum. With this kind of package, the shelf time can reach two years in normal temperature.

· All the materials are food standard, the main material is SUS 304 or SUS316. Depends on the requirements.

· Beside aseptic bag filling, we also can provide metal can, small sachet, stand-up pouch, PET/PP container, etc.

· Waste fruit or vegetable from production line can be produced into fertilizer.



Flowchart



2000T/D Tomato Concentrated Vegetable Processing Line SS304 1

FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

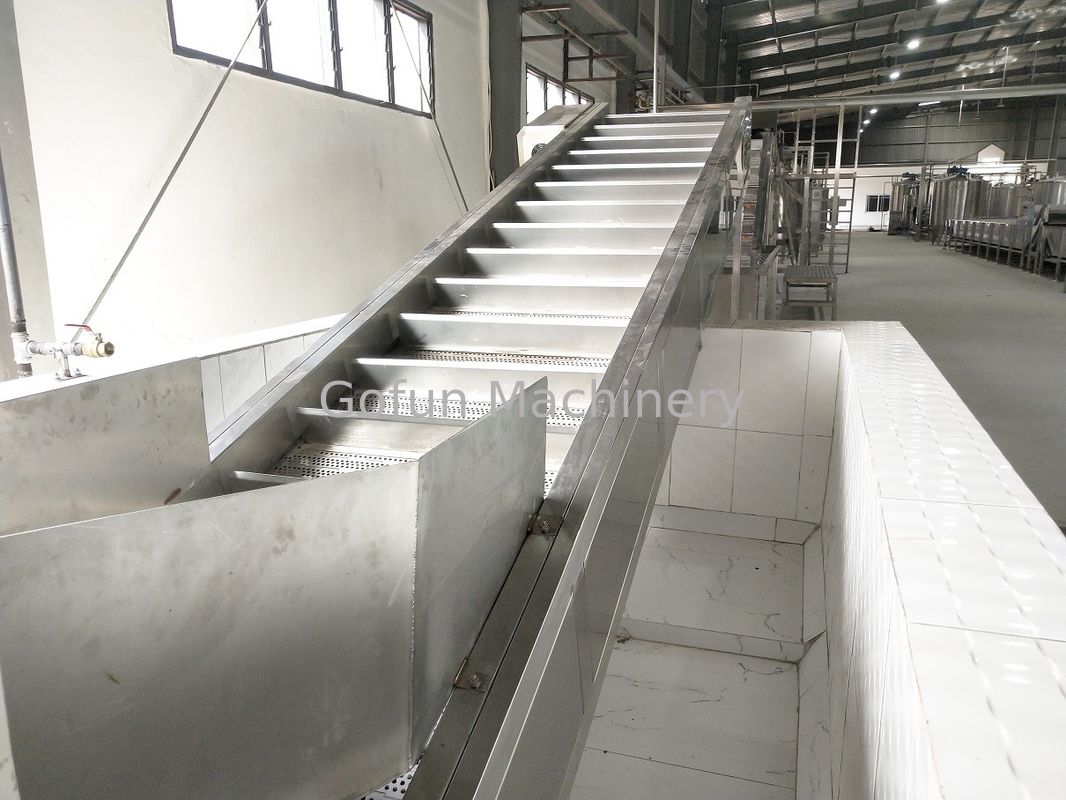

Air-blowing washing machine
  • Totally made by SUS304 Stainless Steel.
  • Produce water bubble by air blower to wash fresh tomatoes.
Sorting Machine
  • Totally made by SUS 304,
  • Used for selecting of the bad tomatoes by workers after washing.

Hammer Crusher

  • Totally made by SUS304 Stainless Steel.
  • It combines Italian technology and conforming to Euro-standard.
  • It is much useful for crushing of many kinds of fruits or vegetables.
Tubular type Pre-heater
  • Totally made by SUS 304 Stainless Steel.
  • It is used to improve the juice yield and protect the color of the product.
Pulping & Refining
  • Totally made by SUS304 Stainless Steel.
  • It combines Italian technology and conforming to Euro-standard.
Force-Circulation Evaporation
  • Totally made by SUS304 Stainless Steel.
  • It combines Italian technology and conforming to Euro-standard.
  • We have single-effect, double-effect, triple-effect and multi-effect evaporators for choice.
Tube-in-tube Sterilizer
  • Totally made by SUS304 Stainless Steel.
  • It combines Italian technology and conforming to Euro-standard.
  • According to different product and requirement, we have Tubular sterilizer, Tube-in tube sterilizer.
Aseptic Bag Filling
  • Totally made by SUS304 Stainless Steel.
  • It combines Italian technology and conforming to Euro-standard.
  • Suitable for filling aseptic bags with different sizes.



2000T/D Tomato Concentrated Vegetable Processing Line SS304 2



Our Services



1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design

5. Oversea technical support

6. Oversea equipment maintenance

7. English speaking engineers available to provide technique support



Company Introduction



Shanghai Gofun Machinery Company is an incorporated company with strong technical research and development capabilities of new products. Through integration of absorbing advanced mechanical design and automation control technology from Europe and America, Gofun Company has achieved a comprehensive technology upgrade in the processing technology and equipment improvements for fruit juice, puree, paste, dried fruits, juice drinks and etc.

We design and manufacture the complete fruit and vegetable processing and packaging line. We provide the best solution and the most optimal designs according to the customer‘ s exact situation and requests. Manufacturing quality equipment is our basic duty, focusing on customers’ every need and providing the most optimal solution is the value we represent.
