600T/D SS304 Food Grade Tomato Ketchup Processing Plant
Product Details:
Place of Origin: | Shanghai |
Brand Name: | Gofun |
Certification: | ISO, CE certification |
Model Number: | GFM-TPL |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Delivery Time: | 90 days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 20 sets per year |
Detail Information |
|||
Voltage: | 380V/415V/440V, Customized | Warranty: | 1 Year |
---|---|---|---|
Type: | One-stop Solution | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Material: | Food Grade 304 Stainless Steel | Capacity: | 10 ~ 600 T/D, Customized |
Application: | Tomato/ Berry Fruit | Feature: | High Efficiency, Low Consumption |
Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump, | After Sales Service: | Field Installation, Commissioning And Training |
After Warranty Support: | E: Video Technical Support, Online Support, Spare Parts, Field Maintainance | ||
High Light: | SS304 Tomato Ketchup Processing Plant,600T/D Tomato Ketchup Processing Plant,PLC Tomato Ketchup Processing Plant |
Product Description
Stainless Steel 304 Food Grade Industrial Tomato Paste Ketchup Production Plant
Description

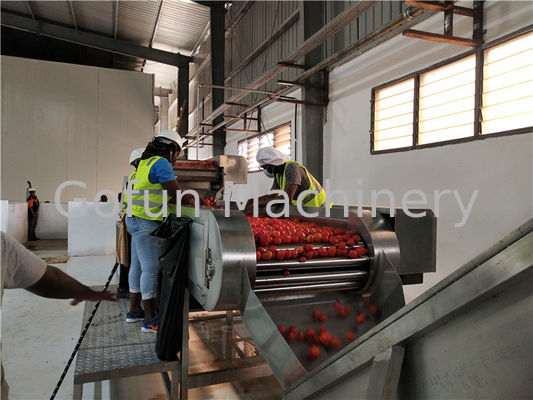

Tomato processing line can produce from fresh tomato to different kinds of final product. The most popular is tomato paste processing line, produce from fresh tomato to tomato paste with aseptic bag in drum. The production line includes: fresh tomato receiving system, washing system, sorting system, extracting system, concentrating system, sterilizing system, and aseptic filling system. Then can get the tomato paste with aseptic bag in drum. Tomato paste filled in aseptic bag can be preserved for at least 1 year at room temperature, which could reduce the transportation and storage cost greatly. And the tomato paste in aseptic bag in drum can be further produced to tomato ketchup, sauces, juice and filled in sachet, stand-up pouch, metal can, PP container, bottle, gable top, etc.
- The raw material can be fresh tomato, tomato paste, etc.
- The final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, etc.
- For final package, it can be aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc
(End product)
(Package type)
Advantages
The tomato processing line from Shanghai Gofun machinery company is running with high effective, water saving, high extracting rate, safety quality control for final product, safety control for operators, etc.
Processing Capacity (fresh fruit) |
60 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 |
Water Consumption (t/h) |
7 | 13 | 22 | 44 | 66 | 88 | 110 | 132 |
Power (kw) |
84 | 152 | 412 | 636 | 955 | 1292 | 1411 | 1558 |
Steam Consumption (t/h) |
1.7 | 3.9 | 5.2 | 9.1 | 15.1 | 20.2 | 24.6 | 29.2 |
Compressed Air Consumption (t/h) | 66.2 | 66.2 | 66.2 | 72.2 | 72.2 | 72.2 | 72.2 | 72.2 |
Cooling Water Consumption (t/h) | 125 | 317 | 407 | 585 | 825 | 1075 | 1410 | 1630 |
Flowchart
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Our Services
1. Professional technical design, flow chart, factory layout, equipment drawing, etc. technical support.
2. Provide related technology consulting and sale service for free.
3. Installation, commissioning and training.
4. All of our equipment with 12 months warrantee, and lifelong after sales service.
Company Information
Shanghai Gofun machinery company, a professional tomato processing line manufacturer and exporter in China. Which can offer the turn-key solution for different fruits juice, pulp & paste processing complete line with high quality and competitive production lines with daily capacity from 60 tons to 1500 tons and customizations including plant construction, equipment manufacturing, installation, commissioning and production; provide the most optimized implementation plan.Gofun Company provides the turn-key solution for not only the tomato paste production line but also the processing lines for many kinds of fruits & vegetables, like apples, pears, plums, coconuts, mulberries, ect., and has received widespread praises from customers from both the domestic and overseas. Our machines have already been exported to all over the world including the Asian countries, African countries, South American countries and even European countries.
