• Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine
  • Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine
Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine

Safety Dried Fruit Processing Equipment / Industrial Tomato Drying Machine

Product Details:

Place of Origin: Shanghai
Brand Name: Gofun
Certification: ISO, CE certification
Model Number: GFM-DFPL

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Delivery Time: 90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Voltage: 380V, Customized Condition: New
Warranty: 1 Year Type: Turnkey Processing Line
After-sales Service Provided: Engineers Available To Service Machinery Overseas Material: 304 Stainless Steel
Capacity: 60 T/d, 150 T/d, 250 T/d, 1500 T/d, Customized Application: Tomato
Function: Tomato Paste Processing Feature: High Efficiency
Usage: Industrial Usage Product Name: Tomato Processing Line
High Light:

dried mango processing machine

,

raisin processing machinery

Product Description

Turnkey solution dried mango processing line fruit production machine



Description



Shanghai Gofun machinery company, a professional dried fruit processing line manufacturer and exporter in China. Which can provide turnkey solution and technical support for dried fruit processing line with different kinds of fruit.

1. Dried mango processing line

2. Dried berry processing line

3. Dried apple / pear  processing line

4. Dried grape processing line

5. Dried peach / apricot / plum processing line



The most popular is dried mango processing line, which include a complete line of machines which could make fresh mango to dried mango with aseptic bag. Dried mango processing line mainly includes fresh mango receiving system, washing system, sorting system, destoning & slicing system, blanching system, sugar melting system, drying system, and packing system. Then can get the dried mango with aseptic bag.



Processing Capacity

(fresh fruit)

60 150 250 500 750 1000 1250 1500

Water Consumption

(t/h)

7 13 22 44 66 88 110 132

Power

(kw)

84 152 412 636 955 1292 1411 1558

Steam Consumption

(t/h)

1.7 3.9 5.2 9.1 15.1 20.2 24.6 29.2
Compressed Air Consumption (t/h) 66.2 66.2 66.2 72.2 72.2 72.2 72.2 72.2
Cooling Water Consumption (t/h) 125 317 407 585 825 1075 1410 1630




Application



Shanghai Gofun machinery company offers all kinds of dried fruit processing line. The raw material can be fresh mango, berry, apple / pear, grape, peach / apricot / plum, etc. And the final product can be dried mango, dried berry, dried apple / pear, dried grape, dried peach / apricot / plum, etc. For final package, it can be aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.



Advantages



The dried mango processing line from Shanghai Gofun machinery company is running with high effective, water saving, high extracting rate, safety quality control for final product, safety control for operators, etc.



Flowchart



Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine 0

Dried Mango Processing Line

FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ PEELING ⇒ SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine 1

Dried Apple/Pear Processing Line

FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ PEELING & DESTONING ⇒ SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine 2

Dried Berry Processing Line

FRESH BERRY ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine 3

Dried Peach/Apricot/Plum Processing Line

FRESH PEACH/APRICOT/PLUM ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING & SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine 4

Dried Grape Processing Line

FRESH GRAPE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ STALK REMOVING ⇒ DRYING ⇒ PACKING



Related Machine



Washing & sorting machine Different types of washing machine can be offered: bubble washing machine, spray washing machine, brushing washing machine, and etc., type and model are customized according to the customer requirements and layout.



Peeling and de-coring machine The machine will pare off the fruit peel and remove the core and seeds, at the same time. Peeling can also be done by manually peeling with a knife or lye.



Slicing This machine has the multifunction to cut the leaf vegetable and the fruit or the root vegetable. Change the blade so that it can cut different shape such as the dices, slices, or the strpis. The thickness can be customized according to your request. This machine is made of 304 stainless steel and has been passed the CE certificates. High efficiency, high quality, and easy to operate and clean.



Fruit blanching machine The fruit blanching machine is mainly used for heating the fruits to have the enzyme inactivation, then it can protect the color of the original fruits. It is widely used in dried fruits production.



The vacuum dipping equipment is mainly used for feeding the sugar and other ingredients into the products by dipping. It is widely used in dried fruits, sliced fruits and other fruit and vegetable processing plant, it can also be used for the dried meat or sliced meat production plant. The vacuum dipping equipment is working under vacuum (0.6-0.85mpa) and the chamber of the tank is with negative pressure, then the materials and ingredients will be easily soften and entering into the products by dipping with a short time.



Vibration type dewatering machine This machine can be used for dewatering, desugaring and feeding the products. It is widely used in the food industry. The machine is with the sieve on the frame and uses the two-vibration motor for vibrating. It is easy operating, less noise, long self-life. Can be easily to be integrating with the automatic production line.

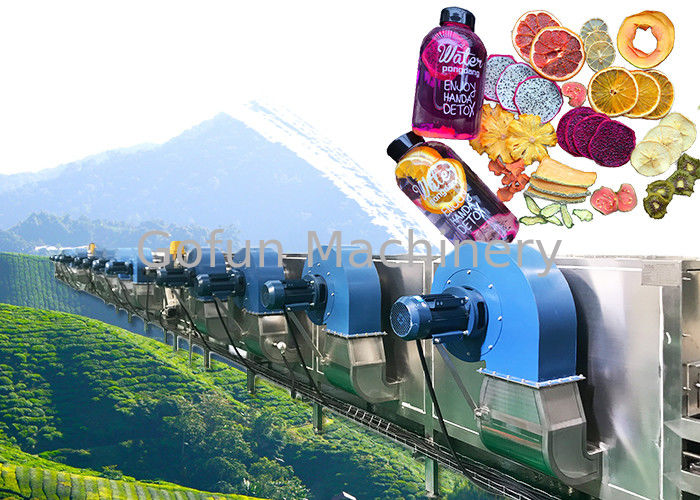

Continuous Fruit &Vegetable drying/ dehydrating machine Guofeng continuous dryer is mainly used for drying various fruits and vegetables, using continuous feeding and discharging. The equipment is divided into three sections, each of which controls the temperature and speed of the material. When the material enters another section of equipment, it will be turned over to ensure the uniformity of material drying. The inside of the drying chamber is heated by steam to ensure that the moisture of the material is fully evaporated while avoiding the phenomenon of being baked and smashed. The steam used in the equipment will be fully utilized and recycled during the production process to ensure unnecessary energy loss.



Our Services



1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design



After-Sales Service



1. Oversea technical support

2. Oversea equipment maintenance

3. English speaking engineers available to provide technique support



Company Information



Shanghai Gofun machinery company, a professional tomato processing line manufacturer and exporter in China. Which can offer the turn-key solution for different fruits juice, pulp & paste processing complete line with high quality and competitive production lines with daily capacity from 60 tons to 1500 tons and customizations including plant construction, equipment manufacturing, installation, commissioning and production; provide the most optimized implementation plan.Gofun Company provides the turn-key solution for not only the tomato paste production line but also the processing lines for many kinds of fruits & vegetables, like apples, pears, plums, coconuts, mulberries, ect., and has received widespread praises from customers from both the domestic and overseas. Our machines have already been exported to all over the world including the Asian countries, African countries, South American countries and even European countries.

Safety Dried Fruit Processing Equipment / Industrial  Tomato Drying Machine 5
