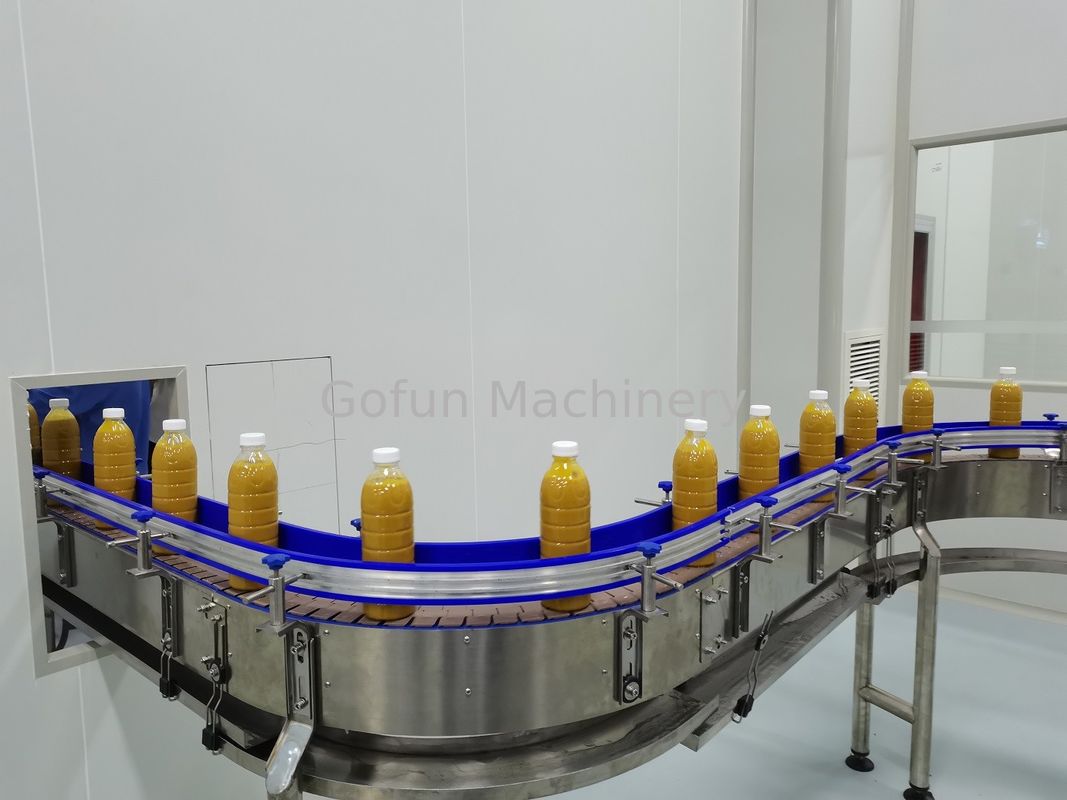

Industrial Mango Juice Production Line 20T/H All In One

Industrial Mango Juice Production Line 20T/H All In One

Product Details:

Place of Origin: Shanghai
Brand Name: Gofun
Certification: CE, ISO certificate
Model Number: GFM-MPL

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International standard package for shipping
Delivery Time: 45~90 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100 sets per year
Get Best Price Contact Now

Detail Information

Voltage: 220/380/440V, According To Customers Certification: CE/ ISO9001
Type: Turnkey Processing Line From A To Z Material: SUS304/ SS316
Capacity: 1 T/h, 5 T/h, 10 T/h, 20 T/h Product Name: Mango Pulp Puree Processing Line
Warranty: 1 Year Application: Mango
High Light:

Mango Juice Processing Line 20T/H


Industrial Mango Juice Processing Plant


SUS304 Mango Pulp Processing Machinery

Product Description

Industrial 20T/H Mango Juice Production Line All In One Service
Product description of the mango processing line
The mango processing line can produce fresh mango in different kinds of final products. Popular products such as mango pulp, mango puree, mango concentrated paste, mango sauce, mango juice, mango drink processing line, put a sterile bag in the drum to make fresh mango in the final product.
The processing line mainly includes fresh mango receiving system, cleaning system, sorting system, pitching system, preheating system, pulping and refining system, filtration system, concentration system, sterilization system, aseptic filling system. You can then put the sterile bag in the barrel to get the final product.
And the mango paste in the sterile drum bag can be used as a mango juice drink, sauce, and can be filled into vertical bags, metal cans, aluminum cans, PP containers, PET bottles, glass bottles, gable tops, etc.
Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:

  • Technical consultation
  • Customized proposal design
  • Equipment manufacturing
  • Installation commissioning and training at the site
  • 1- year after-sales guarantee
  • Life-long service
  • Package design & Purchasing


Main parameters of the mango production line

Product name:One-stop solution for mango processing line
Fresh fruit inlet capacity:500kg per hour ~ 25 tons per hour, customized
Raw material:Fresh mango
End product:Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final product Brix:14%~20%
Final package:Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
The main material for machines:Food grade SUS304 or SUS316
Warranty:12 months after commissioning
Operator needed:About 10~12 persons
Voltage:380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages:Energy-saving, High efficiency, Water-saving, Stable performance

Flowchart of tomato paste/ sauce or ketchup processing



Industrial Mango Juice Production Line 20T/H All In One 0


Final products & Package types for the mango project
Shanghai Gofun machinery company offers all kinds of mango processing line.
The raw material can be fresh mango, mango paste, etc. And the final product can be mango paste, mango sauce, mango juice, mango powder, diced mango, dried mango, etc.

Industrial Mango Juice Production Line 20T/H All In One 1
For final package, it can be aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.

Industrial Mango Juice Production Line 20T/H All In One 2
Main features of the tomato processing line
Mango processing line is the main product of Shanghai Chalk Machinery Company. Over the last 16 years he has served over 20 countries. We continue to provide high-quality machines and services to food manufacturers around the world.
1. Fresh fruit production capacity can be customized from 60 tons/day to 1500 tons/day.
2. The sugar content of the final tomato paste can be designed according to customer requirements.
3. Pour the finished mango paste into sterilized drum bags. This type of packaging can be stored at room temperature for up to 2 years. This significantly reduces transportation and storage costs.
4. All materials comply with food standards. The main material is SUS304 or SUS316, fully meeting the hygiene and food safety requirements.
5. In addition to filling aseptic bags, we also handle metal cans, pouches, stand bags, glass bottles, PET/PP containers, etc.
6. The point of the production line is to adopt the first international brand. (Steam valve uses Spirax Sarco, Siemens PLC, etc.)
7. The design of the entire production line is compact, scientific, stable operation, high efficiency, energy saving and low steam consumption.
8. The operation is simple and human. All power and maintenance areas are designed with power and maintenance platforms to ensure operator safety.
9. We can also design customized processing lines for different kinds of fruits and vegetables. We can produce clear fruit juice, cloudy fruit juice, raw fruit, pulp concentrate, pulp concentrate, fruit powder, jam, vinegar, wine, etc.
10. Waste from the production chain can be converted into fertilizer.

Our Services for the mango processing line
1. Technical support
2. Marketing proposal
3. Final packaging proposal and design
4. Factory construction and design
After-Sales Service

1.Overseas technical support
2.Overseas equipment maintenance
3. English speaking engineers available to provide technical support
