300T/D Stainless Steel Mango Juice Processing Line High Efficiency
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Model Number: | GFM-MPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 45~90 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 sets per year |
|
Detail Information |
|||
| Certification: | CE ISO | Condition: | New |
|---|---|---|---|
| Dimension(l*w*h): | According To The Capacity | Material: | 304/316L |
| Application: | Mango | After-sales Service: | Engineers Available To Service Machinery Overseas |
| High Light: | Stainless Steel Mango Processing Line,380V Fruit Juice Processing Line,300t/D Mango Juice Processing Line |
||
Product Description
High Efficiency Flexible Operation Support 300T/D Mango Juice Processing Line

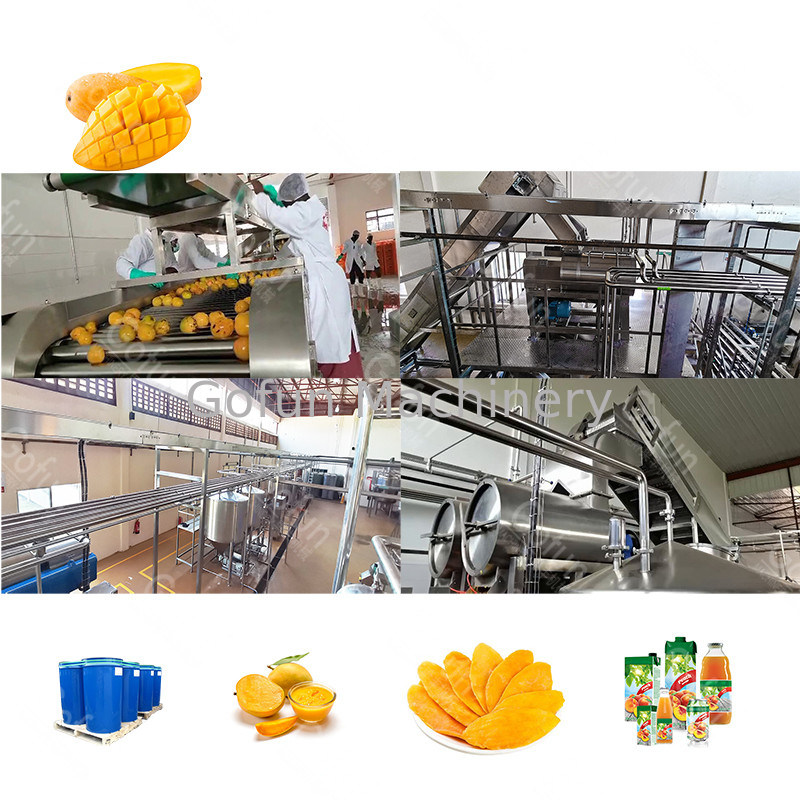

Product description of the mango processing line
Mango processing line can produce from fresh mango to different kinds of the final product. The popular products like mango pulp, mango puree, mango concentrate paste, mango sauce, mango juice, mango beverage processing line, which produce from fresh mango to the final product with the aseptic bag in drum.
The processing line mainly includes fresh mango receiving system, washing system, sorting system, destoning removing system, pre-heating system, pulping and refining system, filtration system, concentrating system, sterilizing system, and aseptic filling system. Then we can get the final products with the aseptic bag in drum.
Main parameters of the mango production line
| Product name: | One-stop solution for mango processing line |
| Fresh fruit inlet capacity: | 500kg per hour ~ 25 tons per hour, customized |
| Raw material: | Fresh mango |
| End product: | Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage |
| Final product Brix: | 14%~20% |
| Final package: | Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard) |
| Advantages: | Energy-saving, High efficiency, Water-saving, Stable performance |
Final products & Package types for the mango project
Shanghai Gofun machinery company offers all kinds of mango processing line.
The raw material can be fresh mango, mango paste, etc. And the final product can be mango paste, mango sauce, mango juice, mango powder, diced mango, dried mango, etc.
For final package, it can be aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.
Main features of the tomato processing line
The Mango processing line is the key product of Shanghai Gofun machinery company. We served more than 20 countries in the past 16 years. We keep providing high-quality machines and services to food manufacturers all over the world.
1. Besides aseptic bag filling, we can also provide metal can, small sachet, stand-up pouch, glass jar, PET/PP container, etc.
2. The final mango paste will be filled into aseptic bags in drum. With this kind of package, the shelf time can reach two years in normal temperature. Which can reduce the expense greatly for transportation and storage.
3.The Brix of final tomato paste can be designed as the customer’s requirement.
4. The capacity of fresh fruit can be customized from 60 Tons/ Day to 1500 Tons/Day.
5. All the materials are food standard, the main material is SUS304 or SUS316, which fully meets the requirements of food hygiene and safety.
6. Key points of the production line adopt international first brand. (Steam valve adopts Spirax Sarco, Siemens PLC etc.
Key process of the mango processing line
Now Shanghai Gofun machinery company will introduce the information of mango pulp puree or mango paste concentrate processing line to show it works.
1. Discharge platform
2. Elevator
3. Washing
4. Sorting
5. Destoning
6. Preheating
7. Pulper and refiner
8. Horizontal spiral centrifugal
9. Sterilizing
10. Aseptic Filling
11. Storage or go blending
Our Services for the mango processing line
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
