Tomato Paste Industrial Pasteurizer / Fruit Jam Processing Sterilizer Machine
Product Details:
Place of Origin: | Shanghai |
Brand Name: | Gofun |
Certification: | CE, ISO |
Model Number: | GFM-SS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Delivery Time: | 60 days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per year |
Detail Information |
|||
Material: | 304/316 Stainless Steel | Application: | Juice, Jam |
---|---|---|---|
Warranty: | 12 Months | Voltage: | 380V, Customized |
Condition: | New | Type: | Turnkey Processing Line |
After-sales Service: | Engineers Available To Service Machinery Overseas | Capacity: | 60 T/d, 150 T/d, 250 T/d, 1500 T/d, Customized |
Function: | Juice, Jam, Puree, Pulps Packaging Processing Line | Feature: | High Efficiency |
Usage: | Industrial Usage | Product Name: | Aseptic Packaging Processing Line |
High Light: | Fruit Jam Processing Sterilizer Machine,SS304 Tomato Paste Industrial Pasteurizer,Industrial UHT Sterilizer Machine |
Product Description
Tomato Paste Industrial Pasteurizer / Fruit Jam Processing Sterilizer Machinery
Specification
Model | GFM10D1000 | GFM10D3000 | GFM10D5000 | GFM10D8000 |
capacity(L/H) | 1000 | 3000 | 5000 | 8000 |
power(KW) | 15 | 25 | 40 | 72 |
System design pressure(MPa) | 4 | 5 | 10 | 16 |
Steam consumption(kg/h) | 250 | 750 | 1300 | 2000 |
Compressed air consumption(m³/h) | 12 | 12 | 12 | 12 |
Cooling water consumption(t/h) | 15 | 25 | 45 | 70 |
Material sterilization temperature(℃) | 90-125 | 90-125 | 90-125 | 90-125 |
Sterilization time(s) | 120-180 | 120-180 | 120-180 | 120-180 |
Feed temperature(℃) | 60-68 | 60-68 | 60-68 | 60-68 |
Discharge temperature(℃) | ≤40 | ≤40 | ≤40 | ≤40 |
Exterior dimension(mm) | 9500X2100 *3000 |
1100X2100 *3000 |
1200X2400 *3000 |
1300X2500 *3000 |
Principle
Components

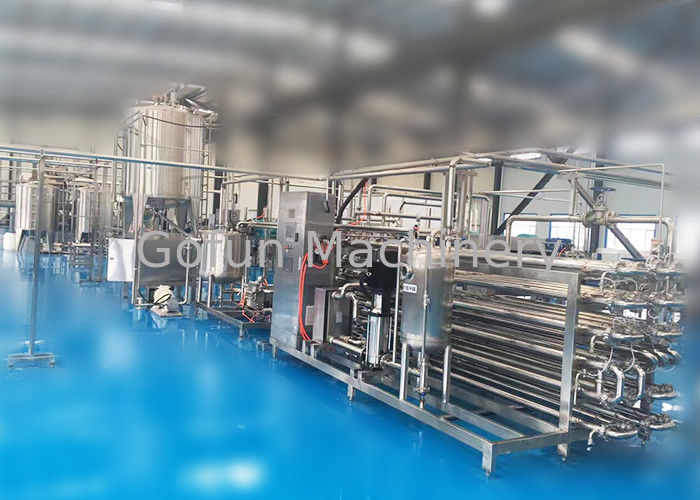

The equipment consists of material tank, pump, tubular heat exchanger, retainer, superheated water system and control system. Regenerative heat exchange technology is adopted in the equipment design to improve heat transfer efficiency and save energy.
The operating system adopts an image man-machine interactive operation interface, which is convenient for you to intuitively grasp the running status of each component of the device at any time. control system on the device.
Main configuration of the system | ||
No. | Item | Brand |
1 | PLC | Siemens |
2 | Human Machine Interface | Siemens |
3 | Steam Reducing Valve | Spirax Sarco |
4 | Steam Regulating Valve | Spirax Sarco |
5 | Steam Trap Valve | Spirax Sarco |
6 | Electric Elements | Schneider |
7 | Transducer | Japan Fujifilm |
8 | Temperature paperless recorder | YOKOGAWA |
9 | Breaker | Schneider |
10 | Central relay | Omron |
Features
Combines Italian technology and conforms to Euro standards.
Large heat exchange area, low energy consumption, and easy maintenance.
We adopt mirror surface welding technique and keep smooth pipe joint.
Automatically returns if sterilization is insufficient.
All junctions and joints are steam protected.
Liquid level and temperature controlled in real time.
Independent control panel. PLC and human machine interface.
CIP and Auto-SIP available with sterile bag fillers.
Our Service
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
5. Oversea technical support
6. Oversea equipment maintenance
7. English speaking engineers available to provide technique support.
Company Information
Gofun Company provides turnkey solutions not only for tomato paste production line, but also for apple, pear, peach, mango, apricot and other fruit and vegetable processing and packaging lines, receiving wide praise from both customers. I'm here. domestic and foreign markets. The machines have already been exported all over the world, including Asian countries, African countries, South American countries, as well as European and American countries.Gofun Company aims to produce excellent food machines and contribute to global agriculture. increase. We are sincerely committed to great prospects and mutually beneficial relationships with all people and friends around the world!
