SUS304 / 316L Mango Juice Processing Machine 3T/H One Stop Service
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Model Number: | GFM-MPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Certification: | CE/ISO9001 | Voltage: | 220/380/440V, According To Customers |
|---|---|---|---|
| Type: | One Stop Turn Key Processing Line | Material: | SUS304 |
| Application: | Mango Paste / Pulp, Mango Sauce | Capacity: | 10T/D To 200T/D |
| Product Name: | Fresh Fruits Making Machine | Name: | Mango Juice Processing Machines |
| Feature: | Easy Operation | ||
| High Light: | SS316L Mango Juice Processing Machine,3t/H Mango Juice Processing Equipment,Energy Saving Mango Juice Processing Machine |
||
Product Description
SUS304/316L Mango Juice Processing Machine 3T/H One-Stop Service
Product description of the mango processing line
A mango processing line is capable of manufacturing a wide range of finished products using fresh mangoes. These products include popular items like mango pulp, mango puree, mango concentrate, mango paste, and mango juice. The processing line is designed to handle the transformation of fresh mangoes into these delicious end products, which are then packed aseptically in barrels.

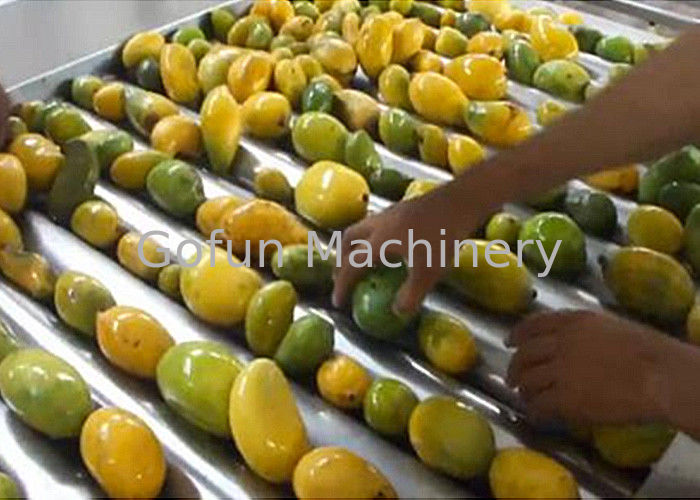

The mango processing line comprises several key components: a system for receiving fresh mangoes, a cleaning system, a sorting system, a descaling system, a preheating system, a pulp preparation and refining system, a filtration system, a concentration system, a sterilization system, and an aseptic filling system. This comprehensive process ensures the production of high-quality mango products, which are then packaged in aseptic barrels for final distribution.
Mango puree in an aseptic barrel bag can be further made into mango juice, sauce drink and packed in bags, metal cans, aluminum cans, PP containers, plastic bottles, glass jars, pine nuts, etc.
Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:
- Technical consultation
- Customized proposal design
- Equipment manufacturing
- Installation commissioning and training at the site
- 1- year after-sales guarantee
- Life-long service
- Package design & Purchasing
Main parameters of the mango production line
| Product name: | One-stop solution for mango processing line |
| Fresh fruit inlet capacity: | 500kg per hour ~ 25 tons per hour, customized |
| Raw material: | Fresh mango |
| End product: | Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage |
| Final product Brix: | 14%~20% |
| Final package: | Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard) |
| Advantages: | Energy-saving, High efficiency, Water-saving, Stable performance |
Flowchart of tomato paste/ sauce or ketchup processing
