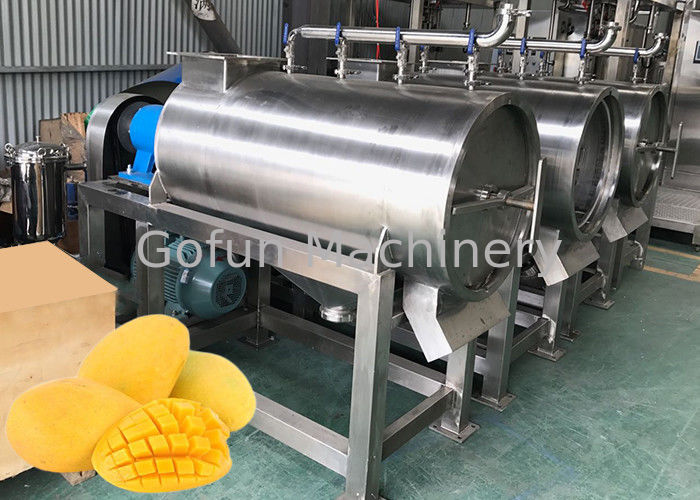

SUS 316L Mango Jam Juice Processing Machine 10 - 100T/D Turnkey Service
Product Details:
Place of Origin: | Shanghai |
Brand Name: | Gofun |
Model Number: | GFM-MPL |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | International standard package for shipping |
Delivery Time: | 45~90 days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 100 sets per year |
Detail Information |
|||
Certification: | CE/ISO9001 | Condition: | New |
---|---|---|---|
Material: | Sus 304 | Capacity: | 10T/D To 200T/D |
Product Name: | Fresh Fruits Making Machine | Name: | Best Price Fruit Processing Line Mango Pulp Production Line |
Usage: | Food Processing | Warranty: | 12 Months |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 220V/380V |
High Light: | Fresh Mango Juice Processing Line,Mango Jam Processing Machine 10T/D,SUS 316L Mango Juice Processing Machine |
Product Description
SUS 316L Mango Jam Juice Processing Machine 10-100T/D Turnkey Service
Product description of the mango processing line
A mango processing production line is capable of producing a variety of finished products from fresh mangoes. Some commonly produced products include mango juice, mango puree, mango concentrate, dried mango, mango slices, and mango jam.
The production line consists of several key components, including a fresh mango receiving system, washing system, sorting system, destoning system, preheating system, pulping and refining system, filtering system, concentration system, sterilization system, and aseptic filling system. These stages ensure the transformation of fresh mangoes into the desired final product, which can then be packaged in sterile containers.
The mango sauce, packed in sterile bags or aseptic bags, can also be utilized in the production of mango juice beverages, sauces, and packaged in various formats such as bag packaging, metal cans, aluminum cans, PP containers, plastic bottles, glass jars, shaped tops, and more.
Gofun not only provides tomato processing equipment for your factory, but also can provide a one-stop solution from A to Z, including:
- technical consulting
- Personalized Quote Design
- Equipment manufacturing
- On-site commissioning and training
- 12 months after-sales service warranty
- Enjoy lifelong service
- package design and purchase
Main parameters of the mango production line
Product name: | One-stop solution for mango processing line |
Fresh fruit inlet capacity: | 500kg per hour ~ 25 tons per hour, customized |
Raw material: | Fresh mango |
End product: | Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage |
Final product Brix: | 14%~20% |
Final package: | Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc |
The main material for machines: | Food grade SUS304 or SUS316 |
Warranty: | 12 months after commissioning |
Operator needed: | About 10~12 persons |
Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard) |
Advantages: | Energy-saving, High efficiency, Water-saving, Stable performance |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for the mango project
Shanghai Gofun machinery company offers all kinds of mango processing line.
The final products derived from mango processing encompass a range of options, including mango juice, mango puree, mango concentrate, dried mango, sliced mango, mango sauce, and various other mango-based products.
Final packaging can be aseptic bags, metal boxes, small bags, stand-up sachets, PP containers, glass bottles, PET bottles, gable tops, etc.
