Mango processing line dedicated fruit puree juice and dried fruit processing machine
  • Mango processing line dedicated fruit puree juice and dried fruit processing machine
  • Mango processing line dedicated fruit puree juice and dried fruit processing machine
  • Mango processing line dedicated fruit puree juice and dried fruit processing machine
  • Mango processing line dedicated fruit puree juice and dried fruit processing machine
  • Mango processing line dedicated fruit puree juice and dried fruit processing machine
  • Mango processing line dedicated fruit puree juice and dried fruit processing machine
  • Mango processing line dedicated fruit puree juice and dried fruit processing machine
Mango processing line dedicated fruit puree juice and dried fruit processing machine

Mango processing line dedicated fruit puree juice and dried fruit processing machine

Place of Origin Shanghai
Brand Name Gofun
Certification CE, ISO certificate
Model Number GFM-MPL
Product Details
Warranty:
12 Months
Certification:
CE/ ISO9001
Voltage:
220/380/440V, According To Customers
Power(w):
7.5kw
Type:
Turnkey Processing Line From A To Z
Material:
SUS304/ SUS316
Capacity:
1 T/h-20 T/h
Product Name:
Mango Dried Processing Machine
After-sales Service:
Oversea Technical Support
Application:
Mango
Condition:
New
Weight:
Customized
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
International standard package for shipping
Delivery Time
45~90 days
Payment Terms
T/T,Western Union,L/C
Supply Ability
100 sets per year
Product Description
Industrial Mango Puree Processing Line
Mango puree processing line – our high-efficiency automatic turnkey solution is custom-built for food processing factories dedicated to mango-based products. Designed for unrivaled versatility and scalability, this integrated Mango puree processing line supports tailor-made daily processing capacities to perfectly align with your production needs, ranging from small-batch trial operations to large-scale mass production. Boasting a streamlined, low-wear mechanical structure with fewer moving parts and standardized components, this Mango puree processing line cuts down maintenance needs, minimizes production downtime, and slashes long-term operational costs significantly.
Model Parameters
Product NameOne-stop solution for mango processing line
Fresh Fruit Inlet Capacity500kg per hour ~ 25 tons per hour, customized
Raw MaterialFresh mango
End ProductsMango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix14%~20%
Final Package OptionsAseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine MaterialFood grade SUS304 or SUS316
Warranty12 months after commissioning
Operator RequirementAbout 10~12 persons
Voltage380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
AdvantagesEnergy-saving, High efficiency, Water-saving, Stable performance
Processing Flowchart
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Mango processing line dedicated fruit puree juice and dried fruit processing machine 0
Final Products & Packaging Options
Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.
Mango processing line dedicated fruit puree juice and dried fruit processing machine 1
Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.
Mango processing line dedicated fruit puree juice and dried fruit processing machine 2
Key Features
  • Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
  • Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
  • Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
  • Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
  • Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
  • Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services
Detailed Process Steps
1. Discharge Platform Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.
2. Elevator This machine transports fresh mango from outside the building to inside the processing facility. Mango processing line dedicated fruit puree juice and dried fruit processing machine 3
3. Washing Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy. Mango processing line dedicated fruit puree juice and dried fruit processing machine 4

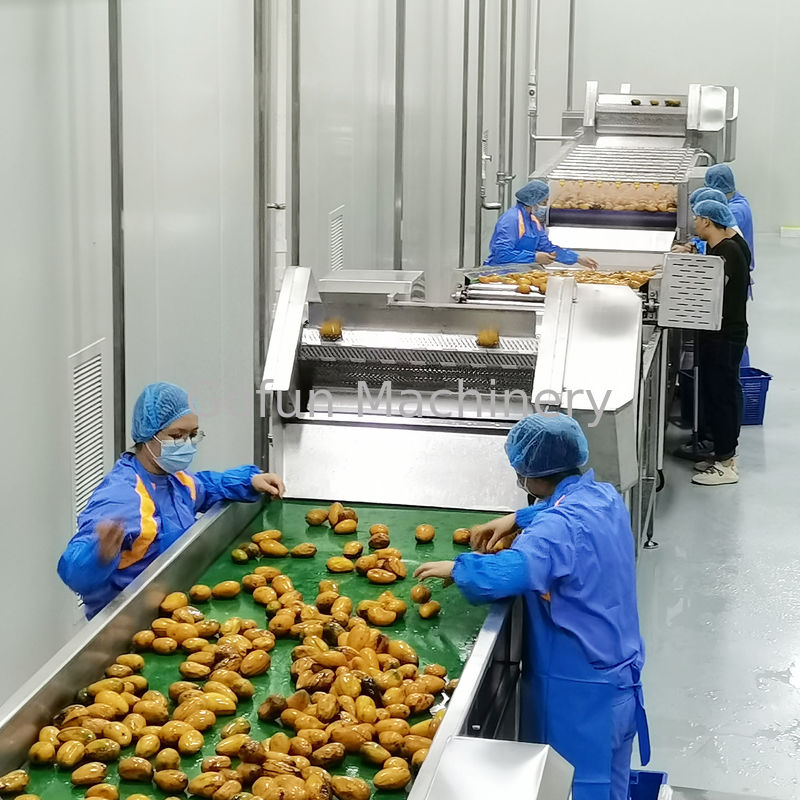

4. Sorting Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line. Mango processing line dedicated fruit puree juice and dried fruit processing machine 5
5. Destoning Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency. Mango processing line dedicated fruit puree juice and dried fruit processing machine 6
6. Preheating Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste. Mango processing line dedicated fruit puree juice and dried fruit processing machine 7
7. Pulper and Refiner Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.
 Mango processing line dedicated fruit puree juice and dried fruit processing machine 8
8. Horizontal Spiral Centrifugal Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots. Mango processing line dedicated fruit puree juice and dried fruit processing machine 9
9. Sterilizing Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation. Mango processing line dedicated fruit puree juice and dried fruit processing machine 10
10. Aseptic Filling Operates with tube-in-tube sterilizer in closed cycle system. Vapor-protected filling cavity maintains sterility throughout the packaging process. Mango processing line dedicated fruit puree juice and dried fruit processing machine 11
11. Storage or Blending Final product can be stored as-is or used as raw material for producing mango sauce or other products. Mango processing line dedicated fruit puree juice and dried fruit processing machine 12
Mango processing line dedicated fruit puree juice and dried fruit processing machine 13 Mango processing line dedicated fruit puree juice and dried fruit processing machine 14
