Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
  • Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree
Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree

Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree

Place of Origin Shanghai, China
Brand Name Gofun
Certification CE, ISO
Model Number GFM-APL, GFM-PPL
Product Details
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
220/380/440V, According To Customers
Certification:
CE/ISO9001
Type:
Turnkey Processing Line
Material:
Food Standard SUS 304, 316, Accourding To Customer
Capacity:
20T/day ~ 1500T/day, According To Customers
Application:
Apple, Pear
Product Name:
Apple/pear Juice Processing Line
End Products:
NFC Juice, Cloudy Juice, Clear Juice, Concentrate Juice, Beverage
Special Process:
HPP (high Pressure Processing), UHP (ultra-high Pressure Processing)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
International standard package for shipping
Delivery Time
45~90 days
Payment Terms
T/T,Western Union,L/C
Supply Ability
20 sets per year
Product Description

Turnkey Production Plant for NFC Juice, Clear Juice & Apple Puree

Are you looking for a reliable, high-capacity apple processing solution that can handle everything from fresh fruit intake to final packaging? Our turnkey apple juice production line is engineered to transform fresh apples into premium products—NFC juice, clear concentrate, apple puree, and apple sauce—all in one seamless, fully automated system. Designed for industrial-scale beverage and food manufacturers, this line reduces manual labor, minimizes product loss, and ensures consistent output quality batch after batch.

Technical Specifications
Product Name One-stop solution for apple processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh apple
End Products Apple pulp, apple puree, apple juice, apple jam, dry apple and more
Final Product Brix 10%~12%
Final Packaging Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operators Required About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Key Advantages Energy-saving, High efficiency, Water-saving, Stable performance
Production Process Overview
1Discharge Platform
Fresh apples are unloaded from trucks using a dedicated platform with water guns and transported to the production line via water flow. This area also serves as a pre-washing station before processing begins.
2Elevator
Transports fresh apples from external receiving areas into the processing facility.

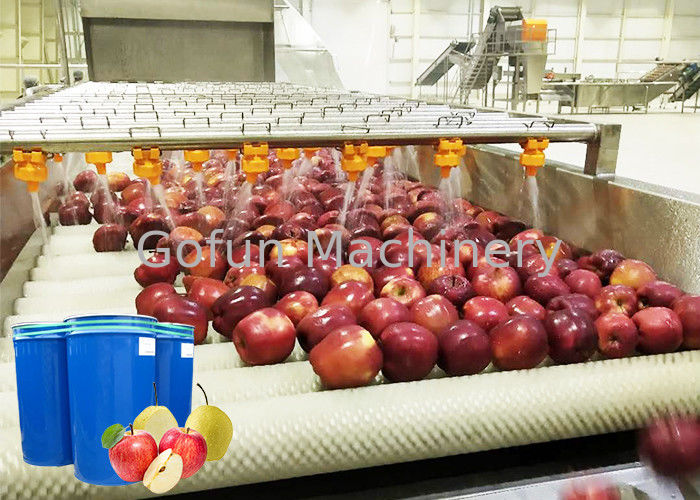

3Washing
Fresh apples undergo thorough cleaning before skin and seed removal. Additional cleaning stages, including ultrasonic and ozone cleaning, can be integrated for enhanced sanitation.
Industrial apple washing machine with multiple cleaning stages
4Sorting
After washing, apples are visually inspected by operators to identify and remove any defective fruit, ensuring only quality produce proceeds to processing.
Quality control sorting station for apple inspection Close-up view of apple sorting conveyor system
5Crushing
GFM-FC series crushers utilize advanced technology for high-precision crushing of apples and other fruits. This fine grinding process enhances the efficiency of subsequent processing stages.
Industrial fruit crusher machine for apple processing
6Preheating
Crushed material is heated to temperatures between 45°C and 85°C. This step improves juice yield in subsequent extraction while preserving color and flavor characteristics.
Temperature-controlled preheating system for apple mash
7Belt Type Juice Extractor
Advanced belt press technology delivers high-efficiency juice extraction with over 70% yield. Features energy-saving design and automated control for optimal performance.
High-capacity belt press juice extractor for apples
8Sterilizing
Tube sterilizers process apple puree and applesauce at ultra-high temperatures (approximately 115°C for 30 seconds) followed by immediate cooling. This preserves taste and nutritional content while ensuring product safety.
Industrial tube sterilization system for apple products Control panel and monitoring system for sterilization process
9Aseptic Filling
Closed-loop aseptic filling systems work in conjunction with sterilizers. The filling chamber maintains vapor protection and sterile conditions, with mirror welding technology ensuring clean, smooth surfaces. Includes CIP and Auto SIP capabilities for various packaging formats.
Aseptic filling machine for sterile packaging of apple products Automated aseptic filling line operation
10Storage or Blending
Finished products can be stored directly or used as raw materials for further processing into apple sauce, ketchup, or other value-added products.
Storage tanks and blending systems for processed apple products
