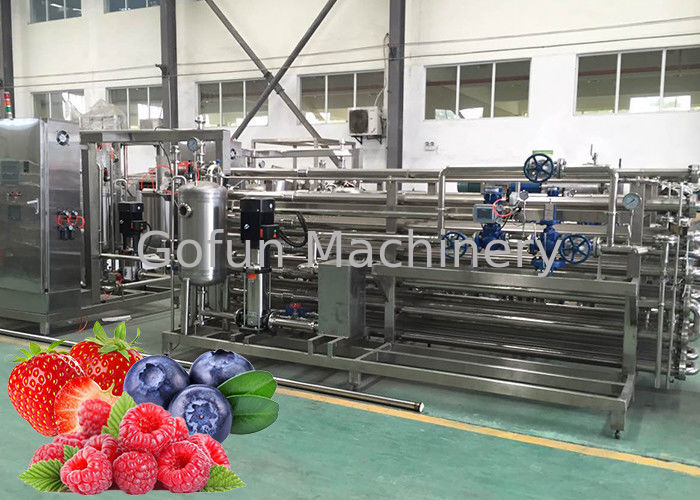

Berry Paste Pulp Industrial Pasteurizer Turnkey Processing Line Easy Clean
|Place of Origin:||Shanghai|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Delivery Time:||60 days|
|Supply Ability:||30 sets per year|
|Material:||304/316 Stainless Steel||Application:||Berry Paste/ Pulp/ Sauce|
|Warranty:||12 Months||Voltage:||380V, Customized|
|Condition:||New||Type:||Turnkey Processing Line|
|Advantages:||Easy Clean And Maintainence||Capacity:||5t/h, 10t/h, Customized|
|Function:||Jam, Puree, Pulps Sterilization Line||Feature:||High Efficiency|
|Usage:||Industrial Usage||Product Name:||Sterilization Line|
Berry Paste Pulp Industrial Pasteurizer,
5t/h Industrial Pasteurizer,
316 Stainless Steel Industrial Pasteurizer
5T/H Automatic Tube in Tube Sterilizer for Berry Paste/ Pulp/ Sauce/ Jam
Shanghai Gofun machinery company, a professional fruit and vegetable processing line manufacturer and exporter in China. Which can offer the turn-key solution for different fruits juice, pulp & paste processing complete line with high quality and competitive production lines with daily capacity from 60 tons to 1500 tons and customizations including plant construction, equipment manufacturing, installation, commissioning and production; provide the most optimized implementation plan. Gofun Company provides the turn-key solution for not only the tomato paste production line but also the processing lines for many kinds of fruits & vegetables, like apples, pears, plums, coconuts, mulberries, etc., and has received widespread praises from customers from both the domestic and overseas. Our machines have already been exported to all over the world including the Asian countries, African countries, South American countries and even European countries.
The sterilizing temperature and holding time is adjustable.With this machine, the fruit or vegetable juice/paste/pulper can be heated to a very high temperature around 115℃, held for 30s and then cooled to ambient temperature immediately. UHT sterilizer can protect the taste and nutrients of fruits or vegetables as much as possible.
|System design pressure(MPa)||4||5||10||16|
|Compressed air consumption(m³/h)||12||12||12||12|
|Cooling water consumption(t/h)||15||25||45||70|
|Material sterilization temperature(℃)||90-125||90-125||90-125||90-125|
Shanghai Gofun machinery company offers all kinds of sterilization processing line. The sterilization way can be tubular type sterilizer, tube in tube type sterilizer or others. The package can be aseptic bags, sachet, stand-up pouch, metal can, PP container, PET bottle, glass bottle, gable top, etc. Shanghai Gofun machinery company can help you produce all kinds of fruit and vegetable products.
The capacity of fruit and vegetable sterilizer processing line is varied from 20 T/day to 1500 T/day. The line can also be shared for processing other fruits with similar characteristics. Tube in Tube type sterilizer is specially used and the whole sterilization last only 30 seconds, which allows to maintain products freshness. The sterilization rate is especially no less than 75%. The end products are of good taste and nice color. Multi-effect evaporator can be chosen for different capacity. Either fully automatic line or semi-automatic line can be chosen according to the cost.
- Put the product from a storage tank mounted for the sterilizer into the heat exchanger unit.
- Heat the product by superheated water till the sterilizing temp and hold the product under the temp for sterilizing the product, then cool down Into filling temperature by cooling water or chilled water.
- Before each production shift, sterilize in place the system with aseptic filler together by superheated water.
- After each production shift, clean in place the system with aseptic filler together by hot water, alkali liquid and acid liquid.
- Both the material and the heating medium are heated by non-contact heat exchange in their respective sealing systems to ensure the hygienic safety of the material.
- The sterilization time is short to ensure that the nutrients of the material are not destroyed.
- The machine is made of food grade stainless steel to ensure that beverages and food equipment meet national safety and health requirements.
- Good heat transfer performance, high heat recovery and low energy consumption
- The main control components, valve parts and supporting parts are imported parts with long service life.
- It adopts PLC control to automatically control the heating temperature, hot water temperature and steam flow rate of each section of material, and is equipped with automatic feeding system to ensure the material achieves sterilization effect.
- The device has the advantages of simple structure, convenient cleaning, convenient operation and low maintenance cost.
Why choose us
1. High-tech enterprise with our own professionally team and manufactured factory.
2. Advanced technology at home and abroad leading level, and granted technology patents.
3. Location in national key high-tech zone, only 30mins to airport.
4. Strict quality inspection, all products are advanced and durable with high reputation.
5. Good pre-sales and after-sales service.
