Aseptic Bag Fresh Tomato Paste Production Line 250t/d

Aseptic Bag Fresh Tomato Paste Production Line 250t/d

Product Details:

Place of Origin: Shanghai
Brand Name: Gofun
Certification: ISO, CE certification
Model Number: GFM-TPL

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Delivery Time: 90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Voltage: 220V, 380V, Customized Condition: New, Complete
Type: Turnkey Processing Line After-sales Service Provided: Oversea Technical Support
Material: 304 Stainless Steel Capacity: 60 T/d, 150 T/d, 250 T/d, 1500 T/d, Customized
Function: Tomato Paste Processing Warranty: 12 Months After Installation And Commissioning
High Light:

Aseptic Bag Tomato Paste Production Line

,

250t/D Tomato Paste Production Line

,

ISO Tomato Paste Production Line

Product Description

Tomato Paste Production Line from Fresh Tomato to Tomato Paste in Aseptic Bag



Description



Shanghai Gofun machinery company, a professional tomato processing line manufacturer and exporter in China. Which can provide turnkey solution and technical support for tomato processing line with different kinds of end products from tomato.



1. Tomato paste/puree processing line

2. Tomato juices processing line

3. Tomato ketchup/sauces processing line



Processing Capacity

(fresh fruit)

60 150 250 500 750 1000 1250 1500

Water Consumption

(t/h)

7 13 22 44 66 88 110 132

Power

(kw)

84 152 412 636 955 1292 1411 1558

Steam Consumption

(t/h)

1.7 3.9 5.2 9.1 15.1 20.2 24.6 29.2
Compressed Air Consumption (t/h) 66.2 66.2 66.2 72.2 72.2 72.2 72.2 72.2
Cooling Water Consumption (t/h) 125 317 407 585 825 1075 1410 1630



Advantages



The most popular is tomato paste processing line, which includes a complete line of machines that could make fresh tomato to tomato paste with aseptic bag in drum. Tomato paste processing line mainly includes fresh tomato receiving system, washing system, sorting system, extracting system, concentrating system, sterilizing system, and aseptic filling system. Then can get the tomato paste with aseptic bag in drum. And the tomato paste in aseptic bag in drum can be further produced to tomato ketchup, sauces, juice and filled in sachet, stand-up pouch, metal can, PP container, bottle, gable top, etc.



The tomato processing line from Shanghai Gofun machinery company is running with high effective, water saving, high extracting rate, safety quality control for final product, safety control for operators, etc.



Flowchart



Aseptic Bag Fresh Tomato Paste Production Line 250t/d 0

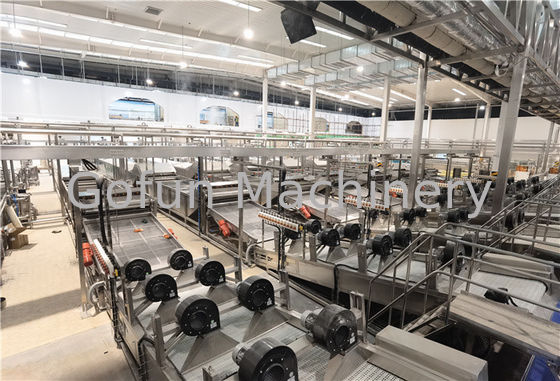

Washing &sorting Different types of washing machines can be offered: bubble washing machine, spray washing machine, brushing washing machine, and etc., types and models are customized according to the customer requirements and layout.
Crushing GFM-FC series crusher is made through learning the design technologies of foreign high-class equipment from abroad, which has the most advanced working principle, higher accuracy of manufacture, and best crushing functions.
Pulping & refining High capacity and stable performance; Easy to be operated; Suitable for many different kinds of fruits that are including the passion fruit, tomato, peach, apricot, mango, apple and etc.;

Evaporator /

Concentration

1. Adjustable and controllable direct contact heat treatment units.
2. Shortest possible residence time, presence of a thin film along the entire length of the tubes reduces holdup and residence time.
3. Special design of liquid distribution systems to ensure correct tube coverage. The feed enters at the top of the calandria where a distributor ensures film formation on the inside surface of each tube.
4. The vapor flow is co-current to the liquid and the vapor drag improves the heat transfer. The vapor and the remaining liquid are separated in a cyclone separator.
5. Efficient design of separators.
6. Multiple effect arrangement provides steam economy.
Sterilization 1. The unit consists of a product receiving tank, superheated water tank, pumps, product dual filter, tubular superheated water generate system, tube in tube heat exchanger, PLC control system, Control cabinet, steam inlet system, valves, and sensors, etc.
2. Incorporated Italian technology and conform to Euro-standard
3. Great heat exchange area, low energy consumption, and easy maintenance
4. Adopt mirror welding tech and keep the smooth pipe joint
5. Auto backtrack if not enough sterilization
6. CIP and auto SIP available together with aseptic filler
7. Liquid level and temp controlled in real-time
Aseptic filling Safety - providing several security methods. Using mirror welding tech to ensure tidy and smooth welding line. Separate control panel. CIP and auto SIP available together with sterilizer. Easy to adjust to match the different volumes and sizes of aseptic bags



Our Services



1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design

5. Oversea technical support

6. Oversea equipment maintenance

7. English speaking engineers available to provide technical support



Company Information



Shanghai Gofun machinery company, a professional tomato processing line manufacturer and exporter in China. Which can offer the turn-key solution for different fruits juice, pulp & paste processing complete line with high quality and competitive production lines with daily capacity from 60 tons to 1500 tons and customizations including plant construction, equipment manufacturing, installation, commissioning, and production; provide the most optimized implementation plan. Gofun Company provides the turn-key solution for not only the tomato paste production line but also the processing lines for many kinds of fruits & vegetables, like apples, pears, plums, coconuts, mulberries, etc. And has received widespread praises from customers from both the domestic and overseas. Our machines have already been exported all over the world including Asian countries, African countries, South American countries, and even European countries.
