One Stop automatic Tomato Processing Line With CE Certification

Place of Origin Shanghai
Brand Name Gofun
Certification ISO, CE certification
Model Number GFM-TPL
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details International standard package for shipping
Delivery Time 90 days
Payment Terms T/T, L/C, Western Union
Supply Ability 20 sets per year
Product Details
Voltage 220V/380V Warranty 1 Year
After-sales Service Provided Online Support Weight Based On Specific Machines
Material 304 Stainless Steel Application Tomato
High Light

CE Tomato Paste Production Lines

,

One Stop Ketchup Processing Line

,

Automatic Tomato Processing Equipment

Leave a Message
Product Description

One-stop Solution for Tomato Processing Line Field Installation CE Certification



Product description of tomato processing plant



The tomato processing line can produce from fresh tomatoes to various types of final product. Popular products such as tomato paste, tomato sauce and ketchup are a tomato juice processing line that produce from fresh tomatoes to the final product with an aseptic package in the drum.



The processing line mainly includes: fresh tomato reception system, washing system, sorting system, crushing system, pulp and refining system, filtration system, concentration system, sterilization system and aseptic filling system. We can then get the tomato paste with the aseptic bag in the drum.



And the tomato paste in aseptic bag in drum can be further produced to tomato ketchup, sauces, juice and filled in sachet, stand-up pouch, metal can, PP container, bottle, gable top, etc.



Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:

  • Technical consultation
  • Customized proposal design
  • Equipment manufacturing
  • Installation commissioning and training at the site
  • 1- year after-sales guarantee
  • Life-long service
  • Package design & Purchasing



Main parameters of tomato production line



Product name: One-stop solution for tomato processing line
Fresh fruit input capacity: 500kg per hour ~ 25 tons per hour
Raw material: Fresh tomato, tomato paste
End product: Tomato paste, tomato sauce or ketchup, tomato juice, etc
Final product Brix: 28%~30%, 36%~38%
Final package: Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc
The main material for machines: Food grade SUS304 or SUS316
Warranty: 12 months after commissioning
Operator needed: About 10~12 persons
Voltage: 380V 50Hz/ 110V 60Hz/ 415V 50Hz
(adjustable to client's country standard)
Advantages: Energy-saving, high efficiency, water-saving

Flowchart of tomato paste/ sauce or ketchup processing



FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING



One Stop automatic Tomato Processing Line With CE Certification 0



Final products & Package types for tomato project



Shanghai Gofun machinery company offers all kinds of the tomato processing line.



The raw material can be fresh tomato, tomato paste, etc. And the final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomato, etc.

One Stop automatic Tomato Processing Line With CE Certification 1One Stop automatic Tomato Processing Line With CE Certification 2

For the final package, it can be an aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.

One Stop automatic Tomato Processing Line With CE Certification 3



Main features of the tomato processing line



The tomato processing line is the key product of Shanghai Gofun machinery company. We served more than 20 countries in the past 16 years. We keep providing high-quality machines and services to food manufacturers all over the world.



1. The production capacity of fresh fruit can be adjusted from 60 tons/day to 1500 tons/day.

2. Tomatoes can be cut hot or cold.

3. Brix final ketchup can be designed according to customer requirements, usually 28-30% or 36-38%.

4. Pour the final ketchup into a sterile bag into the bowl. With this packaging, the shelf life at room temperature can be up to two years. As a result, transport and storage costs can be significantly reduced.

5. All materials are food standard, the main material is SUS304 or SUS316, which fully meets the requirements of hygiene and food safety.

6. Besides aseptic bag filling, we can also provide metal cans, pouches, pouches, glass jars, PET/PP containers, etc.

7. The highlight of the production line adopts the first international brand. (Steam valve accepts Spirax Sarco, Siemens PLC, etc.)

8. The entire production line has a compact and scientific design, stable operation, high efficiency and energy saving, and low steam consumption;

9. The operation is simple and user-friendly. All feeding and maintenance areas are designed with feeding and maintenance platforms to ensure the safety of operators.

10. We can also design separate processing lines for different kinds of fruits and vegetables. It can produce clear juice, turbid juice, puree, concentrated juice, concentrated pulp, fruit powder, jam, vinegar, wine and other products.

11. The waste from the production line can be used as fertilizer.



Key process of the tomato paste processing line



Now Shanghai Gofun machinery company will introduce the information of tomato paste processing line to show it works.



1. Discharge platform

When fresh tomato come, normally with big truck, if discharge with human, it would be very difficult. So, we design the discharge platform and use water gun to discharge fresh fruit/tomato from truck, also use water to delivery fresh fruit/tomato to the processing line. And there is another function of the discharge platform, it can pre-wash fresh fruit/tomato before processing.



2. Elevator

This machine is used to delivery fresh fruit from outside the building to inside.

One Stop automatic Tomato Processing Line With CE Certification 4One Stop automatic Tomato Processing Line With CE Certification 5

3. Washing

Fresh fruit should be washed thoroughly before crushing. For washing, we can use a soap dish with foam and a spray washing machine. If washing requirements are high, more washing steps can be added. In addition, for better cleaning effect, we can add ultrasonic cleaning and ozone.

One Stop automatic Tomato Processing Line With CE Certification 6One Stop automatic Tomato Processing Line With CE Certification 7

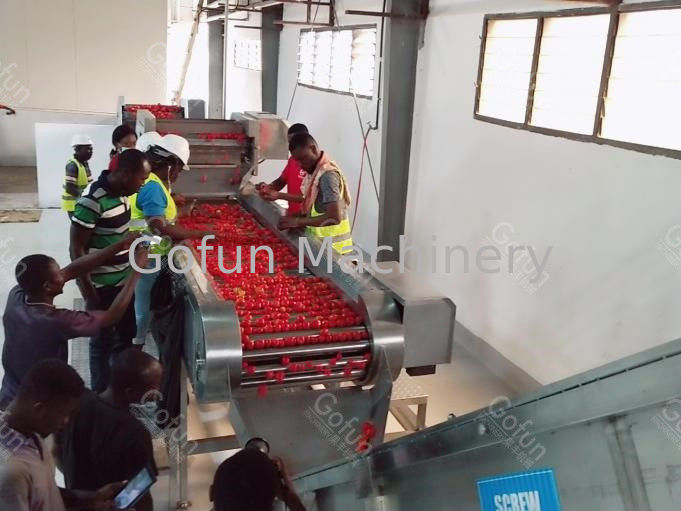

4. Sorting

After washing, the surface of the fruit is clean, we can check the situation of all the fruit by human eye, and sort out the bad tomatoes by human.

One Stop automatic Tomato Processing Line With CE Certification 8One Stop automatic Tomato Processing Line With CE Certification 9

5. Crushing for tomato processing

GFM-FC series crusher has the most advanced working principle, higher production precision and better crushing function. It is mainly used for the crushing of various fruits or vegetables, such as tomatoes, apples, pears, strawberries, celery, etc. It can crush the raw materials into fine particles and increase the working effect of the next processing section. The machine consists of a feeding hopper, a side cover , frame, spindle, support unit, motor, motor design, discharge hopper, etc.

One Stop automatic Tomato Processing Line With CE Certification 10One Stop automatic Tomato Processing Line With CE Certification 11

6. Preheating

The pre-heater is used to heat the product after crusher, the temperature is adjustable, normally from 45℃ to 85℃. This processing step, would help to higher the juice rate for next step, and also can protect the color and taste of the final product.

One Stop automatic Tomato Processing Line With CE Certification 12One Stop automatic Tomato Processing Line With CE Certification 13

7. Pulper and refiner

The machine also runs at 1470 rpm, creating centrifugal force through which the product will pass through the screen, helping to refine the product. And usually we use two-stage pulper and refiner, the screen of each stage is different, the screen of the first stage is larger, and the screen of the second stage is smaller. The tomato pulp yield of the two-stage pulper can reach 90% to 95%. After the tomato is cooked, the peel and seeds will separate from the tomato pulp. The machine has high running power and stable performance; easy to operate and replace the sieve; suitable for a variety of fruits, including passion fruit, tomato, peach, apricot, mango, apple, etc.;

One Stop automatic Tomato Processing Line With CE Certification 14One Stop automatic Tomato Processing Line With CE Certification 15

8. Evaporating

Vacuum Evaporator is used for concentrating the tomato paste under vacuum and low temperature. Here we are using Forced Circulation Vacuum Evaporator. Because it’s under vacuum and low temperature, so the tastes and nutrients would be protected as much as possible. And right now, we evaporate the water from the tomato pulp, then we will get the tomato paste, normally the Brix is 28-30% and 36-38%.



One Stop automatic Tomato Processing Line With CE Certification 16One Stop automatic Tomato Processing Line With CE Certification 17

9. Sterilizing

For ketchup, we use tube sterilizers in sterilization tubes. Sterilization temperature and exposure time are adjustable. Using this machine, we heat the ketchup to a high temperature of around 115°C for 30 seconds, then immediately cool to ambient temperature. The same method can maximize the protection of the ketchup dough and nutrients. The whole system adopts programmable control. The operating system adopts a visual human-machine interface, which is friendly and intuitively covers the running status of each component of the equipment.

One Stop automatic Tomato Processing Line With CE Certification 18One Stop automatic Tomato Processing Line With CE Certification 19

10. Aseptic Filling

The aseptic filling machine works together with the tube in tube type sterilizer. It’s a closed cycle. Before production, the cycle will be fully sterilized to make sure the aseptic environment. And the filling cavity is also protected by steam to make sure the filling environment is also aseptic. Safety - providing several security methods. Using mirror welding tech to ensure tidy and smooth welding line. Separate control panel. CIP and auto SIP available together with sterilizer. Easy to adjust to match the different volumes and sizes of aseptic bags

One Stop automatic Tomato Processing Line With CE Certification 20One Stop automatic Tomato Processing Line With CE Certification 21

11. Storage or go blending

The finished product can be stored or used as the raw material to make the tomato sauce or ketchup.

One Stop automatic Tomato Processing Line With CE Certification 22One Stop automatic Tomato Processing Line With CE Certification 23



Our Services for tomato processing plant



1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design



After-Sales Service



1. Oversea technical support

2. Oversea equipment maintenance

3. English speaking engineers available to provide technical support
