SUS304 / 316L Tomato Paste Processing Line Aseptic Filling System

SUS304/316L Tomato Paste Processing Line Whole Journey Nanny Service

Product description of tomato processing plant

Tomato processing lines can produce everything from fresh tomatoes to finished products. Popular products such as ketchup, ketchup, ketchup, and tomato juice processing line, from fresh tomatoes to aseptic bag production in barrels.

The processing line mainly includes raw tomato receiving system, washing system, sorting system, crushing system, pulping and refining system, filtration system, concentration system, sterilization system and aseptic filling system. Then put the ketchup in a bucket with a sterile bag.

Ketchup in aseptic pouches can further be produced into ketchup, sauces, juices, filled sachets, stand-up pouches, metal cans, PP containers, bottles, gable tops, etc.

Gofun not only provides tomato processing equipment for your factory, but also can provide his one-stop solution from A to Z, including:

• Technical consultation
• customized proposal design
• Equipment manufacturing
• On-site installation commissioning and training
• 1 year after-sales service warranty
• Lifetime service
• package design and purchase

Main parameters of tomato production line

FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Final products & Package types for tomato project

Shanghai Gofun machinery company offers all kinds of the tomato processing line.

The raw material can be fresh tomato, tomato paste, etc. And the final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomato, etc.

For the final package, it can be an aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.

Main features of the tomato processing line

Tomato processing line is the main product of Shanghai Gofun Machinery Company. Over the past 16 years he has served over 20 countries. We continue to provide high-quality machines and services to food manufacturers around the world.

1. Fresh fruit production capacity can be adjusted from 60 tons/day to 1500 tons/day.

2. Tomatoes can be hot-pressed or cold-pressed.

3. The Brix content of the final ketchup can be designed according to customer requirements. Usually 28-30% or 36-38%.

4. The final ketchup is packed in a sterilized bag and bucketed. This packaging ensures a shelf life of up to 2 years at room temperature. This can significantly reduce shipping and storage costs.

5. All materials are food standard, the main material is SUS304 or SUS316, which fully meets the requirements of food hygiene and safety.

6. In addition to aseptic bagging, we also manufacture metal cans, sachets, standing pouches, glass jars, PET/PP containers, etc.

7. The production line mainly adopts the first international brands. (Steam valve adopts Spirax Sarco, Siemens PLC, etc.)

8. The whole production line features compact and scientific design, stable operation, high efficiency and energy saving, and low steam consumption.

9. Easy to operate and easy to use. All feeding and maintenance areas are designed with feeding and maintenance platforms to ensure operator safety.

10. We can also design custom processing lines for a variety of fruits and vegetables.We can produce clear juices, cloudy juices, purees, concentrated juices, concentrated pulps, fruit powders, jams, vinegars, wines and other products. .

11. The waste generated in the production line can be turned into fertilizer.

Key process of the tomato paste processing line

Now Shanghai Gofun machinery company will introduce the information of tomato paste processing line to show it works.

1. Discharge platform

When fresh tomatoes come in, we usually use lorries. It's going to be a big deal if people drop it off. Therefore, we have designed an unloading platform that uses water cannons to unload the fresh fruits/tomatoes from the trucks and uses water to transport the fresh fruits/tomatoes to the processing line. The unloading platform also has the ability to pre-wash fresh fruit/tomatoes before processing.

2. Elevator

This machine is used to delivery fresh fruit from outside the building to inside.

3. Washing

Wash fresh fruit well before crushing. Both foam and spray washers can be used for cleaning. Additional cleaning stages can be added if cleaning requirements are high. You can also add ultrasonic cleaning or ozone cleaning for better cleaning effect.

4. Sorting

After washing, the surface of the fruit is clean, we can check the situation of all the fruit by human eye, and sort out the bad tomatoes by human.

5. Crushing for tomato processing

GFM-FC series crushers have the most advanced working principle, higher manufacturing precision and best crushing capability. Mainly used for grinding various fruits and vegetables, such as tomatoes, apples, pears, strawberries, celery, etc. Raw materials can be crushed into small particles to enhance the working effect of the following processes. The machine consists of feed hopper, side cover, frame, main shaft, bearing seat, motor, motor structure, exhaust hopper, etc.

6. Preheating

The pre-heater is used to heat the product after crusher, the temperature is adjustable, normally from 45℃ to 85℃. This processing step, would help to higher the juice rate for next step, and also can protect the color and taste of the final product.

7. Pulper and refiner

The machine also rotates at 1470 rpm, creating centrifugal force as the product passes through the sieve, which helps refine the product. I usually use his two stages of pulper and refiner. Each stage has a different screen. The first row has a larger screen, and the second row has a smaller screen. The tomato pulp output of the two stage beater can reach 90%~95%. After pulping, separate the tomato skin and seeds from the tomato pulp. The machine has a heavy workload and stable performance. Easy to operate and replace the screen. Suitable for a variety of fruits such as passion fruit, tomatoes, peaches, apricots, mangoes and apples.

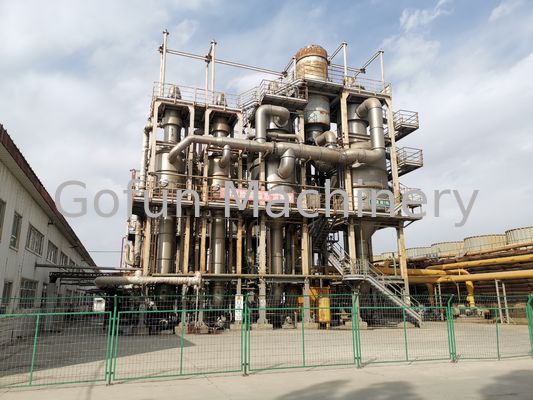

8. Evaporating

A vacuum evaporator is used to concentrate ketchup at low temperature under vacuum. A forced circulation vacuum evaporator is used here. Because it is done under vacuum and low temperature, the flavor and nutrition are kept to the maximum. Here, the tomato pulp is allowed to evaporate to produce a tomato paste, typically 28-30% Brix and 36-38% Brix.

9. Sterilizing

A tube-in-tube sterilizer is used to sterilize ketchup. Sterilization temperature and storage time are adjustable. This machine heats ketchup to a high temperature of about 115°C for 30 seconds and then immediately cools it to room temperature. This way ketchup testing and nutrition can also be protected as much as possible. The whole system adopts programmable control. The operation system adopts the image of a human-machine interface, which is convenient for intuitively grasping the operation status of each part of the equipment.

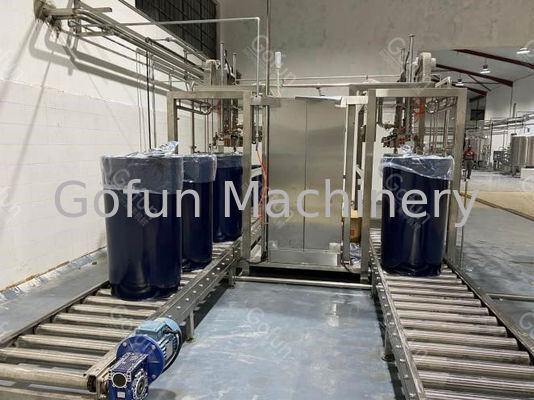

10. Aseptic Filling

Aseptic filling machines are used in combination with in-tube sterilizers. This is a closed loop. Cycles are fully sterilized prior to manufacturing to ensure a sterile environment. The filling cavity is also vapor protected to ensure that the filling environment is also sterile. Security - Provides multiple security methods. Adopts mirror welding technology to achieve clean and smooth welding. Separate control panel. CIP and automatic SIP can be used with the sterilizer. Easily adaptable to various capacities and sizes of sterilization bags.

11. Storage or go blending

The finished product can be stored or used as the raw material to make the tomato sauce or ketchup.

Our Services for tomato processing plant

1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design

After-Sales Service

1. Oversea technical support

2. Oversea equipment maintenance

3. English speaking engineers available to provide technical support
