SUS 304 / 316L Tomato Ketchup Processing Line Energy Saving 10 - 100T/D
Product Details:
Place of Origin: | Shanghai |
Brand Name: | Gofun |
Certification: | ISO, CE certification |
Model Number: | GFM-TPL |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | International standard package for shipping |
Delivery Time: | 90 days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 20 sets per year |
Detail Information |
|||
Capacity: | Customized | Name: | Tomato Paste Processing Machine |
---|---|---|---|
Application: | Tomato | Function: | Tomato Paste Processing |
Feature: | High Efficiency,cheaper Cost | Usage: | Garlic Paste Production Line |
Product Name: | Tomato Paste Processing Line | Power(w): | Per The Capacity |
High Light: | 100T/D Tomato Ketchup Processing Line,SUS304 Tomato Ketchup Processing Line,Energy Saving Tomato Paste Processing Machine |
Product Description
SUS 304/316L Tomato Ketchup Processing Line One-Stop Service 10-100T/D

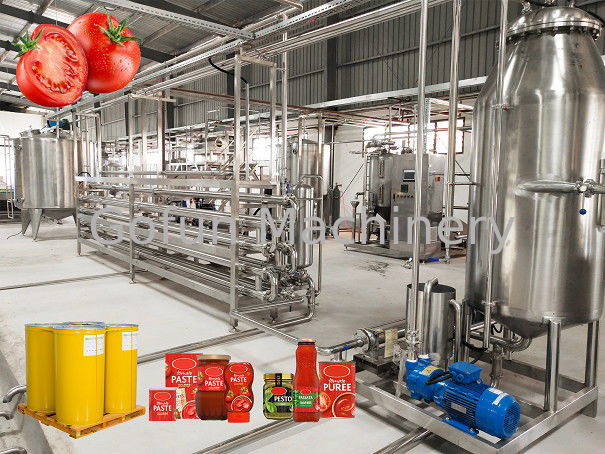

Product description of tomato processing plant
Tomato processing lines can produce from fresh tomatoes to different types of finished products. Popular products such as tomato paste, tomato sauce & ketchup, and tomato juice processing line are produced in aseptic bagged drums from fresh tomatoes to final products.
The processing line mainly includes raw tomato receiving system, washing system, sorting system, crushing system, pulping and refining system, filtration system, concentration system, pasteurization system and aseptic filling system. Then you can get tomato paste in sterile bags in drums.
And the tomato paste in aseptic bags in drums can be further packed in tomato ketchup, sauces, juices, sachets, stand-up pouches, metal cans, PP containers, bottles, gable tops, etc.
Gofun not only provides tomato processing equipment for your factory, but also can provide his one-stop solution from A to Z, including:
- Technical consultation
- customized proposal design
- Equipment manufacturing
- On-site installation commissioning and training
- 1 year after-sales service warranty
- Lifetime service
- package design and purchase
Main parameters of tomato production line
Product name: | One-stop solution for tomato processing line |
Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
Raw material: | Fresh tomato, tomato paste |
End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
Final product Brix: | 28%~30%, 36%~38% |
Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
The main material for machines: | Food grade SUS304 or SUS316 |
Warranty: | 12 months after commissioning |
Operator needed: | About 10~12 persons |
Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
(adjustable to client's country standard) | |
Advantages: | Energy-saving, high efficiency, water-saving |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
The raw material can be fresh tomato, tomato paste, etc. And the final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomato, etc.
For the final package, it can be an aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.
After-Sales Service
1.Overseas technical support
2.Overseas equipment maintenance
3. English speaking engineers available to provide technical support
Key process of the tomato paste processing line
Now Shanghai Gofun machinery company will introduce the information of tomato paste processing line to show it works.
1. Discharge platform
When fresh tomatoes arrive, they are usually unloaded by large trucks, but unloading them manually is a big deal. So, we design a discharge platform, use water guns to discharge the fresh fruits/tomatoes from the truck, and use water to deliver the fresh fruits/tomatoes to the processing line.
2. Elevator
This machine is used to delivery fresh fruit from outside the building to inside.
3. Washing
Before crushing, fresh fruit should be washed carefully. For cleaning, a bubble washer and a spray washer can be used together. Additional stages of cleaning can be added if cleaning requirements are high.
4. Sorting
After washing, the surface of the fruit is clean, we can check the situation of all the fruit by human eye, and sort out the bad tomatoes by human.
5. Crushing for tomato processing
GFM-FC series crushers have the most advanced working principle, higher manufacturing precision and best crushing capability. It is mainly used for crushing many kinds of fruits and vegetables, and can crush raw materials into small particles, which can enhance the working effect of the next processing section.
6. Preheating
The pre-heater is used to heat the product after crusher, the temperature is adjustable, normally from 45℃ to 85℃.
7. Pulper and refiner
This machine also runs at a speed of 1470 r/min, which creates centrifugal force to force the product through the screen, helping to purify the product. I usually use his two stages, Pulper and Refiner, but the screens for each stage are different. The first stage makes the screen bigger, the second stage makes the screen smaller. Double stage pulping machine for tomato pulp yield can reach 90%~95%.
8. Evaporating
Vacuum evaporator is used to concentrate tomato paste under vacuum and low temperature. A forced circulation vacuum evaporator is used here. Because it is done in a vacuum and at a low temperature, the taste and nutrients are not lost as much as possible. And now we evaporate the water from the tomato pulp to make tomato paste. Brix is typically 28-30% and 36-38%.
9. Sterilizing
A tube-in-tube type sterilizer is used to sterilize tomato paste. Sterilization temperature and holding time are adjustable. This machine is used to heat tomato paste to a very high temperature of about 115°C, hold for 30 seconds, and then quickly cool to ambient temperature. It can also protect as long as the whole system adopts programmable control. The operation system uses an image man-machine interface that is convenient for intuitively grasping the operation status of each part of the device.
10. Aseptic Filling
The aseptic filling machine works together with the tube in tube type sterilizer. It’s a closed cycle. Before production, the cycle will be fully sterilized to make sure the aseptic environment. And the filling cavity is also protected by steam to make sure the filling environment is also aseptic. Safety - providing several security methods. Using mirror welding tech to ensure tidy and smooth welding line. Separate control panel. CIP and auto SIP available together with sterilizer. Easy to adjust to match the different volumes and sizes of aseptic bags
11. Storage or go blending
The finished product can be stored or used as the raw material to make the tomato sauce or ketchup.
Our Services for tomato processing plant
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
