Mechanized Production Tomato Paste Processing Line 3T/H 220V / 380V
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Voltage: | 220V/380V,customized | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | Capacity: | Customized |
| Application: | Tomato | Power: | Customized |
| Advantage: | High Quality Service | Product Name: | Tomato Paste Processing Line |
| High Light: | 3T/H Tomato Processing Equipment,Mechanized Tomato Processing Line,220V Tomato Paste Processing Line |
||
Product Description
Mechanized Production 3T/H Tomato Paste Processing Line High Quality Service
Product description of tomato processing plant
Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:
- Technical consultation
- Customized proposal design
- Installation commissioning and training at the site
- Life-long service & 1- year after-sales guarantee
- Package design & Purchasing
Flowchart of tomato paste/ sauce or ketchup processing
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
Key process of the tomato paste processing line
Now Shanghai Gofun machinery company will introduce the information of tomato paste processing line to show it works.

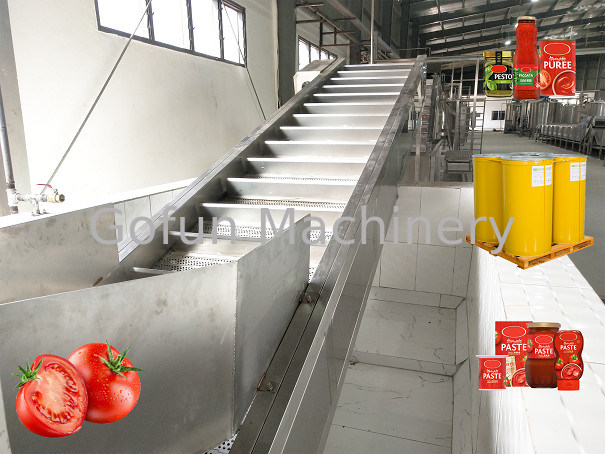

1. Elevator
This machine is used to delivery fresh fruit from outside the building to inside.
2. Washing
Before crushing, need to washing fresh fruit carefully. For washing we can use bubble washing machine and spray washing machine together. If the washing requirement is high, more stages of washing can be added. Also, for better cleaning effect, we can add ultrasonic cleaning and ozone cleaning.
3. Sorting
After washing, the surface of the fruit is clean, we can check the situation of all the fruit by human eye, and sort out the bad tomatoes by human.
4. Crushing for tomato processing
GFM-FC series crusher has most advanced working principle, higher accuracy of manufacture and best crushing functions. It is mainly used for crushing of many kinds of fruits or vegetables, for example: tomato, apple, pear, strawberry, celery, etc. it can crush the raw materials into small particles, which could increase the working effect of next processing section. The machine is composed of feed hopper, side cover, frame, principal axis, bearing block, motor, motor structure, outlet hopper etc.
5. Preheating
The pre-heater is used to heat the product after crusher, the temperature is adjustable, normally from 45℃ to 85℃. This processing step, would help to higher the juice rate for next step, and also can protect the color and taste of the final product.
6. Pulper and refiner
The double stage pulping machine for tomato pulp yield rate can reach 90%~95%.
7. Evaporating
Vacuum Evaporator is used for concentrating the tomato paste under vacuum and low temperature. Here we are using Forced Circulation Vacuum Evaporator.
8. Sterilizing
The operating system adopts the image man-machine interface, which is convenient for intuitively grasping the operating status of each component of the device.
9. Aseptic Filling
Easy to adjust to match the different volumes and sizes of aseptic bags
10. Storage or go blending
The finished product can be stored or used as the raw material to make the tomato sauce or ketchup.
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technical support
Our Services for tomato processing plant
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
