Food Grade 304SUS Tomato Production Line Customized 100T/D
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Capacity: | Customized | Name: | Tomato Paste Processing Machine |
|---|---|---|---|
| Application: | Tomato | Function: | Tomato Paste Processing |
| Feature: | High Efficiency,cheaper Cost | Usage: | Garlic Paste Production Line |
| Product Name: | Tomato Paste Processing Line | Power(w): | Per The Capacity |
| High Light: | Tomato Production Line 100T/D,304SUS Tomato Production Line,Customized Tomato Processing Equipment |
||
Product Description
Advanced Manufacturing Technology 304SUS Tomato Production Line 100T/D
Product description of tomato processing plant
Tomato processing line can produce from fresh tomato to different kinds of final product. The popular products like tomato paste, tomato sauce & ketchup, tomato juice processing line, which produce from fresh tomato to the final product with aseptic bag in drum.

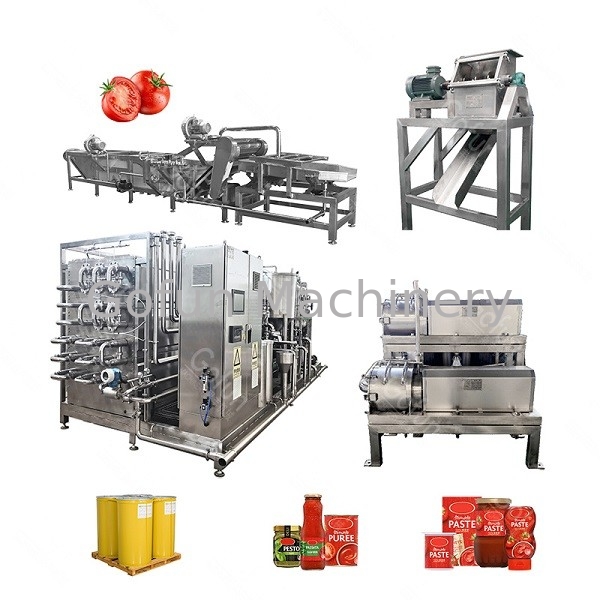

The processing line mainly includes: fresh tomato receiving system, washing system, sorting system, crushing system, pulping and refining system, filtration system, concentrating system, sterilizing system, and aseptic filling system. Then we can get the tomato paste with aseptic bag in drum.
And the tomato paste in aseptic bag in drum can be further produced to tomato ketchup, sauces, juice and filled in sachet, stand-up pouch, metal can, PP container, bottle, gable top, etc.
Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:
- Technical consultation
- Customized proposal design
- Equipment manufacturing
- Installation commissioning and training at the site
- 1- year after-sales guarantee
- Life-long service
- Package design & Purchasing
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
The raw material can be fresh tomato, tomato paste, etc. And the final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomato, etc.
For the final package, it can be an aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technical support
Our Services for tomato processing plant
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
