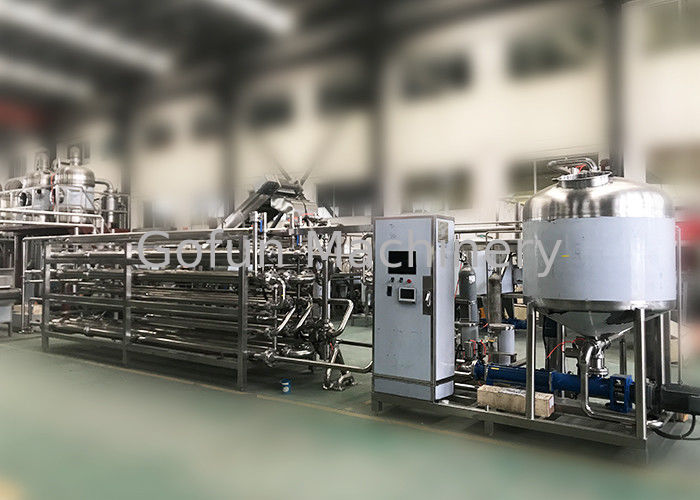

Dairy Milk UHT Sterilizer Machine Milk Processing Line Low Consumption
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | CE, ISO 9001 |
| Model Number: | GFM-TS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per year |
|
Detail Information |
|||
| Material: | 304/316 Stainless Steel | Application: | Milk, Yogurt, Soymilk, Dairy Products |
|---|---|---|---|
| Warranty: | 12 Months | Voltage: | 380V, Customized |
| Condition: | New | Type: | Turnkey Processing Line |
| Advantages: | CIP Cleaning System Available | Capacity: | 0.5-5 Tons/ Hour, Customized |
| Function: | Dairy And Juice Sterilization Line | Usage: | Industrial Usage |
| High Light: | Dairy Milk UHT Sterilization Machine,Milk Processing Line UHT Sterilizer Machine,380V Industrial Milk Pasteurizer |
||
Product Description
Pasteurizer for dairy milk product complete milk processing line low consumption
Company Information
Gofun is the professional manufacturer in China with 16 years experience. Our main business includes:
1st: Provide fruit and vegetable separation equipment, such as: cleaning/sorting/crushing/pulping and refining/evaporation/sterilization/filling/packaging/pasteurization/HPP/etc.
2nd: Provide whole fruit processing plants, typical tomato processing plants, tropical fruit (mango/pineapple/guava/passion fruit/papaya, etc.) processing plants, common fruit (strawberry/apple/pear/peach/apricot) processing plants.
3rd: Provide whole plant of filling line of all kinds of packages. Like aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.
Description
Sterilization temperature and holding time are adjustable. With this machine, fruit and vegetable juice/pulp/fruit puree can be heated to a very high temperature around 115°C, kept for 30 seconds, and then cooled down to ambient temperature immediately. UHT sterilizers can preserve the flavor and nutrients of fruits or vegetables as much as possible.
| Model | GFM10D1000 | GFM10D3000 | GFM10D5000 | GFM10D8000 |
| capacity(L/H) | 1000 | 3000 | 5000 | 8000 |
| power(KW) | 15 | 25 | 40 | 72 |
| System design pressure(MPa) | 4 | 5 | 10 | 16 |
| Steam consumption(kg/h) | 250 | 750 | 1300 | 2000 |
| Compressed air consumption(m³/h) | 12 | 12 | 12 | 12 |
| Cooling water consumption(t/h) | 15 | 25 | 45 | 70 |
| Material sterilization temperature(℃) | 90-125 | 90-125 | 90-125 | 90-125 |
| Sterilization time(s) | 120-180 | 120-180 | 120-180 | 120-180 |
| Feed temperature(℃) | 60-68 | 60-68 | 60-68 | 60-68 |
| Discharge temperature(℃) | ≤40 | ≤40 | ≤40 | ≤40 |
| Exterior dimension(mm) | 9500X2100X3000 | 1100X2100X3000 | 1200X2400X3000 | 1300X2500X3000 |
Application
Shanghai Gofun machinery company offers all kinds of sterilization processing line. The sterilization way can be tubular type sterilizer, tube in tube type sterilizer or others. The package can be aseptic bags, sachet, stand-up pouch, metal can, PP container, PET bottle, glass bottle, gable top, etc. Shanghai Gofun machinery company Can help you produce a variety of fruit and vegetable products.
The capacity of fruit and vegetable sterilizer processing line is varied from 20 T/day to 1500 T/day. The line can also be shared for processing other fruits with similar characteristics. In particular, the tube-in-tube sterilizer is adopted, and the whole sterilization process only takes 30 seconds, which can maintain the freshness of the product. Especially the sterilization rate is not less than 75%. The final product tastes good and has a beautiful color. Different capacity can choose multi-effect evaporator. Can choose fully automatic line or semi-automatic line according to the cost.
| Main configuration of the system | ||
| No. | Item | Brand |
| 1 | PLC | Siemens |
| 2 | Human Machine Interface | Siemens |
| 3 | Steam Reducing Valve | Spirax Sarco |
| 4 | Steam Regulating Valve | Spirax Sarco |
| 5 | Steam Trap Valve | Spirax Sarco |
| 6 | Electric Elements | Schneider |
| 7 | Transducer | Japan Fujifilm |
| 8 | Temperature paperless recorder | YOKOGAWA |
| 9 | Breaker | Schneider |
| 10 | Central relay | Omron |
Principle
-
The product is placed into the heat exchanger unit from the storage tank installed for the sterilizer.
-
Use superheated water to heat the product to the sterilization temperature, keep the product below the product sterilization temperature, and then cool it to the filling temperature with cooling water or frozen water.
-
Before each production shift, sterilize in place the system with aseptic filler together by superheated water.
-
After each shift of production, the system is cleaned in place together with sterile fillers with hot water, lye, and acid.
Advantages
-
Both the material and the heating medium are heated through non-contact heat exchange in their respective sealed systems to ensure the hygiene and safety of the material.
-
The sterilization time is short to ensure that the nutritional content of the material is not destroyed.
-
The machine is made of food-grade stainless steel to ensure that beverage and food equipment meets national safety and hygiene requirements.
-
Good heat transfer performance, high heat recovery rate, low energy consumption.
-
The main control components, valve parts and supporting parts are all imported parts with long service life.
-
PLC control is adopted to automatically control the heating temperature, hot water temperature and steam flow of each section of the material, and it is equipped with an automatic feeding system to ensure that the material achieves the sterilization effect.
-
The device has the advantages of simple structure, convenient cleaning, convenient operation and low maintenance cost.
Why choose us
1. High-tech enterprise with our own professionally team and manufactured factory.
2. The advanced technology is at the leading level at home and abroad, and has obtained technical patents.
3. Location in national key high-tech zone, only 30mins to airport.
4. Strict quality inspection, all products are advanced and durable with high reputation.
5. Good pre-sales and after-sales service.
