SUS304 Automatic Tomato Paste Processing Production Line One Stop Service
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Voltage: | 220V, 380V, Customized | Type: | Complete, Automatic |
|---|---|---|---|
| Material: | 304 Stainless Steel | Capacity: | 60 T/d, 150 T/d, 250 T/d, 1500 T/d, Customized |
| Function: | Tomato Paste Processing | Usage: | Industrial Usage |
| Product Name: | Tomato Processing Line, Multi- Functional | Warranty: | 1 Year |
| Feature: | Labor Saving, High Efficiency, PLC Control | Name: | Multiple Function Fruit Processing Line |
| Condition: | New | ||
| High Light: | 304 Stainless Steel Paste Production Lines,Automatic Tomato Paste Production Line,Industrial Tomato Sauce Processing Line |
||
Product Description
SUS304 One-Stop Service For Tomato Paste Automatic Processing Production Line
Product description of tomato processing plant
A tomato processing line can produce various finished products from fresh tomatoes. Popular products such as tomato paste, tomato sauce, and ketchup are produced by tomato juice processing production lines, which can turn fresh tomatoes into sterile packaged bottled products.
The main processing line includes modern tomato collection systems, cleaning systems, harvesting systems, crushing systems, puffing refining systems, filtration systems, concentration systems, disinfection systems, and aseptic filling systems. Then, the tomato sauce can be packed into barrels and aseptic bags.
Tomato paste in aseptic bags in drums can be processed into tomato ketchup, sauce, water bags, stand-up bags, metal cans, PP bottles, bottles, jars, etc.
Gofun can not only provide tomato processing equipment for your factory, but also provide A to Z one-stop his solutions, such as:
- technical advice
- personalized offer design
- Device manufacturing
- Installation commissioning and on-site training
- 1 year warranty after sale
- Lifetime service
- package design and purchase
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |

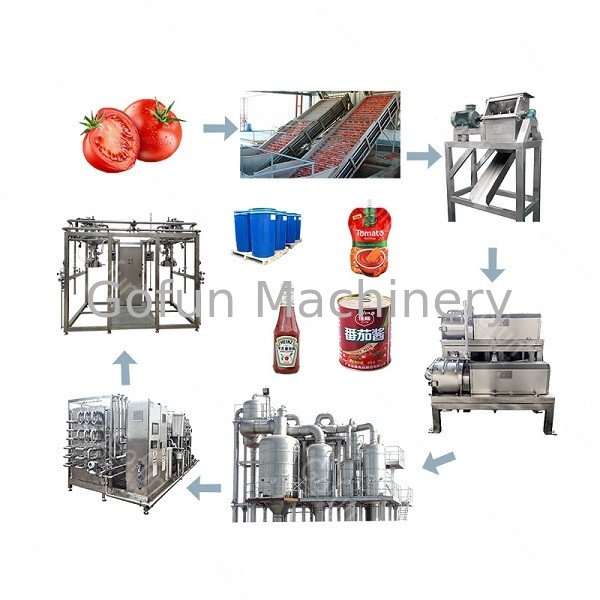

Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
The raw materials are raw tomatoes, tomato paste, etc. Final products include tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, and whole peeled tomatoes.
Final packaging includes aseptic bags, metal cans, sachets, base bags, PP containers, glass bottles, PET bottles, pediments, etc.
Main features of the tomato processing line
The tomato processing line is the flagship product of Shanghai Gofun Machinery Company. For 16 years, we have served over 20 countries. We continue to provide high-quality machines and services to food manufacturers around the world.
1. New product capacity can be adjusted from 60 tons/day to 1500 tons/day.
2. Tomatoes can be mashed hot or cold.
3. BRICS final tomato paste design can be made according to customer's requirements, which means 28-30%, 36-38%.
4. Pour the final tomato puree into sterile bags inside the pot. With this storage method, the shelf life at room temperature can reach up to 2 years, which helps to reduce transportation and storage costs.
5. All foods comply with food standards. The main components are SUS304 or SUS316, which fully comply with food hygiene and safety requirements.
6. In addition to aseptic filling of bags, we can supply bags, small bags, standing bags, glass bottles, PET/PP bottles, etc.
7. The main purpose of the production line is to take the world's first brand. (using Spirax Sarco steam generators, Siemens PLC, etc.)
8. The overall design of the production line is compact and scientific, with stable performance, high strength, energy efficiency, and low steam consumption.
9. It's easy to work with people. All feeding and maintenance areas are built with feeding and maintenance platforms to ensure operator safety.
10. We can also design customized processing lines for different fruits and vegetables. Our processing lines can produce products such as freshwater, turmeric water, lye, sodium water, pulp, fruit powder, myrobalan, vinegar, wine, and more.
11. Waste from the production line can be turned into fertilizer.
Our Services for tomato processing plant
1. Technical support
2. Marketing advice
3. Final packing and design ideas
4. Plant construction and design
After-Sales Service
1. Overseas technical support
2. Overseas equipment maintenance
3. Provide English machine to provide technical support
