Stainless Steel 304 Concentrate Tomato Paste Sauce Processing Line Water Saving
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Application: | Tomato | Function: | Tomato Paste Processing |
|---|---|---|---|
| Feature: | High Efficiency | Usage: | Washing And Drying |
| Product Name: | Tomato Paste Processing Line | Voltage: | 220V/380V |
| Type: | Tomato Puree Making Machine | Power(w): | Adjustable |
| Condition: | New | Warranty: | 1 Year |
| High Light: | 380V Tomato Concentrate Sauce Processing Line,Stainless Steel 304 Sauce Processing Line,Water Saving Tomato Paste Processing Machinery |
||
Product Description

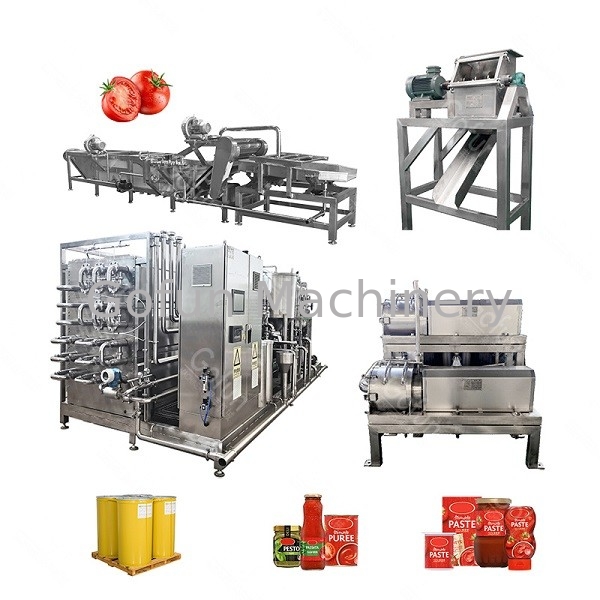

Stainless Steel 304 Material Tomato Paste Sauce Concentrate Processing Line
Tomato Processing Plant Product Description
Tomato processing lines are capable of producing a wide range of products, starting from fresh tomatoes and ending with various types of processed goods. These can include popular items like tomato paste, crushed tomatoes, and tomato juice. The processing lines can take fresh tomatoes and turn them into a final product that is packaged in aseptic bags or barrels.
The tomato processing line typically consists of several key stages, which include the intake of fresh tomatoes, a cleaning process, sorting of the tomatoes, crushing them, refining and pulping the mixture, filtration to remove any impurities, concentration of the mixture, sterilization, and a final aseptic filling process. Once this process is complete, the end result is a high-quality ketchup product, which is packaged into sterile bags that are then placed into buckets for distribution.
The ketchup has been packaged into aseptic barrel bags, it can then be further processed into different products, such as ketchup sauce and juice. These products can be packaged in a variety of different formats, including bags, square bottom bags, cans, PP containers, bottles, and gable caps. This allows for the product to be distributed and sold in different markets and to meet the varying needs of customers.
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Key process of the tomato paste processing line
Now Shanghai Gofun machinery company will introduce the information of tomato paste processing line to show it works.
1. Discharge platform
2. Elevator
3. Washing
4. Sorting
5. Crushing for tomato processing
6. Preheating
7. Pulper and refiner
8. Evaporating
9. Sterilizing
10. Aseptic Filling
11. Storage or go blending
