10T/H SUS 304 Tomato Paste Processing Line Energy Saving
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Material: | 304 Stainless Steel | Capacity: | 60 T/d, 150 T/d, 300 T/d, 600 T/d, 1500 T/d |
| Function: | Tomato Paste Processing | Feature: | High Efficiency, Cost Effective |
| Product Name: | Tomato Paste Processing Line | After-sales Service: | Field Installation, Commissioning And Training |
| Application: | Tomato,fruit Jam | Usage: | Industrial Usage |
| High Light: | SUS 304 Tomato Paste Production Line,10T/H Tomato Sauce Production Line,Tomato Paste Processing Line Energy Saving |
||
Product Description
10T/H Convenient After Care Service Tomato Paste Processing SUS 304

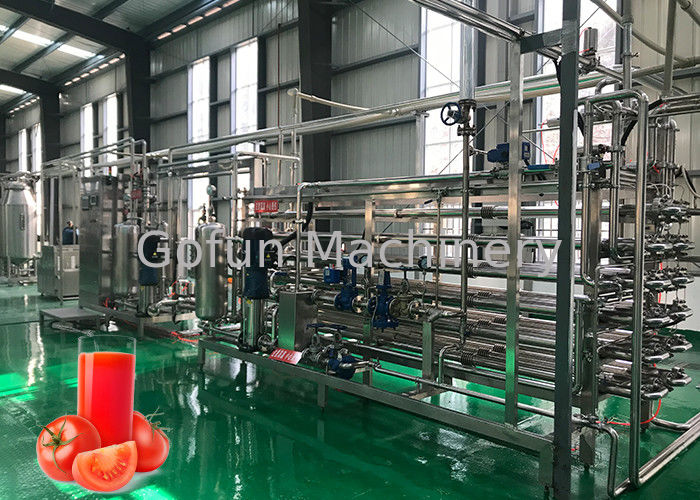

Product description of tomato processing plant
Our tomato processing factory produces high-quality tomato products that are perfect for use in a variety of culinary applications. Our products are made from the freshest and highest quality tomatoes, which are carefully selected and processed to retain their natural flavor, color, and nutrients.
We offer a range of tomato products including tomato paste, crushed tomatoes, diced tomatoes, and tomato sauce. All of our products are processed using state-of-the-art equipment and techniques to ensure consistency and quality.
The production line mainly includes fresh tomato receiving system, cleaning system, sorting system, crushing system, pulp refining system, filtering system, concentration system, sterilization system, and aseptic filling system. Then, the tomato sauce can be packed into aseptic bags on a drum.
The tomato sauce in the aseptic bags can be further processed into tomato paste, sauce, and juice, and packaged in various forms including pouches, stand-up pouches, metal cans, PP containers, bottles, and tetra top packaging.
Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:
- Technical consultation
- Customized proposal design
- Equipment manufacturing
- Installation commissioning and training at the site
- 1- year after-sales guarantee
- Life-long service
- Package design & Purchasing
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
The raw materials can be fresh tomatoes, tomato sauce, etc., and the final products can be tomato paste, tomato sauce, ketchup, tomato juice, tomato powder, peeled whole tomatoes, etc.
For the final package, it can be an aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.
Main features of the tomato processing line
The tomato processing line is the key product of Shanghai Gofun machinery company. We served more than 20 countries in the past 16 years. We keep providing high-quality machines and services to food manufacturers all over the world.
1. The fresh fruit production capacity can be customized from 60 tons/day to 1500 tons/day.
2. Tomatoes can be hot-pressed or cold-pressed.
3. The final ketchup Brix can be designed according to customer requirements. Typically 28-30% or 36-38%.
4. The final tomato sauce is packed in aseptic bags, which have a shelf life of 2 years at room temperature. This can significantly reduce transportation and storage costs.
5. All materials used are food-grade and include:Stainless steel - used for processing equipment and containers, known for its corrosion resistance, ease of cleaning, and high-temperature tolerance.All of these materials are food safety certified.
6. Apart from aseptic bag filling, we also offer packaging options such as metal cans, pouches, stand-up pouches, glass bottles, PET/PP containers, etc.
7. The production line mainly adopts the first international brand. (Steam valve uses Spirax Sarco, Siemens PLC, etc.)
8. The production line is designed with a compact and scientific approach, ensuring stable operation, high efficiency, energy savings, and low steam consumption.
9. The operation is simple and user-friendly. All rearing and maintenance areas are designed with rearing and maintenance platforms to ensure operator safety.
10. We can also design customized processing lines for different types of fruits and vegetables. These processing lines can produce a variety of products such as clear juice, cloudy juice, puree, concentrated juice, concentrated pulp, fruit powder, jam, vinegar, wine, and more.
11. The waste produced by the production line can be used as fertilizer production.
Our Services for tomato processing plant
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technical support
