Automatic Apple And Pear Paste / Pulp / Sauce / Jam Sterilizer Tube In Tube
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | CE, ISO |
| Model Number: | GFM-SS-010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per year |
|
Detail Information |
|||
| Product Name: | Sterilization Line | Material: | 304/316 Stainless Steel |
|---|---|---|---|
| Application: | Apple And Pear Paste/ Pulp/ Sauce | Warranty: | 12 Months |
| Voltage: | 380V, Customized | Type: | Turnkey Processing Line |
| Advantages: | Easy Clean And Maintainence | Capacity: | 5t/h, 10t/h, Customized |
| Function: | Jam, Puree, Pulps Sterilization Line | Feature: | High Efficiency |
| High Light: | Automatic Apple UHT Sterilizer Machine,Jam Sterilizer Tube In Tube,Apple UHT Sterilizer Machine |
||
Product Description

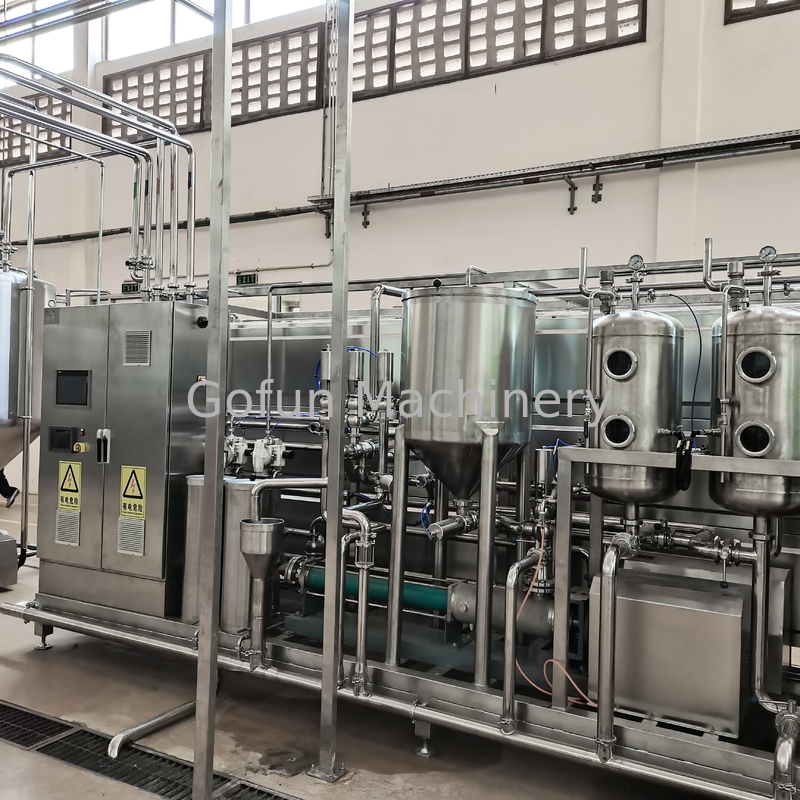

Automatic Tube in Tube Apple and Pear Paste/ Pulp/ Sauce/ Jam Sterilizer
Company Information
Gofun Co., Ltd. specializes in providing turnkey solutions for a diverse range of fruit and vegetable processing and packaging lines, including apple, pear, peach, mango, apricot, and more. Their comprehensive solutions have garnered high praise from customers in both domestic and international markets. These machines have been exported worldwide, reaching customers in Asia, Africa, South America, Europe, and North America.
The core objective of Gofun Co., Ltd. is to develop exceptional food machinery and make significant contributions to the global agriculture industry. They are dedicated to building a bright future and fostering mutually beneficial relationships with individuals and friends from around the world.
Description
The sterilization temperature and holding time of this machine can be easily adjusted. It enables the heating of fruit and vegetable juices, pulp, and fruit purees to a high temperature of approximately 115°C. These products are then held at this temperature for a duration of 30 seconds before being rapidly cooled to the ambient temperature. The UHT (Ultra-High Temperature) sterilizers employed in this process aim to preserve the flavor and nutritional composition of fruits and vegetables to the maximum extent possible, ensuring the highest quality of the final products.
| Model | GFM10D1000 | GFM10D3000 | GFM10D5000 | GFM10D8000 |
| capacity(L/H) | 1000 | 3000 | 5000 | 8000 |
| power(KW) | 15 | 25 | 40 | 72 |
| System design pressure(MPa) | 4 | 5 | 10 | 16 |
| Steam consumption(kg/h) | 250 | 750 | 1300 | 2000 |
| Compressed air consumption(m³/h) | 12 | 12 | 12 | 12 |
| Cooling water consumption(t/h) | 15 | 25 | 45 | 70 |
| Material sterilization temperature(℃) | 90-125 | 90-125 | 90-125 | 90-125 |
| Sterilization time(s) | 120-180 | 120-180 | 120-180 | 120-180 |
| Feed temperature(℃) | 60-68 | 60-68 | 60-68 | 60-68 |
| Discharge temperature(℃) | ≤40 | ≤40 | ≤40 | ≤40 |
| Exterior dimension(mm) | 9500X2100X3000 | 1100X2100X3000 | 1200X2400X3000 | 1300X2500X3000 |
Application
Shanghai Gofun Machinery Co., Ltd. provides various sterilization processing lines. Sterilization methods include a tube sterilizer, a tube-in-tube sterilizer, and the like. Packaging forms include aseptic bags, pouches, stand-up pouches, metal cans, PP containers, PET bottles, glass bottles, and roof covers. Shanghai Gaofeng Machinery Co., Ltd. can help you produce a variety of fruit and vegetable products.
The fruit and vegetable sterilizer processing line offers a wide production capacity range, spanning from 20 tons/day to 1500 tons/day. These lines can be flexibly utilized to process other fruits that share similar characteristics. Notably, the line incorporates a tube-in-tube sterilizer that ensures a brief sterilization time of just 30 seconds, effectively preserving the freshness of the products. With a sterilization rate exceeding 75%, the final products exhibit excellent taste and vibrant color.
To meet specific production needs, different capacities of multi-effect evaporators are available for selection. Furthermore, customers have the option to choose between a fully automatic line or a semi-automatic line, depending on cost considerations and operational preferences.
| Main configuration of the system | ||
| No. | Item | Brand |
| 1 | PLC | Siemens |
| 2 | Human Machine Interface | Siemens |
| 3 | Steam Reducing Valve | Spirax Sarco |
| 4 | Steam Regulating Valve | Spirax Sarco |
| 5 | Steam Trap Valve | Spirax Sarco |
| 6 | Electric Elements | Schneider |
| 7 | Transducer | Japan Fujifilm |
| 8 | Temperature paperless recorder | YOKOGAWA |
| 9 | Breaker | Schneider |
| 10 | Central relay | Omron |
Principle
- Put the product from a storage tank mounted for the sterilizer into the heat exchanger unit.
- Heat the product by superheated water till the sterilizing temp and hold the product under the temp for sterilizing the product, then cool down Into filling temperature by cooling water or chilled water.
- Before each production shift, sterilize in place the system with aseptic filler together by superheated water.
- After each production shift, clean in place the system with aseptic filler together by hot water, alkali liquid and acid liquid.
Advantages
- The material and heat transfer medium in the sterilizer undergo contactless heat exchange within their respective closed systems. By utilizing this closed system approach, there is no direct contact between the material and the heat transfer medium, ensuring the integrity and purity of the processed materials throughout the sterilization process.
- The sterilization time is shortened so as not to destroy the nutritional components of the material.
- This machine is made of food grade stainless steel, ensuring that the beverage and food equipment meets national safety and hygiene requirements.
- Good heat transfer performance, high heat recovery rate, low energy consumption
- The main control components, valve parts and support parts are all imported parts and have a long service life.
- The sterilizer system incorporates PLC (Programmable Logic Controller) control, enabling automatic regulation of the heating temperature, hot water temperature, and steam flow in each section of the material. Additionally, an automatic feeding system is implemented to ensure that the material achieves the desired sterilization effect.
- This equipment has the advantages of simple structure, easy cleaning, easy operation and low maintenance cost.
Why choose us
1. A high-tech enterprise with its own professional team and manufacturing plant.
2.The advanced technology is the top level in Japan and overseas, and we have acquired a technology patent.
3. Located in the national key high-tech area, only 30 minutes drive from the airport.
4. Strict quality inspection, all products are advanced and durable, enjoying high reputation.
5. Excellent pre-sales and after-sales service.
