Food Grade SUS304 Tomato Production Line Customized 100T/D
  • Food Grade SUS304 Tomato Production Line Customized 100T/D
  • Food Grade SUS304 Tomato Production Line Customized 100T/D
  • Food Grade SUS304 Tomato Production Line Customized 100T/D
  • Food Grade SUS304 Tomato Production Line Customized 100T/D
  • Food Grade SUS304 Tomato Production Line Customized 100T/D
  • Food Grade SUS304 Tomato Production Line Customized 100T/D
  • Food Grade SUS304 Tomato Production Line Customized 100T/D

Food Grade SUS304 Tomato Production Line Customized 100T/D

Place of Origin Shanghai
Brand Name Gofun
Certification ISO, CE certification
Model Number GFM-TPL
Product Details
Capacity:
Customized
Application:
Tomato
Feature:
High Efficiency,cheaper Cost
Usage:
Garlic Paste Production Line
Product Name:
Tomato Paste Processing Line
Power(w):
Per The Capacity
Voltage:
220V/380V
Warranty:
1 Year
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Highlight:

Food Grade SUS304 Tomato Production Line

,

100T/D Tomato Production Line

,

Water Saving Tomato Processing Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
International standard package for shipping
Delivery Time
90 days
Payment Terms
T/T, L/C, Western Union
Supply Ability
20 sets per year
Product Description

Advanced Manufacturing Technology 304SUS Tomato Production Line 100T/D



Product description of tomato processing plant



Tomato processing lines are capable of transforming fresh tomatoes into a wide range of end products. Among the popular products are tomato paste, ketchup, and tomato juice. The tomato processing line follows a comprehensive process, starting from fresh tomatoes and culminating in the production of aseptic bagged barrels.

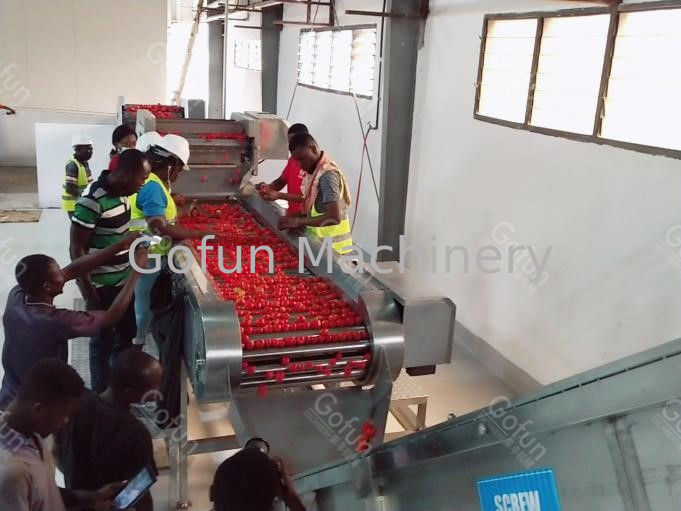

The process begins with the reception of fresh tomatoes, followed by washing and sorting to ensure the highest quality. The tomatoes then undergo various stages, including crushing, refining, and concentration, to obtain the desired consistency and flavor.



The processing line mainly includes: fresh tomato receiving system, washing system, sorting system, crushing system, pulping and refining system, filtration system, concentrating system, sterilizing system, and aseptic filling system. Then we can obtain tomato sauce filled in a sterile bag in the roller drum.



Barrel-packed aseptic bag ketchup can be further produced into ketchup, sauce, fruit juice, and can be filled into sachets, stand-up pouches, metal cans, PP containers, bottles, gable tops, etc.



Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:

  • Technical consultation
  • Customized proposal design
  • Equipment manufacturing
  • Installation commissioning and training at the site
  • 1- year after-sales guarantee
  • Life-long service
  • Package design & Purchasing



Main parameters of tomato production line



Product name: One-stop solution for tomato processing line
Fresh fruit input capacity: 500kg per hour ~ 25 tons per hour
Raw material: Fresh tomato, tomato paste
End product: Tomato paste, tomato sauce or ketchup, tomato juice, etc
Final product Brix: 28%~30%, 36%~38%
Final package: Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc
The main material for machines: Food grade SUS304 or SUS316
Warranty: 12 months after commissioning
Operator needed: About 10~12 persons
Voltage: 380V 50Hz/ 110V 60Hz/ 415V 50Hz
(adjustable to client's country standard)
Advantages: Energy-saving, high efficiency, water-saving

Flowchart of tomato paste/ sauce or ketchup processing



FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING



Food Grade SUS304 Tomato Production Line Customized 100T/D 0



Final products & Package types for tomato project



Shanghai Gofun machinery company offers all kinds of the tomato processing line.



The raw material can be fresh tomato, tomato paste, etc. And the final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomato, etc.

Food Grade SUS304 Tomato Production Line Customized 100T/D 1Food Grade SUS304 Tomato Production Line Customized 100T/D 2

The final packaging includes aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, gable tops, etc.

Food Grade SUS304 Tomato Production Line Customized 100T/D 3



After-Sales Service



1.debugging equipment

2.Oversea technical support

3.Oversea equipment maintenance

4.English speaking engineers available to provide technical support





Our Services for tomato processing plant



1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design
