Apple Juice Complete Flavored Beverage Processing Line Stable Performance
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | CE, ISO 9001 |
| Model Number: | GFM-TS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per year |
|
Detail Information |
|||
| Material: | 304/316 Stainless Steel | Application: | Milk, Yogurt, Soymilk, Dairy Products |
|---|---|---|---|
| Warranty: | 365 Days After Comission | Voltage: | 380V, Customized |
| Type: | Turnkey Processing Line | Advantages: | CIP Cleaning System Available |
| Capacity: | 0.5-5 Tons/ Hour, Customized | Function: | Dairy, Juice Or Beverage Sterilizing |
| Power(w): | 10Kw-700Kw | Advantage: | High Efficiency |
| High Light: | Apple Juice Processing Line 10Kw,SUS304 Flavored Beverage Processing Line,Flavored Beverage UHT Sterilizer Machine |
||
Product Description

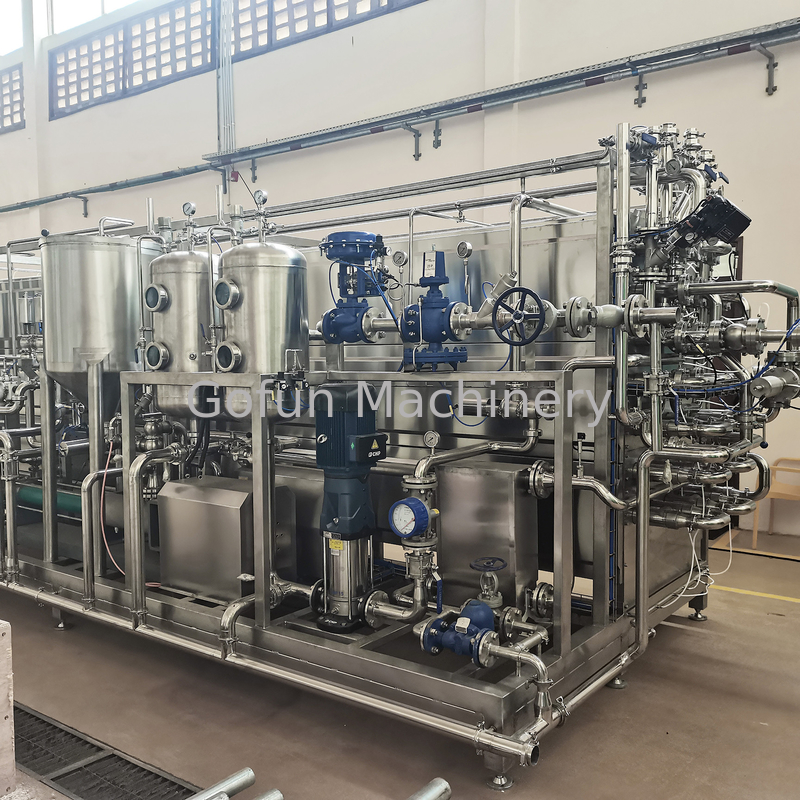

Sterilizer for apple juice complete flavored beverage processing line stable performance
Description
The sterilizing temperature and holding time of our machine are customizable. Using this equipment, fruit or vegetable juice, paste, or pulper can be heated to a high temperature of approximately 115℃, held for 30 seconds, and rapidly cooled to ambient temperature. The UHT sterilizer is designed to preserve the taste and nutrients of fruits or vegetables to the greatest extent possible.
The working principle of UHT sterilizer:
-
Put the product from a storage tank mounted for the sterilizer into the heat exchanger unit.
-
Heat the product by superheated water till the sterilizing temp and hold the product under the temp for sterilizing the product, then cool down Into filling temperature by cooling water or chilled water.
-
Before each production shift, sterilize in place the system with aseptic filler together by superheated water.
-
Following each production shift, the system, including the aseptic filler, is thoroughly cleaned in place using hot water, alkaline solution, and acid solution.
Parameters
| Model | GFM10D1000 | GFM10D3000 | GFM10D5000 | GFM10D8000 |
| capacity(L/H) | 1000 | 3000 | 5000 | 8000 |
| power(KW) | 15 | 25 | 40 | 72 |
| System design pressure(MPa) | 4 | 5 | 10 | 16 |
| Steam consumption(kg/h) | 250 | 750 | 1300 | 2000 |
| Compressed air consumption(m³/h) | 12 | 12 | 12 | 12 |
| Cooling water consumption(t/h) | 15 | 25 | 45 | 70 |
| Material sterilization temperature(℃) | 90-125 | 90-125 | 90-125 | 90-125 |
| Sterilization time(s) | 120-180 | 120-180 | 120-180 | 120-180 |
| Feed temperature(℃) | 60-68 | 60-68 | 60-68 | 60-68 |
| Discharge temperature(℃) | ≤40 | ≤40 | ≤40 | ≤40 |
| Exterior dimension(mm) | 9500X2100X3000 | 1100X2100X3000 | 1200X2400X3000 | 1300X2500X3000 |
Application
Shanghai Gofun Machinery Company provides a wide range of sterilization processing lines. The sterilization methods available include tubular type sterilizers, tube in tube type sterilizers, and others. The processing capacity of fruit and vegetable sterilization lines ranges from 20 tons/day to 1500 tons/day. These lines can also be utilized for processing other fruits that share similar characteristics. The tubular type sterilizer is specifically designed for a quick sterilization process, lasting only 30 seconds, which helps to preserve the freshness of the products. The sterilization rate is guaranteed to be no less than 75%. The end products exhibit excellent taste and appealing color. For different capacities, the option of a multi-effect evaporator is available. The choice between a fully automatic or semi-automatic line can be made based on cost considerations.
Advantages
-
Both the material and the heating medium are heated by non-contact heat exchange in their respective sealing systems to ensure the hygienic safety of the material.
-
The sterilization time is short to ensure that the nutrients of the material are not destroyed.
-
The machine is made of food grade stainless steel to ensure that beverages and food equipment meet national safety and health requirements.
-
Good heat transfer performance, high heat recovery and low energy consumption
-
The main control components, valve parts and supporting parts are imported parts with long service life.
-
It adopts PLC control to automatically control the heating temperature, hot water temperature and steam flow rate of each section of material, and is equipped with automatic feeding system to ensure the material achieves sterilization effect.
-
The device has the advantages of simple structure, convenient cleaning, convenient operation and low maintenance cost.
