380V Fully Automatic Tomato Paste Processing Machine Water Saving For Factory
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Voltage: | Customized | Function: | Tomato Jam/ Paste Processing |
|---|---|---|---|
| Capacity: | 3~5 Tons Per Hour, Customized | Product Name: | Tomato Paste Processing Line |
| Material: | SUS304 Stainless Steel | Feature: | High Efficiency, Cost Effective, Stable Performance |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Condition: | New |
| Type: | Turnkey Processing Line | Power: | 7.5-15kw |
| High Light: | Water Saving Tomato Paste Production Line,Automatic Tomato Paste Processing Machine 380V |
||
Product Description
380V Fully Automatic Factory Tomato Paste Processing Water Saving
Product description of tomato processing plant
The production line is capable of producing a range of finished products from fresh tomatoes. Popular products include ketchup, ketchup and ketchup paste. Additionally, there is a tomato juice production line that utilizes sterile can bags from the initial stages of fresh tomatoes to the production of the final product.

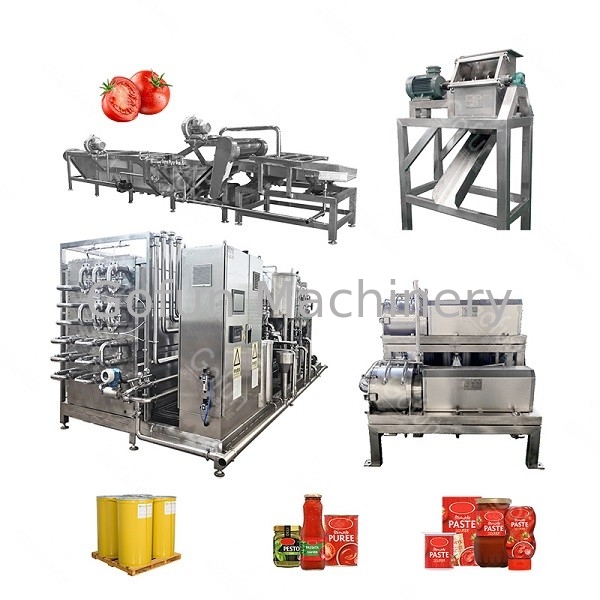

The configuration of the production line typically consists of various components, including a new tomato picking system, cleaning systems, sorting systems, grinding systems, filtration and purification systems, concentrating systems, sterilization systems, and aseptic filling systems. This comprehensive setup ensures the production of high-quality ketchup, which is packaged in clean bags or buckets.
And can produce aseptic ketchup bags for ketchup, sauce, juice and packaging bags, stand-up bags, metal cans, PP containers, bottles, sprockets, etc.
Gofun can not only provide tomato processing equipment to factories, but also provide complete solutions from A to Z, including:
- technical advice
- custom solution design
- equipment manufacturing
- Installation, commissioning and on-site training
- 1 year after-sales warranty
- lifetime service
- Design and supply of packaging
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
Raw products are raw tomatoes, tomato paste, etc., and finished products are ketchup, ketchup, ketchup, tomato juice, tomato powder, peeled whole tomatoes, etc.
Final packaging includes sterile bags, canisters, envelopes, block bottoms, PP containers, glass bottles, PET gable bottles, etc.
Main features of the tomato processing line
For the past 16 years, Shanghai Gofun Machinery Company has been a leading manufacturer of tomato processing lines, making it our flagship product. Our expertise in this field has allowed us to serve customers from over 20 countries. Our primary goal is to provide food manufacturers worldwide with exceptional machinery and services, guaranteeing access to top-quality equipment for their tomato processing requirements.
1. The capacity for processing fresh fruit can be tailored to meet specific requirements, ranging from 60 tons per day to 1500 tons per day.
2. The tomato can be hot crushed or cold crushed.
3. The Brix of final tomato paste can be designed as the customer’s requirement, normally it would be 28-30% or 36-38%.
4. The tomato paste produced is packaged in aseptic bags inside drums, which effectively extends its shelf life to up to two years at ambient room temperature. This innovative packaging method not only ensures product quality but also leads to substantial cost savings for our customers by reducing transportation and storage expenses.
5. All the materials are food standard, the main material is SUS304 or SUS316, which fully meets the requirements of food hygiene and safety.
6. Besides aseptic bag filling, we can also provide metal can, small sachet, stand-up pouch, glass jar, PET/PP container, etc.
7. Key points of the production line adopt the international first brand. (Steam valve adopts Spirax Sarco, Siemens PLC etc.)
8. The entire production line is compact and scientifically designed to ensure stable, efficient and energy-saving operation. Through optimization, the system minimizes steam consumption, resulting in cost-effective operation and reduced energy requirements.
9. The operation of the production line is user-friendly and straightforward. It incorporates humanized design elements, such as feeding and maintenance platforms in all relevant areas, to prioritize the safety and security of the operators.
10.We has the expertise to create tailor-made processing lines that are specifically designed to meet the requirements of different types of fruits and vegetables. Our versatile production lines are capable of manufacturing a diverse range of products, including clear juice, turbid juice, original pulp, concentrated juice, concentrated pulp, fruit powder, jam, vinegar, wine, and various other products.
11. The waste from the production line can be produced into fertilizer.
