Stainless Steel 304 Concentrate Tomato Paste Sauce Processing Line Water Saving
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Application: | Tomato | Function: | Tomato Paste Processing |
|---|---|---|---|
| Feature: | High Efficiency | Product Name: | Tomato Paste Processing Line |
| Voltage: | 220V/380V | Type: | Tomato Puree Making Machine |
| Condition: | New | Warranty: | 1 Year |
| After-sales Service Provided: | Commissioning And Training | Capacity: | Can Be Customized |
| High Light: | Water Saving Tomato Paste Processing Line,Automatic Concentrate Tomato Sauce Processing Line,Tomato Sauce Processing Line SUS304 |
||
Product Description
Stainless Steel 304 Material Tomato Paste Sauce Concentrate Processing Line
Tomato Processing Plant Product Description
Tomato processing lines have the ability to manufacture a diverse array of products, beginning with fresh tomatoes and concluding with a variety of processed goods. These goods encompass well-known items such as tomato paste, crushed tomatoes, and tomato juice. The processing lines are designed to transform fresh tomatoes into a final product that is packaged in aseptic bags or barrels.
The tomato processing line generally comprises several essential stages. These stages encompass the intake of fresh tomatoes, a cleaning procedure, sorting the tomatoes, crushing them, refining and pulping the mixture, filtration to eliminate impurities, concentration of the mixture, sterilization, and a final aseptic filling process. After completing this process, the outcome is a premium ketchup product, which is packaged in sterile bags and subsequently placed into buckets for distribution.
Once the ketchup is packaged into aseptic barrel bags, it can undergo additional processing to create various products, such as ketchup sauce and juice. These products can be packaged in a diverse range of formats, including bags, square bottom bags, cans, PP containers, bottles, and gable caps. This enables the product to be distributed and sold in different markets, catering to the diverse requirements of customers.
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Key process of the tomato paste processing line
Now Shanghai Gofun machinery company will introduce the information of tomato paste processing line to show it works.
1. Discharge platform
2. Elevator
3. Washing
4. Sorting
5. Crushing for tomato processing
6. Preheating
7. Pulper and refiner
8. Evaporating
9. Sterilizing

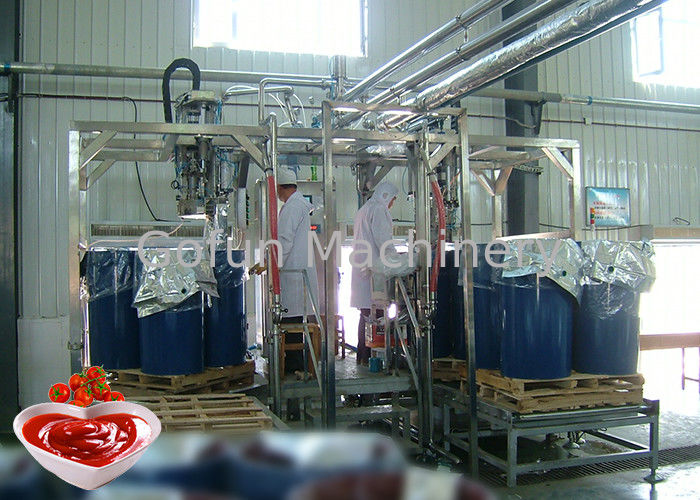

10. Aseptic Filling
11. Storage or go blending
