CE Certificated Mango Juice Sterilizing Machine / Plate / Equipment
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Gofun |
| Model Number: | GFM-IFD-007 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, L/C, Visa |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Certification: | CE/ISO9001 | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 220/380/440V, According To Customers |
| Material: | Food Standard SUS 304, 316, Accourding To Customer | Capacity: | 20T/day ~ 1500T/day, According To Customers |
| Application: | Fresh Mango, Also Available For Fruit With Similar Characteristic | End Products: | Fruit And Vegetable Juice |
| Special Process: | PREHEATING ⇒ PULPER & REFINER ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM | Name: | Uht Milk Machine |
| Function: | High Temperature High Pressure Sterilizing | Control System: | Automatic Control System |
| High Light: | Mango Juice Sterilizing Equipment,Mango Juice Sterilizing Machine,Mango Juice UHT Sterilizing Machine |
||
Product Description

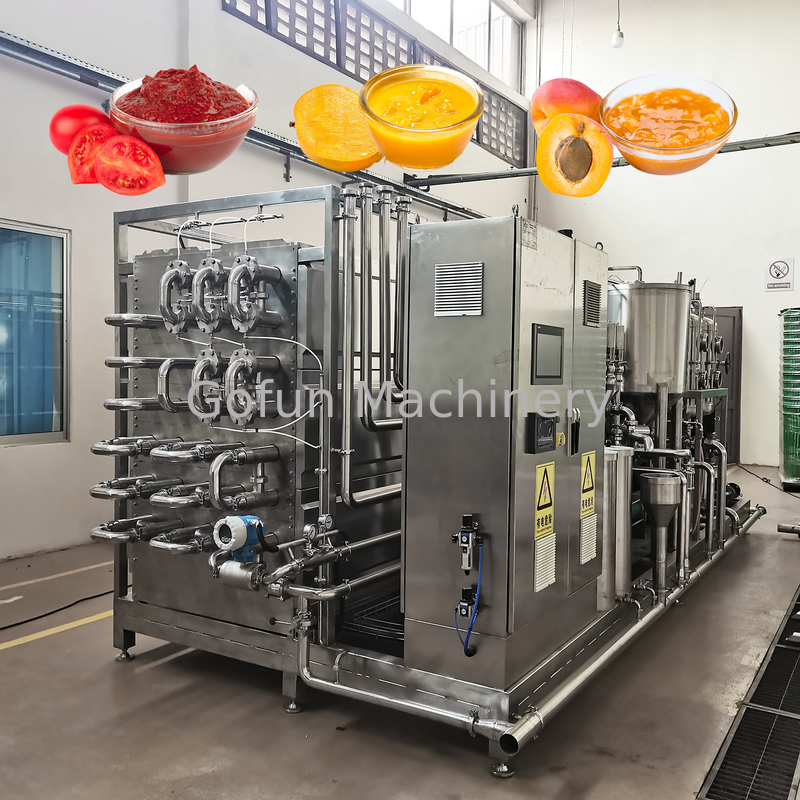

CE certificated mango juice Sterilizing equipment/ plate/ machine
Description
With years of experience in the fruit processing industry and the latest advanced techniques, Gofun has designed and developed the GFM-UHT Automatic UHT Tubular Sterilization System. This high-temperature sterilizer is capable of heating, preserving heat, heat recovery, and cooling simultaneously. During preheating and sterilization, the system maximizes heat recovery for energy efficiency.
Gofun offers two types of tubular sterilizers to cater to different requirements:
Tube in Tube Type Sterilization System:
The Tube in Tube Type Sterilizer is specifically designed for processing concentrated pastes and other high-viscosity materials. This equipment features a four-layer casing structure, utilizing heated water as the heating medium for instant heating and sterilization of the material. Cooling water or ice water is then used to rapidly cool the sterilized material. The heat exchange medium flows within the innermost two layers and the outermost layer of the tube, ensuring maximum heat exchange area and efficiency. This design enables uniform internal temperature distribution and thorough sterilization of the material.
Tubular Type Sterilization System:
The Tubular Type Sterilizer is widely employed in the sterilization of fruit juice, tea beverages, milk, and other liquid food products. Throughout the sterilization process, the system automatically controls and maintains the temperature of the materials, ensuring effective and safe sterilization.
Gofun's UHT Tubular Sterilization Systems offer reliable and efficient solutions for the preservation and sterilization of various food products, meeting the highest quality and safety standards in the industry.
Mango Juice Processing Line
CLEAR JUICE: FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
CLOUDY JUICE: FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Paraments
| Model | GFM-AF-3 | GFM-AF-6 |
| Capacity | 3-4T/H | 6-8T/H |
| Aseptic bag size |
1-220 liters aseptic bag (Normal) |
1-220 liters aseptic bag (Normal) |
| Steam consumption | 20kg per hour | 40kg per hour |
| Compressed air consumption | 0.3m³per min (0.8Mpa) | 0.3m³ per min (0.8Mpa) |
| Weight error for each bag: | ±0.5% | ±0.5% |
| Power | 1kw/6.5kw(with dynamic conveyer) | 13kw |
| Dimension | 2300 x 2000x2500mm (I*w*h) | 3500 x 2000 x 2500mm (l*w*h) |
Features
1. Wide application range and easy maintenance
2. Advanced design, steel structure, strong and beautiful
3. Small measurement error, high sensitivity, stability and reliability
4. Low power consumption, low noise, easy operation
5. Adjustable sorting level, high efficiency and high output
6. Automatic protection function to prevent equipment damage due to incorrect operation of reverse connection
7. Advanced pre-arrangement technology, labor saving.
8.Durable and well-designed fruit bowl that won't damage fruit and save cost.
Related Machine
Company Information
Gofun offers comprehensive turnkey solutions for fruit and vegetable processing and packaging lines, catering not only to tomato paste production but also to a variety of fruits such as apple, pear, peach, mango, apricot, and more. These solutions have garnered widespread acclaim from satisfied customers in both domestic and international markets. Gofun's machines are exported worldwide, reaching countries across Asia, Africa, South America, Europe, and North America. The company is committed to creating top-notch food machinery and contributing to the advancement of global agriculture. Gofun values the establishment of prosperous prospects and mutually beneficial relationships with individuals and friends from all around the world.
Our Services for UHT Sterilizer Machine
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technical support
