Food Grade SUS304 Tomato Production Line Customized 100T/D
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Certification: | ISO, CE certification |
| Model Number: | GFM-TPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 90 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Capacity: | 1-20t/h,Customized | Application: | Tomato |
|---|---|---|---|
| Feature: | High Efficiency | Usage: | Tomato Paste/ketchup Production Line |
| Product Name: | Tomato Paste Processing Line | Power(w): | Per The Capacity |
| Voltage: | 220V/380V | Warranty: | 12 Months |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Dimension(l*w*h): | Adjustable | Material: | SUS304 |
| High Light: | SUS304 Tomato Production Line,Food Grade Tomato Production Line,Customized Tomato Processing Machine |
||
Product Description
Advanced Manufacturing Technology 304SUS Tomato Production Line 100T/D
Product description of tomato processing plant
Tomato processing lines have the capability to transform fresh tomatoes into a diverse range of end products, including tomato paste, ketchup, and tomato juice. The entire tomato processing line encompasses a comprehensive process that begins with the reception of fresh tomatoes and concludes with the production of aseptic bagged barrels.

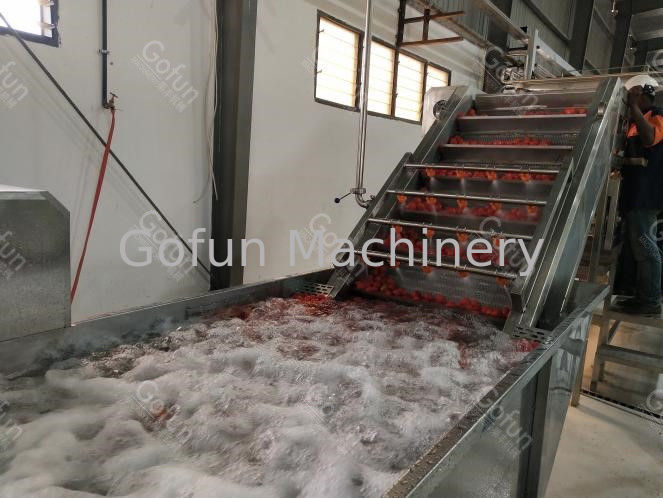

The process commences with the arrival of fresh tomatoes, which then undergo washing and sorting procedures to ensure the highest quality. Subsequently, the tomatoes go through various stages such as crushing, refining, and concentration to achieve the desired consistency and flavor.
The tomato processing line comprises several key components, including the fresh tomato receiving system, washing system, sorting system, crushing system, pulping and refining system, filtration system, concentrating system, sterilizing system, and aseptic filling system. Through this process, tomato sauce is obtained and filled into sterile bags within a roller drum.
The aseptic bagged tomato sauce can be further utilized to produce ketchup, sauce, and fruit juice. These products can be packaged in a variety of formats such as sachets, stand-up pouches, metal cans, PP containers, bottles, or gable tops.
Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:
- Technical consultation
- Customized proposal design
- Equipment manufacturing
- Installation commissioning and training at the site
- 1- year after-sales guarantee
- Life-long service
- Package design & Purchasing
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
The tomato processing lines have the capability to handle various raw materials, including fresh tomatoes and tomato paste, among others. These raw materials can be transformed into a wide range of final products, such as tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, and whole peeled tomatoes.
The final packaging includes aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, gable tops, etc.
After-Sales Service
1.debugging equipment
2.Oversea technical support
3.Oversea equipment maintenance
4.English speaking engineers available to provide technical support
Our Services for tomato processing plant
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
