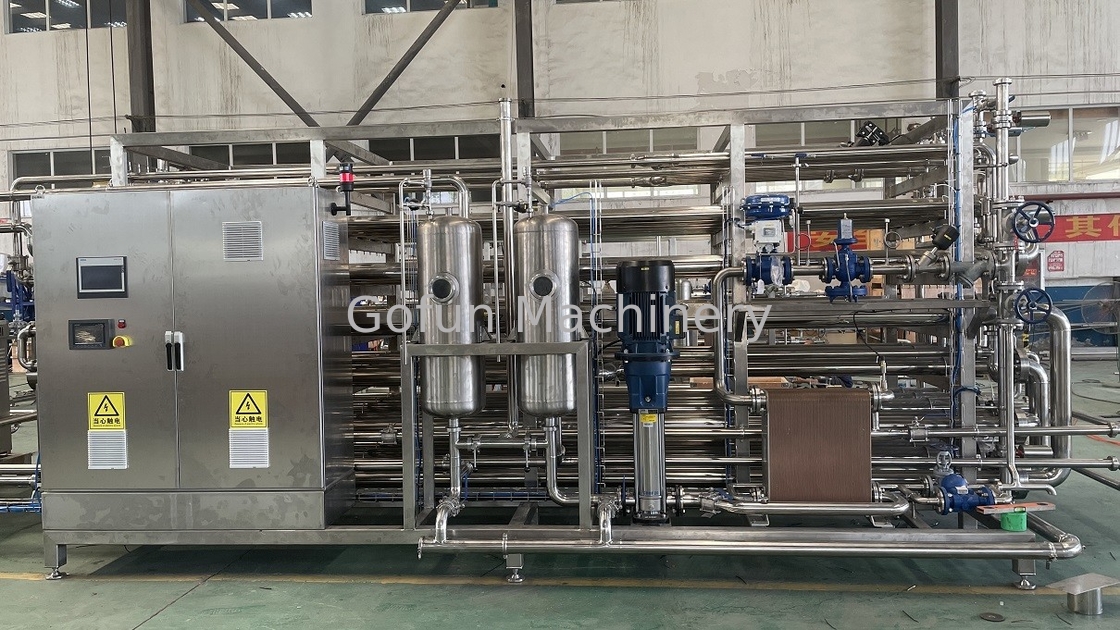

Juice / Dairy / Beverage / Syrup Tubular Sterilizing Machine 304 Stainless Steel
Product Details:
Place of Origin: | Shanghai |
Brand Name: | Gofun |
Certification: | CE, ISO |
Model Number: | GFM-SS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Delivery Time: | 60 days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per year |
Detail Information |
|||
Material: | 304/316 Stainless Steel | Application: | Juice, Jam |
---|---|---|---|
Voltage: | 380V, Customized | After-sales Service: | Engineers Available To Service Machinery Overseas |
Capacity: | 60 T/d, 150 T/d, 250 T/d, 1500 T/d, Customized | Function: | Juice, Jam, Puree, Pulps Packaging Processing Line |
Feature: | High Efficiency | Usage: | Industrial Usage |
Product Name: | Aseptic Packaging Processing Line | Type: | Ultra High Temperature |
Warranty: | 1 Year | Condition: | New |
High Light: | 304 Stainless Steel Tubular Sterilizing Machine,Beverage Tubular Sterilizing Machine,Dairy Tubular Sterilizing Machine |
Product Description
Juice/ Dairy/ Beverage/ Syrup Tubular Sterilizing Machine 304 Stainless Steel
Description
Our state-of-the-art automatic tubular sterilizer is a result of our in-house development, combining advanced technology from abroad with our extensive industry experience. This versatile equipment is widely used for sterilizing liquid foods such as fruit juices, purees, tea drinks, and milk. With its cutting-edge technology, this equipment ensures efficient sterilization while preserving the nutritional content of the products.
The Tube in Tube Type Sterilizer is specifically designed to handle concentrated pastes and high-viscosity materials. It features a four-layer casing structure and utilizes heated water as the medium for instant heating and sterilization of the material. After sterilization, cooling water or ice water is rapidly circulated to cool down the processed material. The heat exchange medium flows within the innermost two layers and the outermost layer of the tube, maximizing the heat exchange area and efficiency. This ensures a uniform internal temperature of the material, resulting in thorough sterilization.
The advanced design of our tubular sterilizer guarantees precise control over the sterilization process, maintaining the quality and safety of the liquid food products. The equipment is equipped with automated controls and monitoring systems, allowing for easy operation and ensuring consistent and reliable sterilization results.
In addition to its sterilization capabilities, our tubular sterilizer also offers flexibility in handling different types of liquid foods. It can accommodate various product viscosities and concentrations, making it suitable for a wide range of applications in the food and beverage industry.
With our automatic tubular sterilizer, you can trust that your liquid food products will undergo effective sterilization, eliminating harmful microorganisms while retaining their nutritional value. This equipment is a testament to our commitment to innovation and delivering high-quality solutions for food processing and preservation.
.
Construction
Advantages
Tubular sterilizers are capable of heat recovery and cooling of materials at the same time. Sufficient heat can be recovered in the preheating section and the sterilization section. This sterilization equipment uses multi-stage heating, sterilization and cooling of liquid or slurry materials to improve the efficiency of thermal energy usage.
Throughout the sterilization process, material temperature is controlled in a fully automated manner. The tubular sterilizer allows the discharge temperature to be controlled according to the user's needs, and the temperature can be adjusted to the value required by the sterilization filling machine.
Company Information
Our Service
1. Technical support
2. Marketing proposal
3. Final packaging proposal and design
4. Factory construction and design
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technique support
