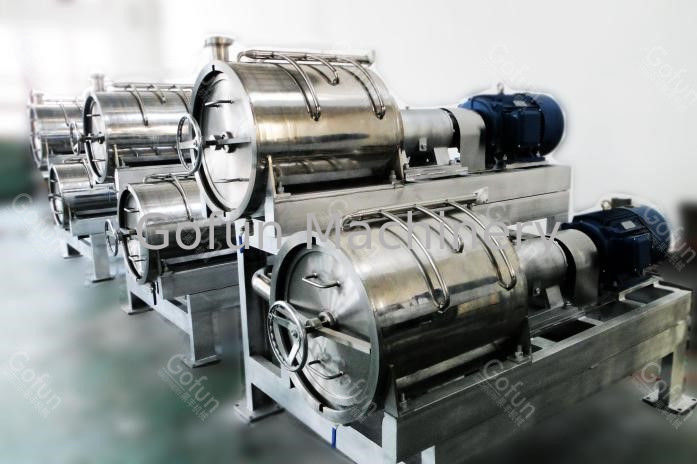

380V Fully Automatic Tomato Paste Processing Machine Water Saving For Factory

380V Fully Automatic Factory Tomato Paste Processing Water Saving

Product description of tomato processing plant

The tomato production line is capable of manufacturing various finished products using fresh tomatoes, including popular items like ketchup, tomato sauce, and tomato paste. It also includes a tomato juice production line with an aseptic tank for processing fresh tomatoes into the final product.

The configuration of the production line typically consists of the following components: a new tomato picking system, cleaning systems, sorting systems, grinding systems, filtration and purification systems, concentration systems, sterilization systems, and aseptic filling systems. This process results in the production of clean ketchup, which can be packaged in bags, buckets, stand-up bags, metal cans, PP containers, bottles, or other suitable packaging options.

The video below is our 5T/H tomato sauce project in Uganda, please refer to it

The production line is versatile and can produce aseptic ketchup bags for various purposes, including ketchup, sauce, and juice. The packaging options available include stand-up bags, metal cans, PP containers, bottles, and sprockets, among others.

Gofun can not only provide tomato processing equipment to factories, but also provide complete solutions from A to Z, including:

• technical advice
• custom solution design
• equipment manufacturing
• Installation, commissioning and on-site training
• 1 year after-sales warranty
• lifetime service
• Design and supply of packaging

​

Main parameters of tomato production line

Final products & Package types for tomato project

Shanghai Gofun machinery company offers all kinds of the tomato processing line.

Raw products are raw tomatoes, tomato paste, etc., and finished products are ketchup, ketchup, ketchup, tomato juice, tomato powder, peeled whole tomatoes, etc.

Final packaging includes sterile bags, canisters, envelopes, block bottoms, PP containers, glass bottles, PET gable bottles, etc.

Main features of the tomato processing line

The tomato processing line is the key product of Shanghai Gofun machinery company. We served more than 20 countries in the past 16 years. We keep providing high-quality machines and services to food manufacturers all over the world.

1. The daily capacity of fresh fruit processing can be tailored according to specific requirements, ranging from 60 tons to 1500 tons.
2. Tomatoes can be processed through hot crushing or cold crushing methods, offering flexibility in production techniques.
3. The Brix level of the final tomato paste can be customized to meet individual customer preferences. Typically, it is set at either 28-30% or 36-38%.
4. To ensure extended shelf life and cost-effective transportation and storage, the final tomato paste is filled into aseptic bags within drums. This packaging method allows for a two-year shelf life at normal temperatures.
5. All materials utilized in the production line adhere to food standards and are constructed from food-grade stainless steel, specifically SUS304 or SUS316. These materials fully comply with food hygiene and safety regulations.
6. In addition to aseptic bag filling, we offer a range of packaging options, including metal cans, small sachets, stand-up pouches, glass jars, and PET/PP containers, among others.
7. The production line incorporates key components sourced from globally recognized brands. For instance, the steam valves are supplied by Spirax Sarco, and the PLC system is provided by Siemens, guaranteeing superior quality and reliability.
8. The overall design of the production line is optimized to be compact, efficient, and energy-saving. It ensures stable operation, high productivity, and minimizes steam consumption.
9. The operation of the production line is user-friendly and straightforward. Dedicated platforms are installed in the feeding and maintenance areas to enhance operator safety during these tasks.
10. Waste generated during the production line can be effectively processed into fertilizer, presenting an environmentally friendly waste management solution.
