Tomato Processing Line
>
|
|
| Place of Origin | Shanghai |
| Brand Name | Gofun |
| Certification | ISO, CE certification |
| Model Number | GFM-TPL |
Advanced Manufacturing Technology 304SUS Tomato Production Line 100T/D
Product description of tomato processing plant
The tomato processing line is specifically designed to convert fresh tomatoes into a range of final products, which include well-known items like tomato paste, tomato sauce, ketchup, and tomato juice. This processing line comprises various crucial components, including a system for receiving fresh tomatoes, a system for washing them, a sorting system, a crushing system, a pulping and refining system, a filtration system, a concentrating system, a sterilizing system, and an aseptic filling system. By following this series of steps, we are able to produce tomato paste that is packaged in aseptic bags contained within drums.
Furthermore, the tomato paste in aseptic bags can undergo further processing to create tomato ketchup, sauces, and juice. These products can be packaged in sachets, stand-up pouches, metal cans, PP containers, bottles, gable tops, and other suitable packaging formats.
Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

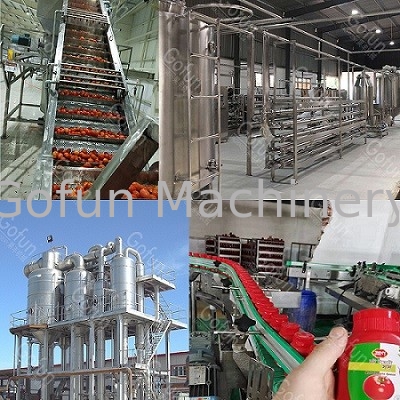

Case photos
Features
1. Low price and high cost-effectiveness: The price is the most favorable among peers for the same quality.
2. Quality and reliability: The equipment complies with international standards and certifications, such as ISO certification, etc.
3. Adaptability and flexibility: The flexible production line can handle tomato products of different specifications, packaging and processing methods.
4. Energy efficiency: Consider choosing energy-efficient equipment to reduce energy costs and reduce dependence on energy.
5. Local adaptability: Ensure that the equipment adapts to the local environment and working conditions. Select equipment appropriate for the region, taking into account factors such as climate conditions, power supply, equipment size, and equipment installation requirements.
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
The raw material can be fresh tomato, tomato paste, etc. And the final product can be tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomato, etc.
For the final package, it can be an aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.
company proflle
Gofun is the professional manufacturer in China with 16 years experience. Our main business includes:
We offer a comprehensive range of fruit and vegetable separation equipment to support various processing stages. This includes equipment for cleaning, sorting, crushing, pulping, refining, evaporation, sterilization, filling, packaging, pasteurization, high-pressure processing (HPP), and more.
Our expertise extends to providing complete fruit processing plants tailored to specific needs. We specialize in designing and delivering processing plants for various fruits, including tomato, tropical fruits like mango, pineapple, guava, passion fruit, papaya, as well as common fruits like strawberry, apple, pear, peach, apricot, and more.
Our offerings include complete filling line solutions for a wide range of packaging formats. Whether it's aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, gable tops, or other packaging options, we can provide the entire plant setup to meet your packaging requirements.
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technical support
Our Services for tomato processing plant
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
