Energy-efficient and high-quality Apple Juice Processing Line
  • Energy-efficient and high-quality Apple Juice Processing Line
  • Energy-efficient and high-quality Apple Juice Processing Line
  • Energy-efficient and high-quality Apple Juice Processing Line
  • Energy-efficient and high-quality Apple Juice Processing Line
  • Energy-efficient and high-quality Apple Juice Processing Line
  • Energy-efficient and high-quality Apple Juice Processing Line
Energy-efficient and high-quality Apple Juice Processing Line

Energy-efficient and high-quality Apple Juice Processing Line

Place of Origin Shanghai, China
Brand Name Gofun
Certification CE, ISO
Model Number GFM-APL, GFM-PPL
Product Details
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
220/380/440V, According To Customers
Certification:
CE/ISO9001
Type:
Turnkey Processing Line
Material:
Food Standard SUS 304, 316, Accourding To Customer
Capacity:
20T/day ~ 1500T/day, According To Customers
Application:
Apple, Pear
Product Name:
Apple/pear Juice Processing Line
End Products:
NFC Juice, Cloudy Juice, Clear Juice, Concentrate Juice, Beverage
Special Process:
HPP (high Pressure Processing), UHP (ultra-high Pressure Processing)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
International standard package for shipping
Delivery Time
45~90 days
Payment Terms
T/T,Western Union,L/C
Supply Ability
20 sets per year
Product Description
Apple jam processing plant dedicated juice and jam concentrate extraction production line
The Apple Juice Processing Line is engineered with dual-compatibility for apple and pear processing, and it outperforms peers in four core competitive advantages: first, it delivers exceptional operational efficiency to cut down production cycle times; second, it integrates innovative water-conserving technologies that slash freshwater consumption by up to 30%—a green upgrade that lowers operational costs; third, it boasts industry-leading juice extraction rates to maximize the utilization of raw materials and boost yield; fourth, it adheres to rigorous safety protocols to ensure both product quality compliance and operator well-being.
We provide one-stop processing and packaging integrated solutions, with customizable daily processing capacities ranging from 10 to 1500 tons. As a highly adaptable and scalable system, our Apple Juice Processing Line is perfectly suited for both small-scale workshops and large-scale industrial complexes. Whether you opt for advanced low-temperature pressing techniques to lock in the natural flavor of the juice, or prefer a cost-effective equipment configuration to fit your budget, our team works closely with customers to tailor solutions that address your unique production requirements.
Technical Specifications
Product Name One-stop solution for apple processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh apple
End Products Apple pulp, apple puree, apple juice, apple jam, dry apple and more
Final Product Brix 10%~12%
Final Packaging Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operators Required About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Key Advantages Energy-saving, High efficiency, Water-saving, Stable performance
Production Process Overview
1Discharge Platform
Fresh apples are unloaded from trucks using a dedicated platform with water guns and transported to the production line via water flow. This area also serves as a pre-washing station before processing begins.
2Elevator
Transports fresh apples from external receiving areas into the processing facility.
3Washing
Fresh apples undergo thorough cleaning before skin and seed removal. Additional cleaning stages, including ultrasonic and ozone cleaning, can be integrated for enhanced sanitation.
Energy-efficient and high-quality Apple Juice Processing Line 0

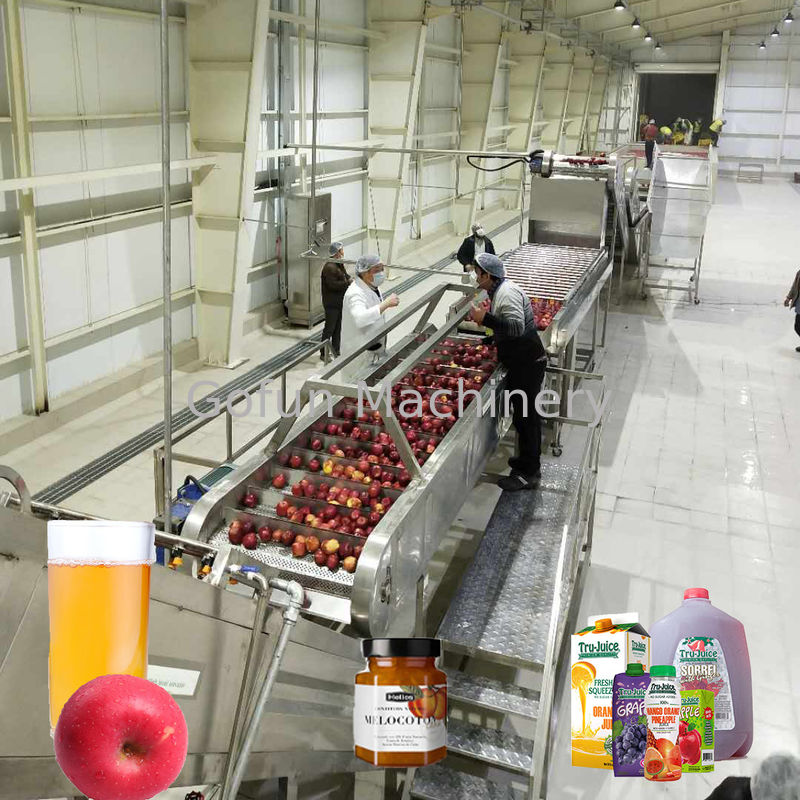

4Sorting
After washing, apples are visually inspected by operators to identify and remove any defective fruit, ensuring only quality produce proceeds to processing.
Energy-efficient and high-quality Apple Juice Processing Line 1 Energy-efficient and high-quality Apple Juice Processing Line 2
5Crushing
GFM-FC series crushers utilize advanced technology for high-precision crushing of apples and other fruits. This fine grinding process enhances the efficiency of subsequent processing stages.
Energy-efficient and high-quality Apple Juice Processing Line 3
6Preheating
Crushed material is heated to temperatures between 45°C and 85°C. This step improves juice yield in subsequent extraction while preserving color and flavor characteristics.
Energy-efficient and high-quality Apple Juice Processing Line 4
7Belt Type Juice Extractor
Advanced belt press technology delivers high-efficiency juice extraction with over 70% yield. Features energy-saving design and automated control for optimal performance.
Energy-efficient and high-quality Apple Juice Processing Line 5
8Sterilizing
Tube sterilizers process apple puree and applesauce at ultra-high temperatures (approximately 115°C for 30 seconds) followed by immediate cooling. This preserves taste and nutritional content while ensuring product safety.
Energy-efficient and high-quality Apple Juice Processing Line 6 Energy-efficient and high-quality Apple Juice Processing Line 7
9Aseptic Filling
Closed-loop aseptic filling systems work in conjunction with sterilizers. The filling chamber maintains vapor protection and sterile conditions, with mirror welding technology ensuring clean, smooth surfaces. Includes CIP and Auto SIP capabilities for various packaging formats.
Energy-efficient and high-quality Apple Juice Processing Line 8 Energy-efficient and high-quality Apple Juice Processing Line 9
10Storage or Blending
Finished products can be stored directly or used as raw materials for further processing into apple sauce, ketchup, or other value-added products.
Energy-efficient and high-quality Apple Juice Processing Line 10
