Food Standard SUS 304 Apple Processing Line Cold Press Fruit Juice Processing Line
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Gofun |
| Certification: | CE, ISO |
| Model Number: | GFM-APL, GFM-PPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 45~120 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 20 sets per year |
|
Detail Information |
|||
| Warranty: | 1 Year | Voltage: | 220/ 380/ 440V, According To Customers |
|---|---|---|---|
| Material: | Food Standard SUS 304, 316, Customize | Capacity: | 20T/day ~ 1500T/day, Customize |
| Application: | Apple, Pear, And Others | Product Name: | Cost-Effective Apple Processing Line Cold Press Fruit Juice Processing Line |
| Final Products: | NFC Juice, Clear Juice, Concentrate Juice, Beverage | Sterilizing Type: | UHT (ultra-high Temperature Processing) |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power(w): | 7.5kw |
| Condition: | New | ||
| High Light: | 380V Cold Press Apple Processing Line,Food Grade SUS304 Apple Production Line,Customized Apple Juice Processing Line |
||
Product Description
Cost-Effective Apple Processing Line Cold Press Fruit Juice Processing Line
Project Description

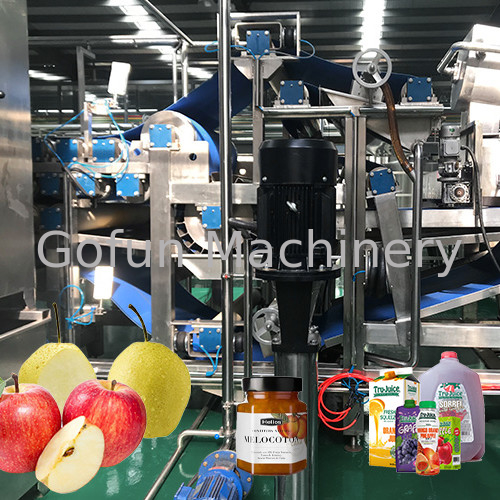

The apple and pear processing lines are designed to produce a wide range of final products from fresh apples and pears. These products include clear fruit juice, cloudy fruit juice, beverages, purees, and jams. The packaging options available for these products are aseptic bags, sachets, standing pouches, metal cans, PP containers, PET bottles, glass bottles, and gables. Apple and pear products are highly popular worldwide due to their delicious taste and nutritional value.
Shanghai Gofun offers a comprehensive range of apple and pear juice processing machines that enable the production of high-quality products while maintaining controlled costs. The Gofun belt press extractors are designed to maximize juice yields and minimize sedimentation, resulting in high-quality fruit and vegetable juices. The electronic monitoring and control system ensures easy operation and reliable performance of the machinery.
In addition to providing top-notch processing equipment, Gofun also offers comprehensive engineering services, installation supervision, commissioning support, and operator training. This ensures that workers are well-equipped to operate the advanced machinery and successfully complete the entire fruit production process.
| Raw material | Fresh apple & pear |
| End product | Cloudy juice, clear juice, pulper, concentrate juice |
| Processing capacity | From 20 T/day to 1500 T/day |
| Efficient input | 75% raw fruit (25% as waste, peels, and seeds) |
| Fruit consistency | 10-12% Brix |
| Product consistency | 70~72Brix for concentrated juice |
| End package | Aseptic bag, metal can, glass bottle, PET bottle, etc. |
Features
| Bubble washing machine |
① Totally made by SUS304 Stainless Steel. ② Produce water bubbles by air blower to wash fresh tomatoes. |
| Fruit Sorting Machine |
|
|
Fruit Crusher
|
① Totally made by SUS304 Stainless Steel. ② It combines Italian technology and conforming to Euro-standard. ③ It is much useful for crushing many kinds of fruits or vegetables. |
| Tubular type Pre-heater |
① Totally made by SUS 304 Stainless Steel. ② It is used to improve the juice yield and protect the color of the product. |
| Pulping & Refining |
① Totally made by SUS304 Stainless Steel. ② It combines Italian technology and conforming to Euro-standard. |
| Force-Circulation Evaporation |
① Totally made by SUS304 Stainless Steel. ② It combines Italian technology and conforming to Euro-standard. ③ We have single-effect, double-effect, triple-effect, and multi-effect evaporators for choice. |
| Tube-in-tube Sterilizer |
① Totally made by SUS304 Stainless Steel. ② It combines Italian technology and conforming to Euro-standard. ③ According to different productss and requirements, we have a Tubular sterilizer, Tube-in-tube sterilizer. |
| Aseptic Bag Filling |
① Totally made by SUS304 Stainless Steel. ② It combines Italian technology and conforming to Euro-standard. ③ Suitable for filling aseptic bags of different sizes. |
Advantages
The apple and pear processing line from Shanghai Gofun machinery company is running with high effective, water-saving, high extracting rate, safety quality control for the final product, safety control for operators, etc.
Flowchart
Apple/Pear Juice Processing Line
CLEAR JUICE: FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
CLOUDY JUICE: FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ EXTRACTING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Related Machine
Company Information
Gofun Company offers comprehensive turnkey solutions not only for tomato paste production lines but also for processing and packaging lines for various fruits and vegetables such as apples, pears, peaches, mangoes, apricots, and more. With a wide range of customers in both domestic and international markets, Gofun has gained acclaim for its high-quality machines.
The company's machines have been exported worldwide, reaching Asian countries, African countries, South American countries, as well as European and American countries. Gofun Company is dedicated to producing excellent food machines and contributing to the advancement of global agriculture. Their aim is to foster mutually beneficial relationships and create great prospects with individuals and friends from all around the world.
Our Services
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technical support
