SUS 316L Mango Jam Juice Processing Machine 10 - 100T/D Turnkey Service
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Gofun |
| Model Number: | GFM-MPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | International standard package for shipping |
| Delivery Time: | 45~90 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 sets per year |
|
Detail Information |
|||
| Certification: | CE/ISO9001 | Condition: | New |
|---|---|---|---|
| Material: | 304/316L | Capacity: | 10T/D To 200T/D |
| Product Name: | Fresh Fruits Making Machine | Name: | Best Price Fruit Processing Line Mango Pulp Production Line |
| Usage: | Food Processing | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 220V/380V |
| Function: | Multifunctional | ||
| High Light: | 100T/D Juice Processing Machine,SUS 316L Juice Processing Machine,Mango Jam Juice Processing Machine |
||
Product Description

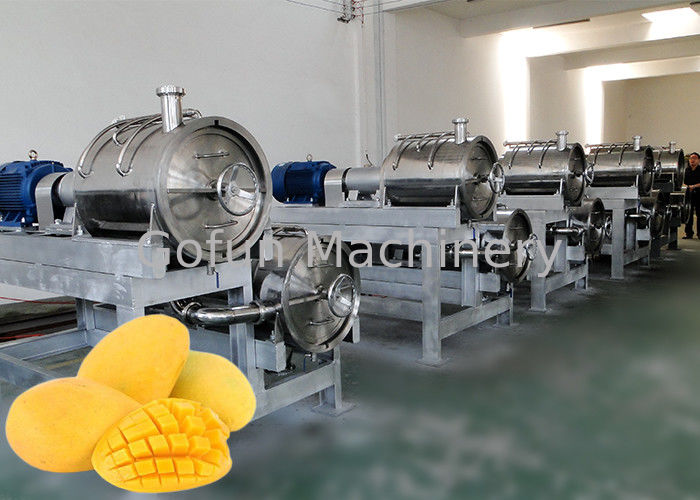

SUS 316L Mango Jam Juice Processing Machine 10-100T/D Turnkey Service
Product description of the mango processing line
The mango processing production line is a comprehensive system that allows for the production of various finished products using fresh mangoes. Some of the common products that can be obtained from this line include mango juice, mango puree, mango concentrate, dried mango, mango slices, and mango jam.
The production line consists of several key components that work together to process the mangoes and create the desired products. It starts with a fresh mango receiving system, where the mangoes are collected and inspected for quality. The mangoes then undergo a thorough washing system to remove any dirt or impurities.
Next, a sorting system is employed to separate the mangoes based on size, ripeness, and quality. This ensures that only the best mangoes proceed to the next stage. The sorted mangoes are then destoned to remove the pit or seed, making them ready for further processing.
The preheating system is utilized to raise the temperature of the mangoes slightly, which helps in the pulping and refining process. The mangoes are then pulped and refined to extract the juice and pulp, creating a smooth and consistent mango base. This step is carried out in the pulping and refining system.
The mango base goes through a filtering system to remove any remaining solids or fibers, resulting in a clear and pure mango product. The filtered mango product is then concentrated using a concentration system to reduce its water content and intensify the flavor.
Sterilization is a crucial step in the production line to ensure the safety and extend the shelf life of the mango products. The concentrated mango product is sterilized using a sterilization system, which eliminates harmful bacteria and microorganisms.
Finally, the aseptic filling system fills the sterilized mango products into sterile packaging containers, such as bags or aseptic bags. These containers help maintain the product's quality and allow for easy storage and transportation.
The mango puree or concentrate can be used in various applications, including mango juice beverages, sauces, and different packaging options such as bag packaging, metal cans, aluminum cans, PP containers, plastic bottles, glass jars, and shaped tops.
Gofun not only provides tomato processing equipment for your factory, but also can provide a one-stop solution from A to Z, including:
- technical consulting
- Personalized Quote Design
- Equipment manufacturing
- On-site commissioning and training
- 12 months after-sales service warranty
- Enjoy lifelong service
- package design and purchase
Main parameters of the mango production line
| Product name: | One-stop solution for mango processing line |
| Fresh fruit inlet capacity: | 500kg per hour ~ 25 tons per hour, customized |
| Raw material: | Fresh mango |
| End product: | Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage |
| Final product Brix: | 14%~20% |
| Final package: | Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard) |
| Advantages: | Energy-saving, High efficiency, Water-saving, Stable performance |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for the mango project
Shanghai Gofun machinery company offers all kinds of mango processing line.
Raw materials for mango processing include fresh mangoes. Depending on the processing method and requirements, the mango may need to be peeled, cored or cut into chunks, puree or pulp.The final products of mango processing include: mango juice, mango puree, mango concentrate, dried mango,sliced mango,mango sauce,Other mango products, etc.
Final packaging can be aseptic bags, metal boxes, small bags, stand-up sachets, PP containers, glass bottles, PET bottles, gable tops, etc.
