Pineapple Processing Line SUS304 for Juice Puree
  • Pineapple Processing Line SUS304 for Juice Puree
  • Pineapple Processing Line SUS304 for Juice Puree
  • Pineapple Processing Line SUS304 for Juice Puree
  • Pineapple Processing Line SUS304 for Juice Puree
  • Pineapple Processing Line SUS304 for Juice Puree
  • Pineapple Processing Line SUS304 for Juice Puree
  • Pineapple Processing Line SUS304 for Juice Puree
  • Pineapple Processing Line SUS304 for Juice Puree
Pineapple Processing Line SUS304 for Juice Puree

Pineapple Processing Line SUS304 for Juice Puree

Place of Origin Shanghai, China
Brand Name Gofun Machinery
Certification ISO9001, CE
Model Number GFM-FPL-GPL
Product Details
Product Name:
Pineapple Processing Line / Production Equipment
Application:
Fresh Pineapple
End Products:
Pineapple Juice, Concentrated Juice, Beverage Dried Fruit, Etc
Packaging:
Aseptic Bag, Metal Can, Glass Bottle, PET Bottle, Etc.
Warranty:
One Year
Material:
SS 304, 316 Food Standard
Capacity:
1 ~ 20T/h, 15T/day ~ 1500T/day, According To Customers
After-sales Service:
Engineers Available To Service Overseas, Commissioning And Training
Voltage:
220V/380V
Condition:
New
Weight:
According To Model
Certification:
CE ISO
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
International standard packaging for shipping
Delivery Time
About 120 days after advanced payment
Payment Terms
T/T,L/C,Western Union
Supply Ability
30 sets per year
Product Description

Pineapple Processing Line SUS304 for Juice Puree

This pineapple processing line is configured specifically for juice and puree production, delivering consistent extraction rates and reliable food-grade construction for daily commercial operation.

Optimized for Pineapple Juice and Puree
Pineapple requires specific handling to maximize yield while controlling astringency and enzyme activity. This line incorporates a two-stage extraction approach: initial crushing followed by belt pressing to separate juice from fiber. For puree production, the system switches to a pulping configuration that retains fruit solids while removing core and peel residue. The result is a versatile line capable of switching between clear juice and textured puree with minimal changeover.

Material and Construction Standards
All product-contact components use SUS304 stainless steel, a globally recognized standard for food processing equipment. This material resists corrosion from fruit acids and withstands the sanitizing chemicals used in routine CIP procedures. Non-contact structural components are powder-coated carbon steel, providing durability without unnecessary cost.

Key Process Stages
The line covers washing (bubble and brush combined), inspection conveying, crushing, enzymatic treatment tank, belt pressing or pulping, juice collection, and pre-sterilization. Optional add-ons include vacuum degassing, aroma recovery, and concentration modules for extended product range.

Throughput and Compatibility
Standard configurations handle 5 to 30 tons of fresh pineapple per day. The system also processes other tropical fruits including mango, guava, and passion fruit with parameter adjustments, making it a practical choice for processors working with multiple seasonal crops.

What You Receive
Complete equipment set, piping and valve assemblies, control cabinet with PLC, installation drawings, and operation manuals. Remote commissioning support is available.




Key Technological Highlights
  • Modular peeling/coring/slicing unit with efficiency ≥5 tons per hour
  • Optical sorting system with defect accuracy ≥99.2%
  • Low-temperature pasteurization (72°C/15s) providing 5-log sterilization
  • Vacuum instant concentration preserving over 85% of vitamin C
  • Non-thermal drying maintaining water activity below 0.65



Final Products
  • Canned Pineapple: ≥65% solid content for baking or ready-to-eat consumption
  • NFC Pineapple Juice: Turbidity stability exceeding 6 months for premium drinks
  • Freeze-Dried Granules: 1:4.5 rehydration ratio for cereals or snacks
  • Pineapple Jam: ≥68°Brix for baking or dairy applications
  • Fermented Wine: 12±1%vol for specialty markets
  • Probiotic Yogurt: ≥1*10^8 CFU/g for functional dairy products



Tailored Packaging Options
  • Aseptic cold filling (PET/Tetra Pak)
  • Nitrogen-filled packaging (≤0.5% residual oxygen)
  • Degradable stand-up bags (PLA composite material)



Technical Specifications
Raw Material Fresh pineapple
End Products Concentrated juice, clear juice, beverage, jam, dried fruit, etc.
Capacity 3 tons/day - 1500 tons/day (customizable)
Juice Yield 40-50%
Initial Sugar Content Approximately 14% Brix
Terminal Sugar Content 58-60 Brix
Product Packaging Aseptic bag, glass bottle, PET bottle, metal can, etc.
Key Features
  • High Processing Capacity: 20 T/day to 1500 T/day
  • Multiple Use: Processes fruits with similar characteristics
  • Automatic Disinfection Control: Ensures sterilization effectiveness and controls residue
  • High Output: Tubular pasteurizer improves pineapple yield
  • High Efficiency: Belt juice extractor enhances extraction efficiency
  • Energy-Saving: PLC-controlled process reduces labor intensity
  • Low-Temperature Vacuum Evaporation: Minimizes flavor and nutrient losses
  • Energy Recovery: Multiple measures improve energy utilization and reduce costs
  • Health & Safety: UHT sterilizer and aseptic filling ensure food safety and extended shelf life
  • Label-Saving: Integrated CIP system reduces labor and ensures hygiene

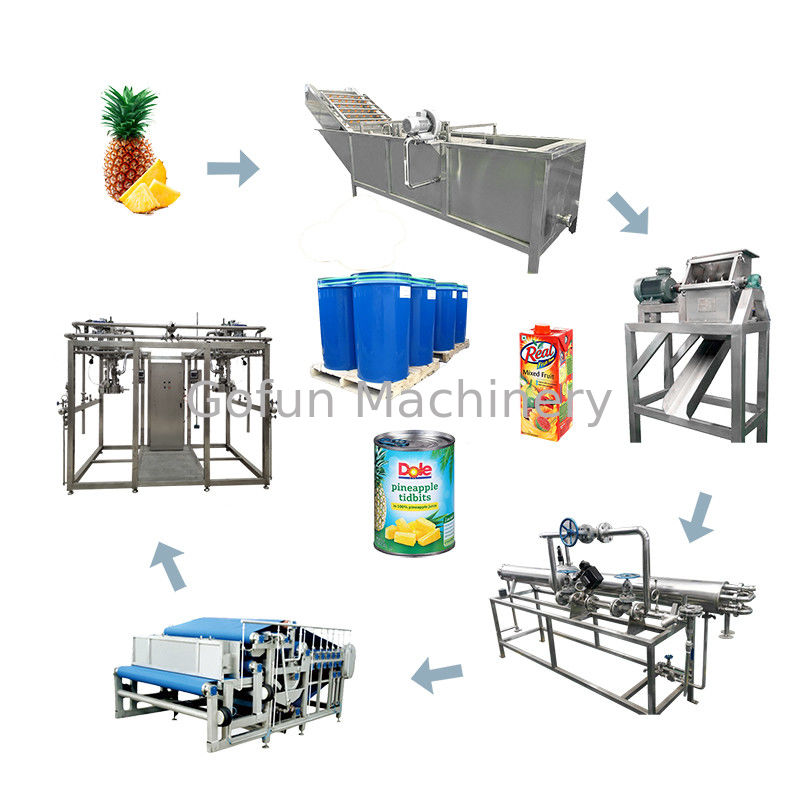

Process Flowcharts
Pineapple Juice Concentration Processing Line Diagram
Pineapple Juice Concentration Processing Line
FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ BELT TYPE JUICE EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Pineapple Juice Processing Line Diagram
Pineapple Juice Processing Line
FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ BELT TYPE JUICE EXTRACTING ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Pineapple Beverage Line Diagram
Pineapple Beverage Line
PINEAPPLE CONCENTRATION ⇒ BLENDING SYSTEM ⇒ STERILIZING ⇒ FILLING ⇒ PASTEURIZING TUNNEL ⇒ PACKAGING
Dried Pineapple Processing Line Diagram
Dried Pineapple Processing Line
FRESH PINEAPPLE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CUTTING ⇒ BLANCHING ⇒ DRYING ⇒ PACKING
Our Services
Pre-Sales Service
Our engineering team designs customized equipment lists tailored to your specific requirements, capacity needs, local voltage specifications, and workshop conditions. We consider all crucial factors including water supply, power supply, and steam requirements. All equipment is constructed from SUS304 stainless steel, and customers can visit our facility for equipment testing before shipment.
On-Purchase Service
All machines are manufactured according to contract specifications and drawings. After receiving full payment, we arrange shipment promptly with all exported machines packaged in wooden crates, including installation instructions.
After-Sales Service
Our engineers will install equipment at your workshop. We provide a one-year quality guarantee and lifelong service support.
