Industrial Tomato Paste Processing Line | Full Turnkey

Place of Origin	Shanghai
Brand Name	Gofun
Certification	CE, ISO certificate
Model Number	GFM-MPL

Product Details

Warranty:

12 Months

Certification:

CE/ ISO9001

Voltage:

220/380/440V, According To Customers

Power(w):

7.5kw

Type:

Turnkey Processing Line From A To Z

Material:

SUS304/ SUS316

Capacity:

1 T/h-20 T/h

Product Name:

Mango Dried Processing Machine

After-sales Service:

Oversea Technical Support

Application:

Mango

Condition:

New

Weight:

Customized

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

International standard package for shipping

Delivery Time

45~90 days

Payment Terms

T/T,Western Union,L/C

Supply Ability

100 sets per year

Product Description

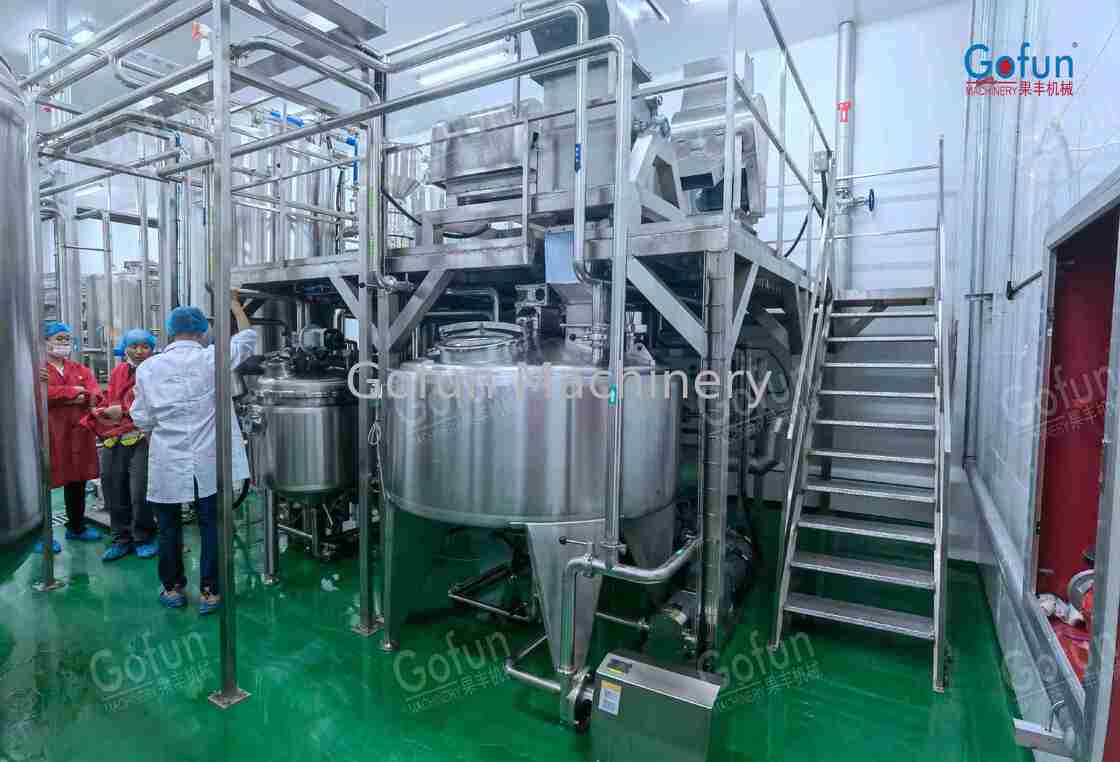

Industrial Tomato Paste Processing Line | Full Turnkey

This full turnkey industrial tomato paste processing line is purpose-built for B2B tomato processing factories that need stable, standardized mass production of high quality tomato paste. The complete workflow covers fresh tomato receiving, high pressure spray washing, manual sorting, crushing, preheating enzyme deactivation, multi-stage refining, vacuum concentration, UHT sterilization and aseptic filling, forming a fully closed continuous production system.
Different from scattered single-function machines that require repeated manual material transferring, this integrated line connects every processing step seamlessly, effectively reducing intermediate manual operation links and secondary contamination risk. The double-stage refining system separates tomato seeds and peel residue completely, ensuring the finished tomato paste has fine and smooth texture with no obvious coarse particles.
All parts contacting raw materials are made of food grade 304 stainless steel, fully compliant with international food safety hygiene standards. The PLC central control system can monitor every processing unit’s real-time operation data, automatically record raw material input, production yield, final paste Brix and equipment running status. Factory managers can check full production data remotely, greatly improving production management efficiency.
This tomato paste processing line supports daily fresh tomato processing capacity from 150 tons to 1500 tons. It can also be adjusted to produce onion paste, chili sauce and other similar fruit and vegetable pastes by replacing a small number of parts, bringing extra product flexibility for processing factories. We provide on-site installation guidance, systematic operator training and 12-month full after-sales warranty service.

Technical Specifications

Product Name	One-stop solution for mango processing line
Fresh Fruit Inlet Capacity	500kg per hour ~ 25 tons per hour, customized
Raw Material	Fresh mango
End Products	Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix	14%~20%
Final Package Options	Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material	Food grade SUS304 or SUS316
Warranty	12 months after commissioning
Operator Requirement	About 10~12 persons
Voltage	380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages	Energy-saving, High efficiency, Water-saving, Stable performance

Processing Flowchart

FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Final Products & Packaging Options

Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.

Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.

Key Features

Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services

Detailed Process Steps

1. Discharge Platform

Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.

2. Elevator

This machine transports fresh mango from outside the building to inside the processing facility.

3. Washing

Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy.

4. Sorting

Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line.

5. Destoning

Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency.

6. Preheating

Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste.

7. Pulper and Refiner

Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.

8. Horizontal Spiral Centrifugal

Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots.

9. Sterilizing

Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation.
